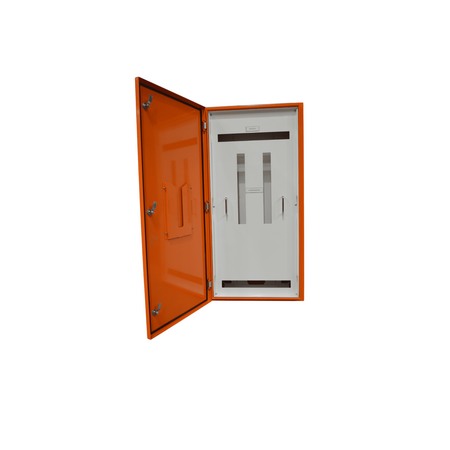

Distribution Board IP66 60P 250A 1000x600x200mm Orange Bovara

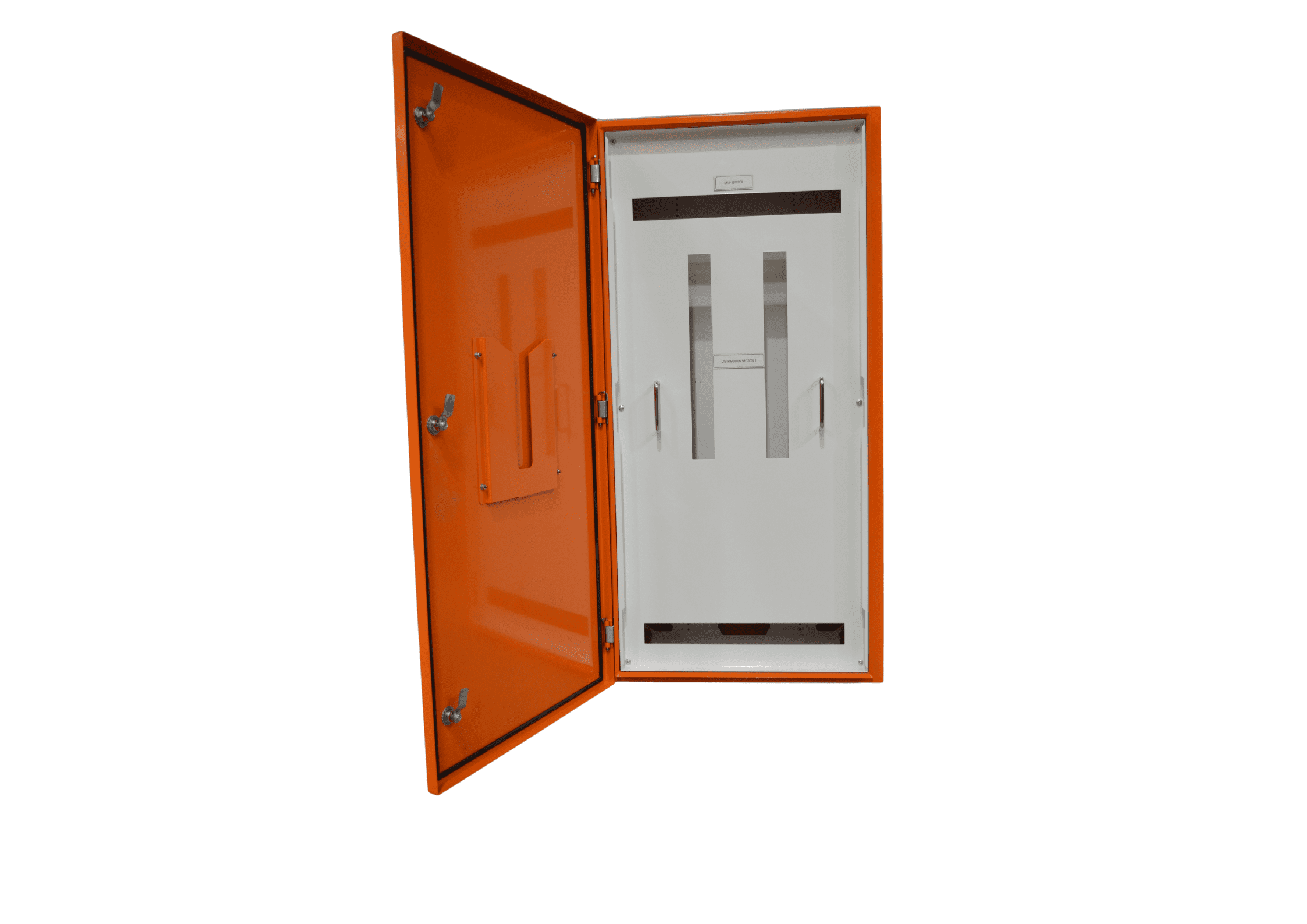

Bovara IP66 distribution board features 60 Pole chassis, 250A isolator, 1000H x 600W x 200D zinc anneal body, X15 orange gloss and two triangle quarter-turn locks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Electrical Switchboard Enclosure, 60-Pole Distribution Board, VAL Distribution Board Enclosure
Technical Specifications
- Model: DBC1C60
- Ingress Protection: IP66
- Rated Isolator: 250A
- Chassis Capacity: 60 poles
- Body Material: Zincanneal steel
- Finish: Orange X15 high-gloss powder coating
- Locking: Two triangle-key quarter-turn locks
- Cable Entry: Top and bottom
- Included Components: Earth bar and neutral bar
- Escutcheon Clearance: Accommodates devices up to 51 mm
- Compliance: AS/NZS 61439.2:2016
- Dimensions (H x L x W): 1000mm x 215mm x 600mm
- Weight: 30 kg
Key Features
- IP66 enclosure protection for indoor and outdoor electrical installations
- 60-pole chassis for larger distribution arrangements
- Integrated 250A isolator
- Durable zincanneal steel construction
- High-visibility orange X15 powder-coated finish
- Top and bottom cable entry provision
- Earth and neutral bars included
- Dual triangle-key quarter-turn locking system
- Internal lift-out escutcheons for easier equipment access
- Custom pre-wired configurations available
Professional Installation Requirements
- Installation, wiring, testing and commissioning must be performed by a licensed electrical contractor in accordance with AS/NZS 3000, AS/NZS 61439.2 and the manufacturer’s assembly requirements. The completed assembly must be verified before energisation.
Applications
- Commercial electrical distribution
- Industrial power distribution
- Building services and plant-room distribution
- Outdoor and weather-exposed switchboard installations
- Large residential and multi-unit electrical installations
- Custom pre-wired switchboard assemblies
Standards & Compliance
- AS/NZS 61439.2:2016 for low-voltage switchgear and controlgear assemblies
- AS/NZS 3000:2018 for electrical installations and wiring requirements
Environmental Benefits
- Zincanneal steel components are recyclable at end of service life
- Powder-coated steel helps resist corrosion and extend enclosure service life
- Durable, serviceable construction can reduce replacement frequency and material waste
- Included earth and neutral bars reduce the need for additional components and packaging
Warranty Information
Bovara does not publish a specific warranty period for this product in its available product information. Warranty coverage should be confirmed with Bovara or the authorised distributor; Australian Consumer Law rights apply.
Available Now
Available through authorised Bovara distributors in Australia.
