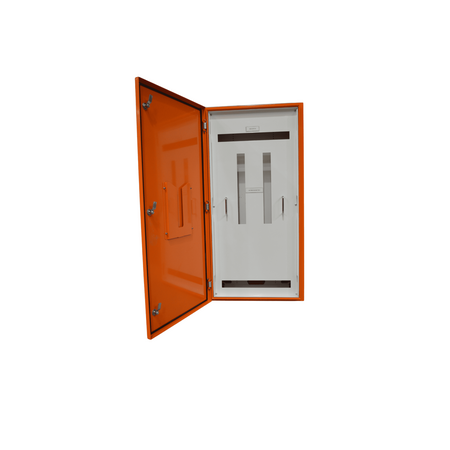

Distribution Board IP66 72P 250A 1200x600x200mm Orange Bovara

BRAND: Bovara Electrical Equipment
SKU: DBC1C72
$2,837.70 List price: $3,783.50
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access

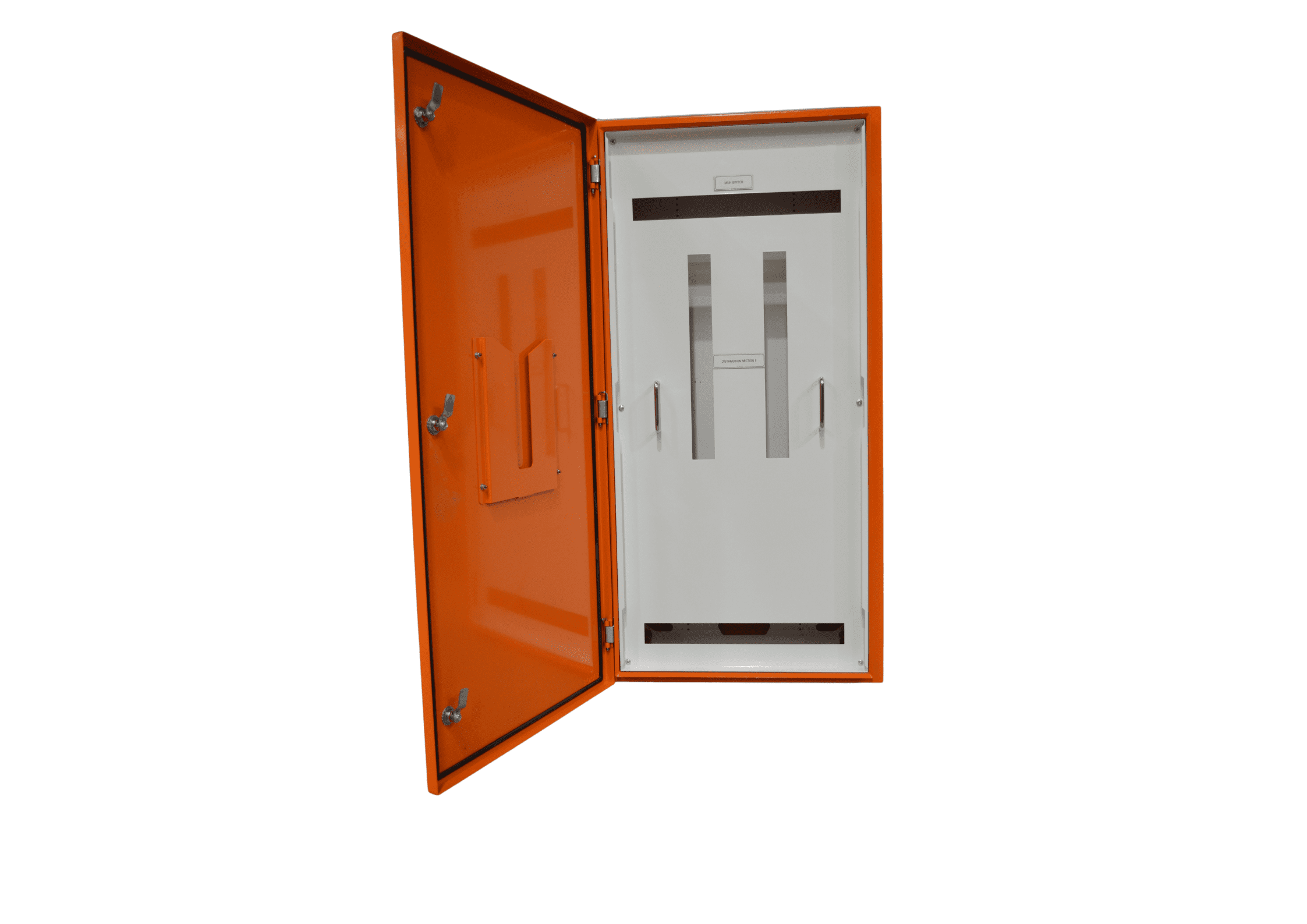

Bovara IP66 distribution board features 72 Pole chassis, 250A isolator, 1200H x 600W x 200D zinc anneal body, X15 orange gloss and two triangle quarter-turn locks.

Alternatively Known As: 72-Pole Distribution Board, 250A Switchboard Enclosure, IP66 Electrical Distribution Panel

Technical Specifications
  • Degree of Protection: IP66
  • Rated Current: 250A
  • Chassis Capacity: 72 poles
  • Main Isolator: 250A
  • Body Material: Zincanneal steel
  • Finish: X15 orange gloss powder coating
  • Locking System: Two triangle-key quarter-turn locks
  • Cable Entry: Top and bottom cable entry provisions
  • Earth and Neutral Bars: Included
  • Assembly Compliance: AS/NZS 61439.2:2016
  • Dimensions (H x L x W): 1200mm x 600mm x 215mm
  • Weight: 40 kg
Key Features
  • IP66 enclosure for protection against dust and powerful water jets
  • 72-pole chassis for commercial and industrial power distribution
  • 250A main isolator for high-capacity low-voltage distribution
  • Durable zincanneal steel construction
  • High-visibility X15 orange gloss powder-coated finish
  • Two secure triangle-key quarter-turn locks
  • Top and bottom cable entry provisions
  • Earth and neutral bars included
  • Internal lift-out escutcheons can be pre-cut for selected devices
Professional Installation Requirements
  • Installation, electrical connection and commissioning must be performed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and AS/NZS 61439.2.
Applications
  • Commercial electrical distribution
  • Industrial power distribution
  • Outdoor or exposed electrical installations
  • Main and sub-distribution switchboard assemblies
  • Large building and infrastructure projects
Standards & Compliance
  • AS/NZS 61439.2:2016 for low-voltage switchgear and controlgear assemblies
Environmental Benefits
  • Zincanneal steel construction and powder coating provide corrosion resistance and may extend service life
  • Steel enclosure components are recyclable at end of service life
  • Durable construction can reduce replacement frequency and associated material waste
Warranty Information

Bovara warranty terms are not publicly specified; confirm warranty coverage with an authorised Bovara distributor.

Available Now

Available through authorised Bovara distributors in Australia.
