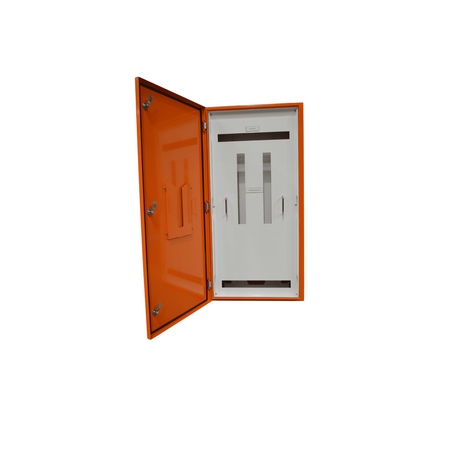

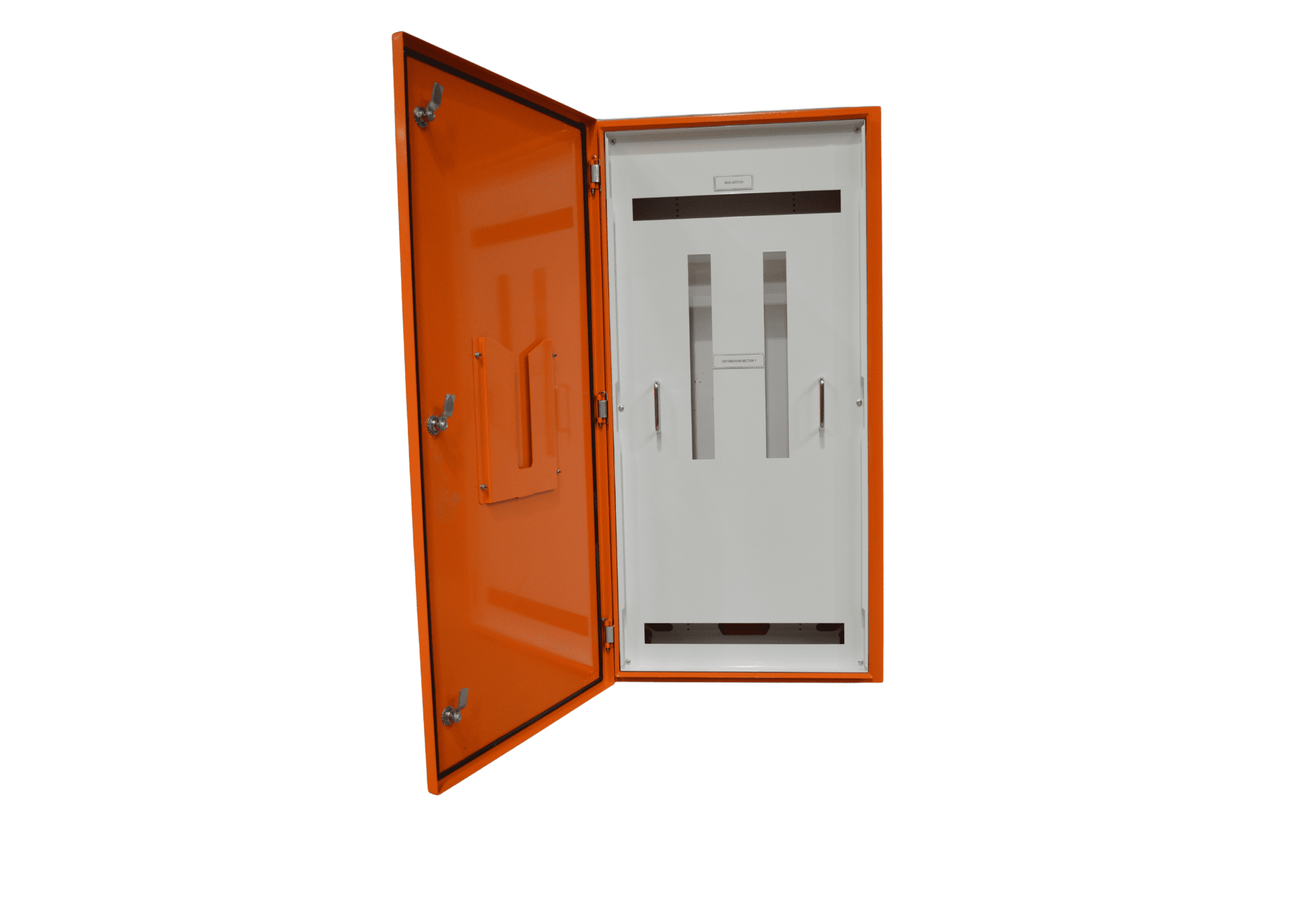

Distribution Board IP66 96P 250A 1600x600x200mm Orange Bovara
Bovara IP66 distribution board features 96 Pole chassis, 250A isolator, 1600H x 600W x 200D zinc anneal body, X15 orange gloss and two triangle quarter-turn locks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Distribution Board, 96-Pole Switchboard Enclosure, 250A Distribution Board, Electrical Distribution Board Enclosure
Technical Specifications
- Ingress Protection: IP66
- Chassis Capacity: 96 poles
- Main Isolator Rating: 250A
- Enclosure Material: Zincanneal steel
- Finish: Orange X15 gloss powder coating
- Locks: 2 triangle-key quarter-turn locks
- Cable Entry: Top and bottom entry provisions
- Earthing and Neutral: Earth and neutral bars included
- Escutcheons: Internal lift escutcheons suitable for pre-cutting
- Configuration: Custom pre-wired options available
- Manufacturer Compliance: AS/NZS 61439.2:2016
- Dimensions (H x L x W): 1600mm x 215mm x 600mm
- Weight: 60 kg
Key Features
- IP66 enclosure protection for indoor and outdoor electrical installations
- 96-pole chassis for high-capacity circuit distribution
- 250A isolator supplied as the main switching device
- Zincanneal steel body for durability and corrosion resistance
- Orange X15 powder-coated finish for visibility and surface protection
- Two triangle-key quarter-turn locks for controlled access
- Top and bottom cable entry provisions
- Earth and neutral bars included
- Internal lift escutcheons can be pre-cut to project requirements
Professional Installation Requirements
- Installation, termination and commissioning must be completed by a licensed electrician in accordance with AS/NZS 3000 and the applicable design-verification requirements of AS/NZS 61439.2. The completed assembly must be verified for its final configuration and installation environment.
Applications
- Commercial electrical distribution
- Industrial power distribution
- Construction and infrastructure projects
- Outdoor or harsh-environment switchboard installations
- Large circuit distribution requiring up to 96 poles
Standards & Compliance
- Manufacturer-stated compliance with AS/NZS 61439.2:2016 for low-voltage power switchgear and controlgear assemblies
- Electrical installation and commissioning should comply with AS/NZS 3000
Environmental Benefits
- Zincanneal steel construction can be recycled at the end of the product’s service life
- Durable powder-coated finish helps extend enclosure service life and reduce replacement waste
- Lockable, serviceable construction supports maintenance and longer equipment life
- Included earth and neutral bars can reduce additional component requirements and packaging
Warranty Information
Bovara does not publish a specific warranty period for this product. Warranty claims are subject to Bovara’s applicable sale terms and rights under Australian Consumer Law.
Available Now
Available through authorised Bovara distributors in Australia.
