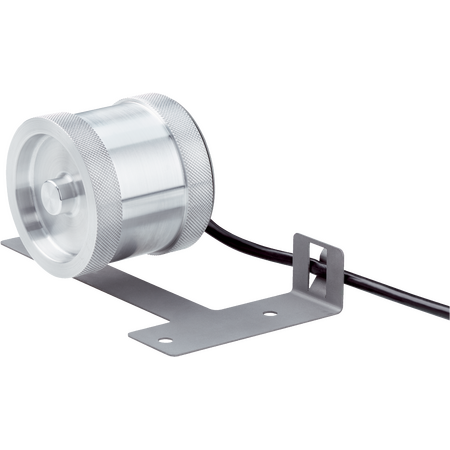

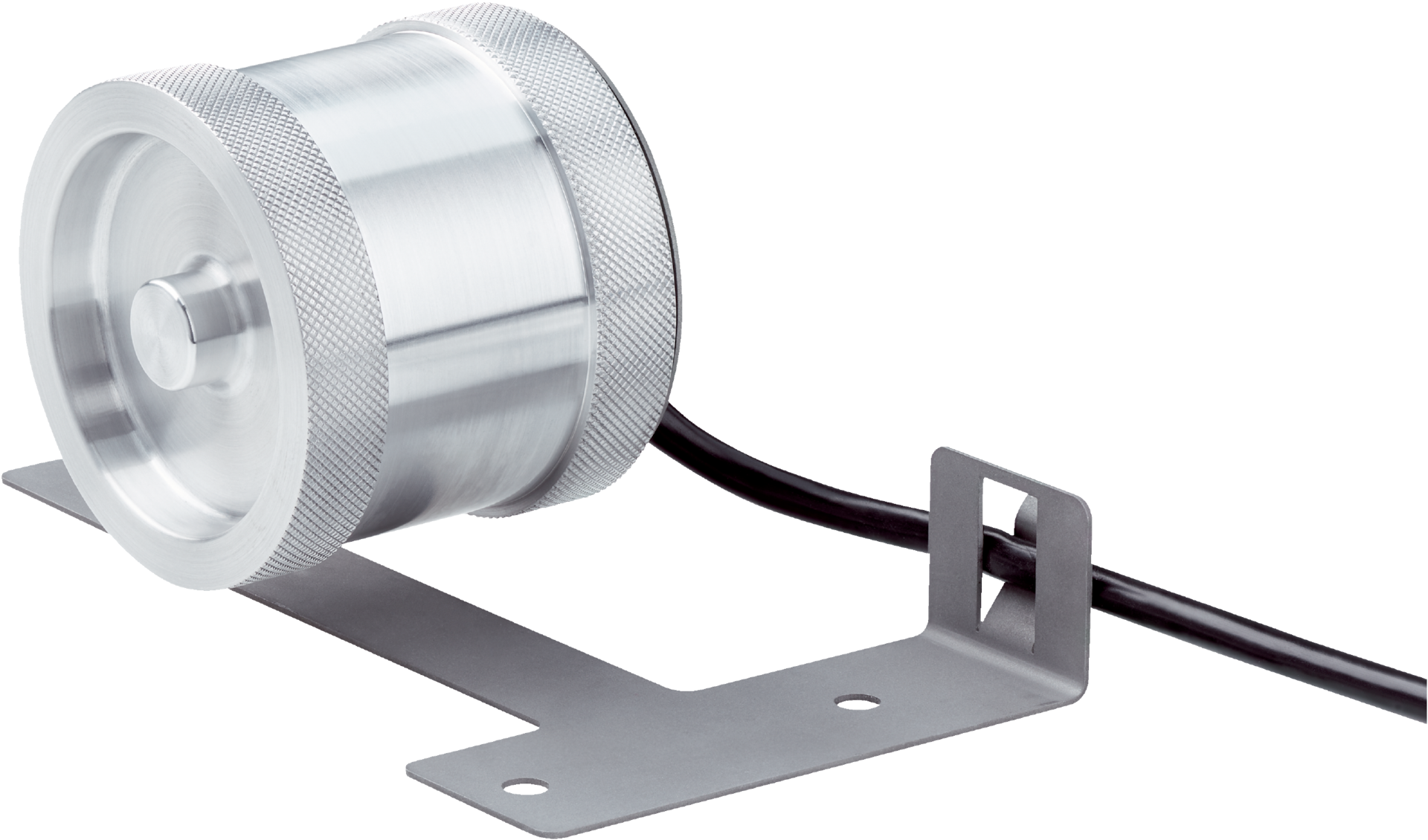

DKV60E-21EKA0020 | Measuring wheel encoders
The SICK DKV60E-21EKA0020 measuring wheel encoder offers precise incremental measurement with robust construction, ideal for industrial automation and position tracking applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DKV60E-21EKA0020 | Measuring wheel encoders
Brand: SICK
SKU: 1115702
Alternatively Known As: Measuring wheel encoder, incremental encoder, rotary encoder, position encoder, SICK encoder
Technical Specifications
- Pulses per revolution: 20
- Resolution: 0.1 pulses/mm
- Measuring increment: 10 mm/pulse
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: ±0.5 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: ≤ 3 ms
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Operating power consumption: 50 mA
- Supply voltage: 10 V to 30 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Measuring wheel circumference: 200 mm
- Measuring wheel surface: Cross knurled aluminium
- Spring arm length: 69.5 mm
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Operating speed: ≤ 1,000 min⁻¹
- Maximum operating speed: 1,500 min⁻¹
- Bearing lifetime: 2 x 10^9 revolutions
- Maximum spring arm deflection: 8 mm at 14 N spring travel
- Recommended pretension: 8 N at 4 mm deflection
- Maximum permissible working area for spring: ±1.5 mm
- Recommended spring deflection: 2 mm to 8 mm
- Connection type: 8-wire cable, 1.5 m length
- Enclosure rating: IP65
- Operating temperature range: -20°C to +60°C (extended to -35°C to +95°C on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 7 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 80mm x 150mm x 80mm
- Weight: 0.42 kg
Key Features
- 20 pulses per revolution with 0.1 pulses/mm resolution
- Incremental communication interface with HTL / Push pull
- 6-channel signal output
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +60°C (extended range on request)
- High shock and vibration resistance
- Reverse polarity protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper setup and safety compliance.
Applications
- Industrial measurement and automation
- Distance and speed measurement in conveyor systems
- Position tracking in manufacturing processes
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable materials and long bearing lifetime reduce replacement frequency and waste
- Low power consumption (50 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DKV60E-21EKA0020 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
