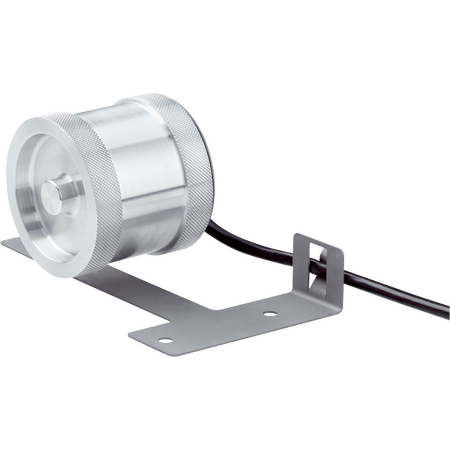

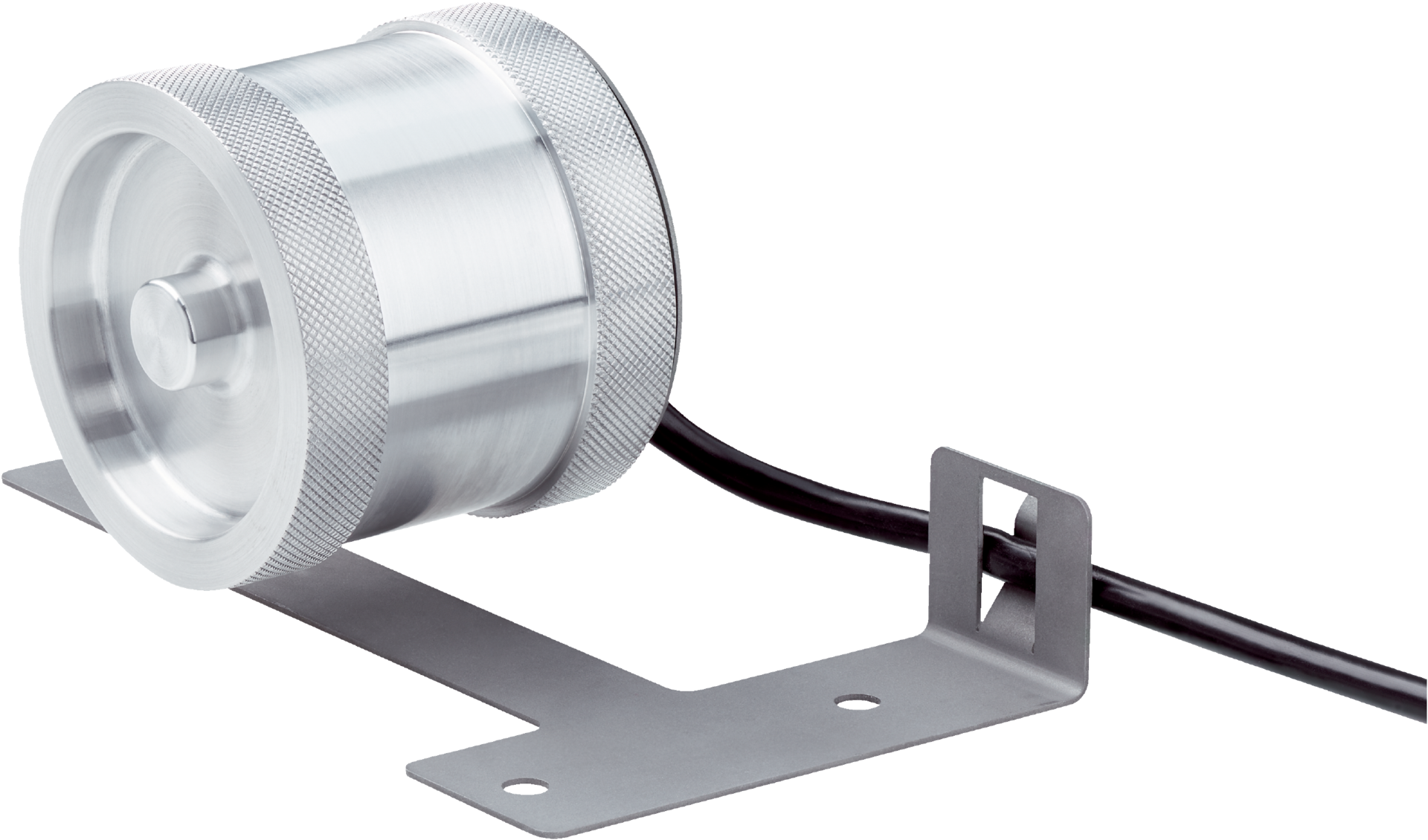

Product Name/Title: DKV60E-21EKA0200 | Measuring wheel encoders
Brand: SICK
SKU: 1115703
Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder, SICK encoder DKV60E
Technical Specifications
- Pulses per revolution: 200
- Resolution: 1 pulse/mm
- Measuring increment: 1 mm/pulse
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: ±0.5 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: ≤ 3 ms
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Operating power consumption (no load): 50 mA
- Connection type: 8-wire cable, 1.5 m length
- Supply voltage: 10 V to 30 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Measuring wheel circumference: 200 mm
- Measuring wheel surface: Cross knurled aluminium
- Spring arm length: 69.5 mm
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Spring element and measuring wheel spring arm: Spring steel, anti-corrosive
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Operating speed: ≤ 1,000 min⁻¹
- Maximum operating speed: 1,500 min⁻¹
- Bearing lifetime: 2 x 10^9 revolutions
- Maximum spring arm travel: 8 mm at 14 N spring travel
- Recommended pretension: 8 N at 4 mm deflection
- Max permissible spring working area: ±1.5 mm
- Recommended spring deflection: 2 mm to 8 mm
- Mounted encoder model: DBS50 Core, DBS50E-SKEKA0200
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature range: -20°C to +60°C (extended to -35°C to +95°C on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 7 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 70mm x 150mm x 70mm
- Weight: 0.42 kg
Key Features
- 200 pulses per revolution with 1 pulse/mm resolution
- Incremental HTL / Push pull communication interface with 6 signal channels
- Robust aluminum housing and flange with stainless steel shaft
- Spring arm mechanism with anti-corrosive spring steel components
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +60°C (extended range on request)
- Reverse polarity protection and low power consumption (50 mA no load)
- High maximum output frequency up to 300 kHz
- Durable bearing lifetime of 2 billion revolutions
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper mounting, wiring, and calibration for accurate measurement performance.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Mobile machinery and vehicle distance tracking
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and long bearing life reduce waste and replacement frequency
- Low power consumption contributes to energy efficiency in industrial systems
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
