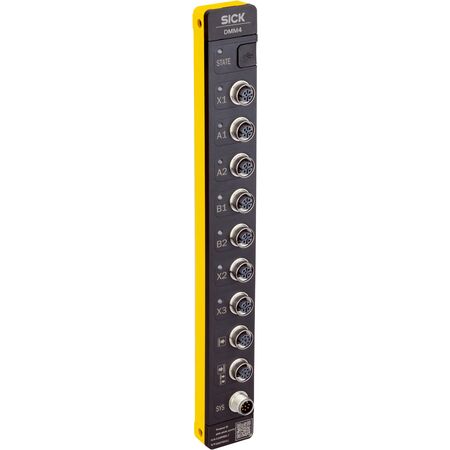

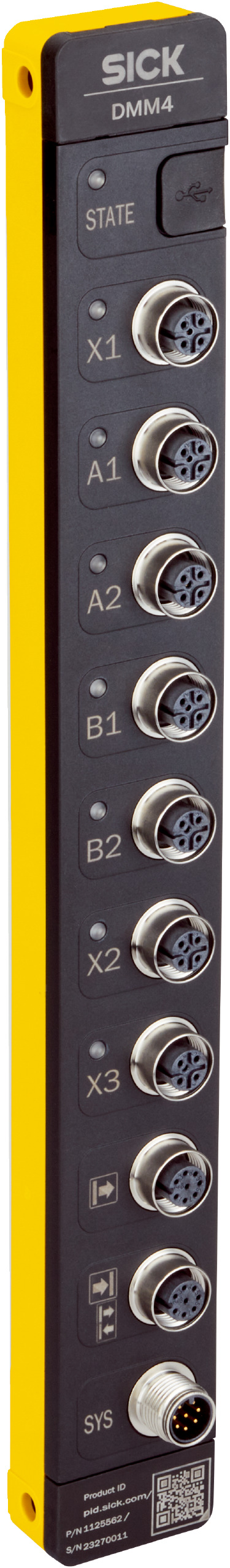

DMM4 Extension Module | Type 4 Safety | SIL 3 Compliance | IP65/IP67 Rated | by SICK
The DMM4 Extension Module enhances the functional scope of electro-sensitive protective equipment (ESPE) with Type 4 safety standards and SIL 3 compliance. Designed for industrial safety automation, it features multiple inputs and outputs, robust IP65/IP67 housing, and a USB 2.0 Type-C interface for easy configuration. Ideal for machine safeguarding, this module ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 4 (IEC 61496)
- Safety Integrity Level: SIL 3 (IEC 61508, IEC 62061)
- Category: Category 4 (ISO 13849)
- Performance Level: PL e (ISO 13849)
- Mean Probability of Dangerous Failure per Hour (PFHD): 3.5 x 10^-9
- Mission Time (TM): 20 years (ISO 13849)
- Supply Voltage: 24 V DC (19.2 V ... 28.8 V)
- Residual Ripple: ≤ 10%
- Enclosure Rating: IP65 / IP67 (IEC 60529)
- Operating Temperature: -30 °C to +55 °C
- Storage Temperature: -30 °C to +70 °C
- Air Humidity: 15% to 95%, Non-condensing
- Vibration Resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock Resistance: 15 g / 6 ms (EN 60068-2-27)
- EMC Compliance: IEC 61496-1, IEC 61000-6-2, IEC 61000-6-4
- Connectors: M12 male and female connectors, 5-pin and 8-pin
- Configuration Interface: USB 2.0 Type-C via Safety Designer software
- Dimensions (H x L x W): 290mm x 33mm x 35mm
- Weight: 0.5 kg
Key Features
- Extends functional scope of ESPE with function package DMM4
- Multiple inputs and outputs for ESPE and other devices or sensors
- Supports beam coding, restart interlock, external device monitoring, and muting functions
- Status LEDs for display elements
- USB 2.0 Type-C interface for configuration and diagnostics via Safety Designer software
- High protection class IP65 / IP67 for harsh environments
- Robust mechanical design with dimensions 35.4 mm x 290.2 mm x 33 mm
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration with existing safety systems and compliance with safety standards.
Applications
- Extends functional scope of electro-sensitive protective equipment (ESPE)
- Compatible with deTec4, deTem4, and deTem4 A/P safety light curtains and sensors
- Industrial safety automation and machine safeguarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports safety automation to reduce workplace accidents and associated environmental impacts
- Durable IP65/IP67 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DMM4-AA110A0A0 extension module is available for immediate purchase, ideal for enhancing safety functions in industrial automation and machine safeguarding applications.
