DOL-127SG20ME25KM0 | Connectors and cables

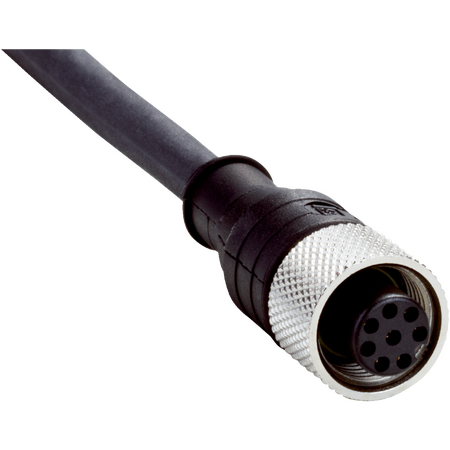

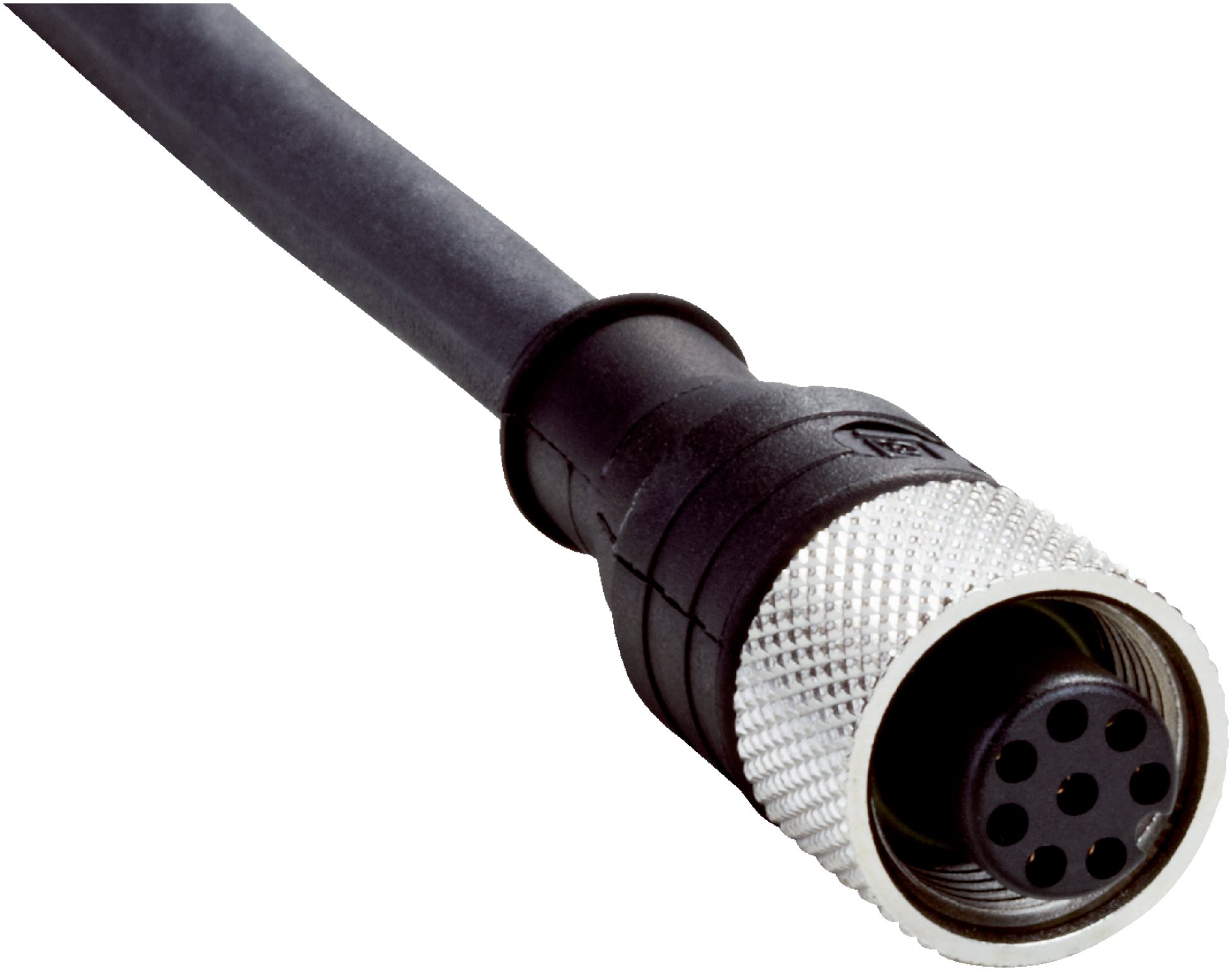

The SICK DOL-127SG20ME25KM0 is a 20m sensor/actuator cable featuring a female M12 8-pin connector and flying leads, designed for industrial automation with high durability, shielding, and IP65/IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL-127SG20ME25KM0 | Connectors and cables
Brand: SICK
SKU: 2076545
Alternatively Known As: M12 Sensor Cable, 8-pin M12 Connector Cable, Flying Lead Sensor Cable, Industrial Automation Cable
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: CuZn, nickel-plated brass
- Cable: 20 m, 7-wire, PUR, halogen-free
- Jacket material: PUR, halogen-free
- Cable diameter: 6 mm
- Conductor cross section: 0.25 mm²
- Shielding: Shielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Drag chain operation temperature: -25 °C to +60 °C
- Current loading: 2 A
- Traversing speed: 3.3 m/s
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Authorizations: UL recognized in accordance with AWM Style 20549 (80 °C / 300 V), jacket UL recognized in accordance with AWM Style 10493 (80 °C / 300 V)
- UL File No.: CYJV.E335179
- Enclosure rating: IP65 / IP67 (EN 60529)
- Dimensions (H x L x W): 6mm x 20000mm x 6000mm
- Weight: 0.5 kg
Key Features
- Female M12, 8-pin straight connector on head A
- Flying leads on head B for flexible connection
- Cable length of 20 meters with 7-wire PUR halogen-free jacket
- Shielded cable for signal integrity
- High bending cycle durability with over 2,000,000 cycles
- Operating temperature range from -50°C to +80°C
- IP65/IP67 rated enclosure for dust and water protection
- UL recognized cable and jacket for safety compliance
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation and control systems
- Robotics and machinery requiring flexible, shielded cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DOL-127SG20ME25KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
