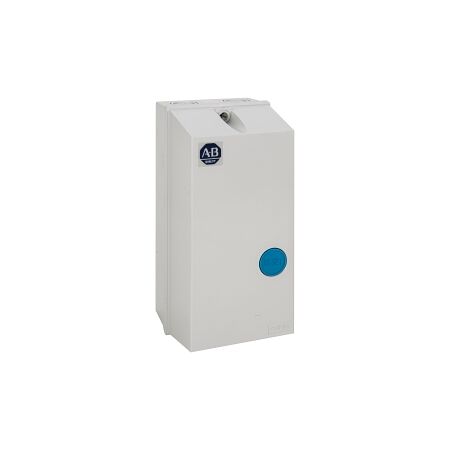

Allen-Bradley 109C DOL 4kW Reset 230VAC Coil 1.0 to 5A Overload

DOL Motor Starter 4kW | 230VAC Coil | 1-5A Overload | IP66 by NHP

BRAND: NHP

SKU: 109C09VKFE1C7

$680.40 List price: $903.40

+ −

30 Days Return Delivery Options

Direct online motor starter with 4kW power and 230VAC coil, featuring adjustable 1-5A overload protection—ideal for industrial and commercial motor control. Built for durability with IP66 protection, ensuring reliable performance in harsh environments.

Description
Attachments

Product Name/Title: Allen-Bradley 109C DOL 4kW Reset 230VAC Coil 1.0 to 5A Overload

Brand: NHP

SKU: 109C09VKFE1C7

Alternatively Known As: DOL Motor Starter, Direct Online Starter, 4kW Motor Starter

Technical Specifications

Type of Motor Starter: Direct online starter (DOL)
Rated Operation Power at AC 3 400 V: 4 kW
Rated Operation Current at AC 3 400 V: 9 A
Rated Operation Current IE: 5 A
Long Time Overload Protection Adjustment Range: 1-5 A
Release Class: Adjustable
Voltage Type for Actuating: AC
Control Supply Voltage Us at AC 50 Hz: 230 V
Temperature Compensated Overload Protection: Yes
Type of Electrical Connection of Main Circuit: Screw connection
Type of Electrical Connection for Auxiliary and Control Current Circuit: Screw connection
External Reset Possible: Yes
Device Construction: Enclosed
Material: Plastic
Degree of Protection IP: IP66
Dimensions (H x L x W): 208mm x 111mm x 98mm
Weight: 2.5 kg

Key Features

Direct online starter (DOL) for efficient motor control.
Adjustable long-time overload protection from 1 to 5 A.
IP66 rated for protection against dust and water.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control applications
Commercial: Equipment requiring reliable motor starting

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Energy-efficient operation reduces overall power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 109C DOL 4kW Starter is available now for immediate purchase. Ideal for industrial and commercial motor control applications.

Non-Returnable & Non-Cancellable

109C09VKFE1C7-AU-DOL-Starter-Datasheet.pdf (109C09VKFE1C7-AU-DOL-Starter-Datasheet.pdf, 175 Kb) [Download]
