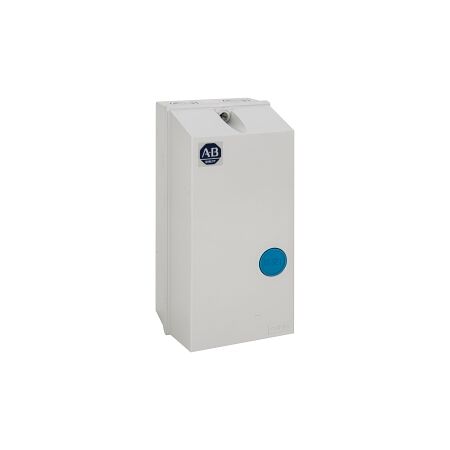

Allen-Bradley 109C DOL 4kW Reset 230VAC Coil 3.2 to 16A Overload

DOL Motor Starter 4kW | 230VAC Coil | 3.2-16A Overload | IP66 by NHP

BRAND: NHP

SKU: 109C09VKFE1D7

$672.80 List price: $893.40

+ −

30 Days Return Delivery Options

Direct online motor starter with 4kW power and 230VAC coil, featuring adjustable overload protection from 3.2 to 16A—ideal for industrial motor control. Built for durability with IP66 protection, ensuring reliable performance in harsh environments.

Description
Attachments

Product Name/Title: Allen-Bradley 109C DOL 4kW Reset 230VAC Coil 3.2 to 16A Overload

Brand: NHP

SKU: 109C09VKFE1D7

Alternatively Known As: DOL Motor Starter, Direct Online Starter, Motor Control Starter

Technical Specifications

Type of Motor Starter: Direct online starter (DOL)
Rated Operation Power at AC 3 400 V: 4 kW
Rated Operation Current at AC 3 400 V: 9 A
Rated Operation Current IE: 16 A
Long Time Overload Protection Adjustment Range: 3.2-16 A
Release Class: Adjustable
Voltage Type for Actuating: AC
Control Supply Voltage Us at AC 50 Hz: 230 V
Temperature Compensated Overload Protection: Yes
Type of Electrical Connection of Main Circuit: Screw connection
Type of Electrical Connection for Auxiliary and Control Current Circuit: Screw connection
External Reset Possible: Yes
Device Construction: Enclosed
Material: Plastic
Degree of Protection IP: IP66
Dimensions (H x L x W): 208mm x 112mm x 98mm
Weight: 2.5 kg

Key Features

Direct online starter (DOL) for efficient motor control.
Adjustable long-time overload protection from 3.2 to 16 A.
IP66 rated for protection against dust and water.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control applications
Commercial: Equipment requiring reliable starting and stopping

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Energy-efficient operation reduces overall power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 109C DOL 4kW Starter is available now for immediate purchase. Ideal for industrial and commercial motor control applications.

Non-Returnable & Non-Cancellable

109C09VKFE1D7-AU-DOL-Starter-Datasheet.pdf (109C09VKFE1D7-AU-DOL-Starter-Datasheet.pdf, 175 Kb) [Download]
