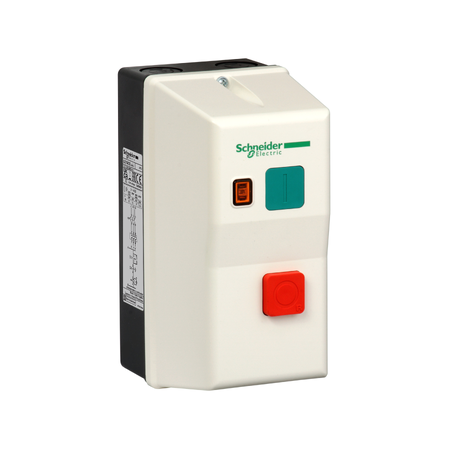

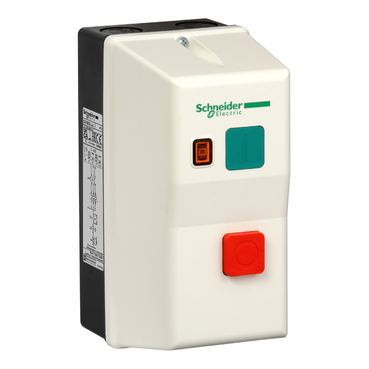

DOL Starter 3P IP65 | 0.37kW Motor Control | 240V AC Coil | by Clipsal
The DOL Starter 3P IP65 is designed for reliable motor control, suitable for 0.37kW (0.5HP) motors. With an IP65 rated enclosure, it offers excellent dust and water protection, making it ideal for industrial applications like pumps, fans, and HVAC systems. Built for easy installation and maintenance, this starter ensures efficient operation and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DOL Starter 3P IP65 | 0.37kW Motor Control | 240V AC Coil | by Clipsal
Brand: Clipsal
SKU: SCHLE1M35U706
Alternatively Known As: Direct On Line Starter, DOL Motor Starter, 3 Phase DOL Starter, Enclosed Motor Starter, Clipsal Motor Starter
Technical Specifications
- Starter Type: Direct-On-Line (DOL)
- Phases: 3
- Enclosure Rating: IP65
- Motor Power: 0.37kW (0.5HP)
- Coil Voltage: 240V AC
- Thermal Overload Range: 0.8...1.2A
- Frequency: 50/60Hz
- Enclosure Material: Polycarbonate
- Operating Temperature: -20°C to +60°C
- Dimensions (H x L x W): 180mm x 120mm x 100mm
- Weight: 1.8 kg
Key Features
- Direct-On-Line (DOL) starter for 3-phase motors
- IP65 rated enclosure for dust and water protection
- Suitable for 0.37kW (0.5HP) motors
- 240V AC coil voltage
- Adjustable thermal overload relay (0.8...1.2A)
- Robust and compact design
- Easy installation and maintenance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Industrial motor control
- Pumps and fans
- Conveyor systems
- HVAC equipment
- General machinery requiring direct-on-line starting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60947 – Low-voltage switchgear and controlgear
Environmental Benefits
- IP65 enclosure reduces risk of dust and water ingress, extending product lifespan
- Efficient motor control reduces energy waste and equipment downtime
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal DOL Starter 3P IP65 0.37kW 240V AC is available for immediate purchase. Ideal for industrial motor control applications requiring robust and reliable starting solutions.
