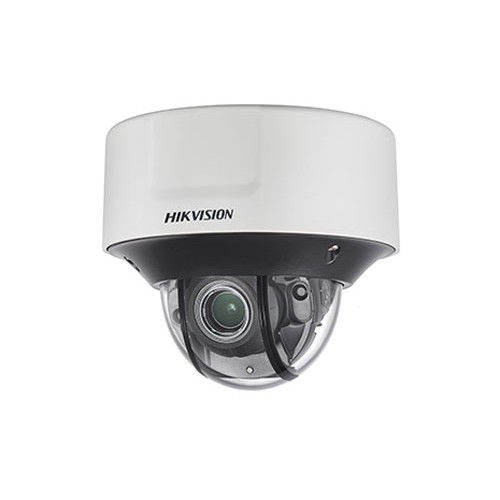

Dome Camera 4MP DarkFighter 2.8-12mm Hikvision

BRAND: Ness
SKU: 114-000
$1,500.50 List price: $2,000.60
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision dome camera features 4MP resolution, DarkFighter low light and a 2.8-12mm lens. Ideal for CCTV and security installs.

Alternatively Known As: Hikvision DS-2CD2746G2-IZS, 4MP DarkFighter IP Dome Camera, AcuSense Varifocal Dome Camera

Technical Specifications
  • Image Resolution: 4MP, 2688 × 1520 ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Image Sensor: 1/3-inch progressive scan CMOS ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Lens: 2.8–12mm motorised varifocal lens with autofocus ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Horizontal Field of View: 108° to 30° ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Low-Light Performance: DarkFighter technology; colour illumination 0.003 lux at F1.4, AGC on ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Wide Dynamic Range: 120dB true WDR ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Infrared Range: Up to 40m ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Video Compression: H.265, H.264, H.265+ and H.264+ ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059098/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Power Supply: 12V DC or PoE 802.3af Class 3 ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059097/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Maximum Power Consumption: 10.5W via 12V DC or 12.5W via PoE ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059097/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Ingress and Impact Protection: IP66 and IK10 ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/fr/datasheet_06_2022/eco-pro-ip/ds-2cd2746g2-izs-2-8-12mm-c-black/Fiche-technique_DS-2CD2746G2-IZS-2.8-12mm-C-BLACK.pdf?utm_source=openai))
  • Camera Material: Metal ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000002/S000000003/S000000025/OFR000041/M000014832/SM000059097/Data_Sheet/DS-2CD2746G2-IZS-C_Datasheet_V5.5.112_20230217.pdf?utm_source=openai))
  • Australian EMC Marking: RCM listed to AS/NZS CISPR 32:2015 ([senetic.be](https://www.senetic.be/product/DS-2CD2746G2-IZS_28-12MM_/C/BLACK?utm_source=openai))
  • Dimensions (H x L x W): 133.1mm x 153.5mm x 153.5mm
  • Weight: 0.845 kg
Key Features
  • 4MP high-definition network video capture
  • DarkFighter low-light imaging for improved performance in dim conditions
  • Motorised 2.8–12mm varifocal lens with autofocus
  • AcuSense deep-learning classification of people and vehicles
  • 120dB true WDR for scenes with strong backlighting
  • Up to 40m infrared illumination
  • H.265+ compression to reduce bandwidth and storage requirements
  • IP66 weather resistance and IK10 vandal resistance
  • PoE or 12V DC power options
  • Audio and alarm interfaces available
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security or communications technician. Configure the camera, network, PoE supply, recording system and mounting hardware in accordance with the manufacturer’s instructions and applicable electrical and CCTV installation requirements.
Applications
  • Commercial and industrial CCTV systems
  • Retail, warehouse and office surveillance
  • Building entrances, corridors and perimeter areas
  • Low-light indoor and outdoor security monitoring
  • People and vehicle classification applications
Standards & Compliance
  • AS/NZS 62676.1.1:2020 – applicable general requirements for video surveillance systems used in security applications ([hsenode.com](https://www.hsenode.com/NewSamples/AS/125266347/AS-NZS-62676.1.1-2020-1.pdf?utm_source=openai))
  • AS/NZS 62676.5:2020 – applicable data specifications and image-quality performance requirements for camera devices ([asial.com.au](https://asial.com.au/Web/web/Advice-Services/Standards-and-Codes/Electronic-Security-Standards.aspx?utm_source=openai))
  • AS/NZS CISPR 32:2015 – RCM electromagnetic compatibility marking listed in the manufacturer’s datasheet ([senetic.be](https://www.senetic.be/product/DS-2CD2746G2-IZS_28-12MM_/C/BLACK?utm_source=openai))
Environmental Benefits
  • H.265+ compression can reduce network bandwidth and recording-storage requirements compared with less efficient codecs
  • PoE support allows power and data to be delivered over a single network cable, reducing cabling material and installation complexity
  • Metal construction, IP66 protection and IK10 impact resistance can extend service life and reduce replacement waste
  • Lower storage requirements can reduce the energy and hardware resources associated with long-term video retention
Warranty Information

Hikvision Australia IP cameras are commonly supplied with a three-year back-to-base manufacturer warranty through authorised distribution channels; confirm the applicable warranty terms at purchase. Hikvision’s RMA policy states that the applicable product warranty period is determined by the relevant product and contract documentation. ([securitywholesalers.com.au](https://www.securitywholesalers.com.au/faqs/warranties-cctv-products/?utm_source=openai))

Available Now

Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model and stock availability.
