Trade Discount 25%

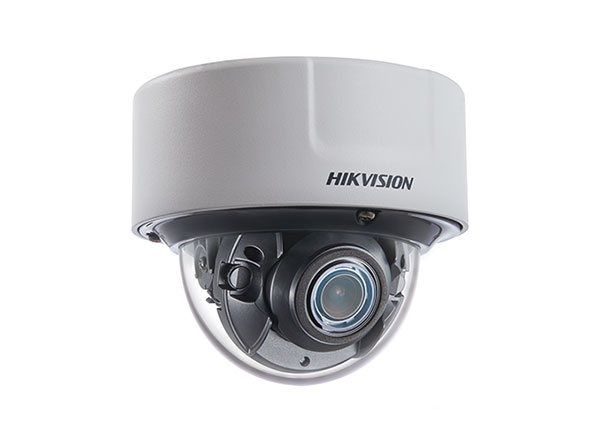

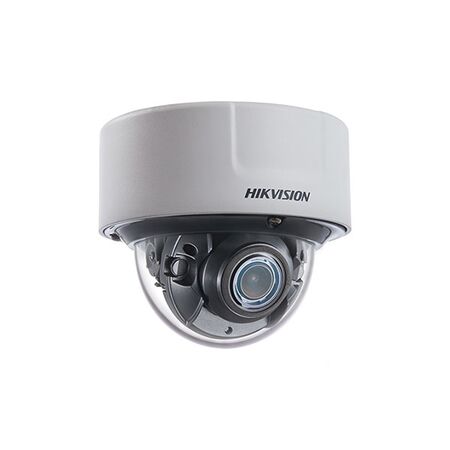

Dome Camera 4MP DarkFighter IR Hikvision
Hikvision IR dome camera features 4MP resolution and DarkFighter low light. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 4MP DarkFighter Dome Camera, 4MP IR Varifocal Network Dome Camera, Hikvision DS-2CD5146G0-IZS
Technical Specifications
- Resolution: 4MP, 2560 × 1440 at up to 30fps
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Low-Light Performance: 0.002 lux colour at F1.2; 0 lux with IR
- Lens: 2.8–12mm motorised varifocal lens
- Infrared Range: Up to 30m
- Wide Dynamic Range: 140dB true WDR
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Storage: MicroSD, SDHC or SDXC up to 256GB
- Power: 12V DC or 802.3af PoE
- Protection Rating: IK10 impact protection
- Network Interface: 10/100/1000M Ethernet
- Audio and Alarm: One audio input, one audio output, one alarm input and one alarm output
- Dimensions (H x L x W): 122.6mm x 140.5mm x 140.5mm
- Weight: 0.9 kg
Key Features
- DarkFighter technology for improved imaging in very low-light conditions
- 4MP image resolution for detailed CCTV surveillance
- Motorised varifocal lens supports flexible viewing angles
- 140dB true WDR helps balance strong backlighting
- Up to 30m infrared night vision
- H.265+ compression can reduce bandwidth and storage requirements
- IK10-rated vandal-resistant housing
- Supports onboard microSD recording and network storage
- Compatible with PoE network infrastructure
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or electrical installer. PoE, 12V DC power, network cabling and any associated electrical work should be installed in accordance with applicable Australian requirements, including AS/NZS 3000 where relevant.
Applications
- Indoor commercial CCTV systems
- Retail and warehouse surveillance
- Office and building security
- Entry, reception and corridor monitoring
- Low-light security installations
- Professional IP video surveillance systems
Standards & Compliance
- Applicable CCTV system framework: AS/NZS 62676.1.1:2020
- Applicable CCTV video transmission standard: AS/NZS 62676.1.2:2020
- Applicable CCTV camera image-performance standard: AS/NZS 62676.5:2020
- CCTV application and installation guidance: AS/NZS 62676.4:2020
- Electrical installation work should follow AS/NZS 3000:2018 where applicable; product-specific certification should be confirmed from the supplied compliance documentation
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements
- Low-light and infrared performance may reduce reliance on additional continuous lighting
- IK10-rated construction can extend service life and reduce replacement waste
- MicroSD and network recording options can reduce dependence on dedicated recording hardware in suitable installations
Warranty Information
Australian distributor listings specify a 3-year warranty for this model. Hikvision’s published 5-year warranty applies only to listed premium project-oriented product series, so confirm the applicable warranty with the authorised Australian seller at purchase.
Available Now
Available through Hikvision and authorised Australian security distributors, subject to regional model availability.
