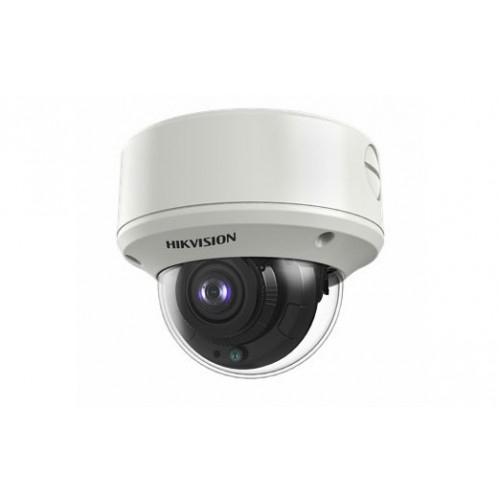

Dome Camera 5MP TVI 2.7-13.5mm Hikvision
Hikvision TVI dome camera features 5MP resolution and a 2.7-13.5mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 5MP HD-TVI Dome Camera, Hikvision 5MP Motorised Varifocal Dome, Hikvision 5MP Vandal-Resistant CCTV Dome
Technical Specifications
- Image Sensor: 5 megapixel progressive scan CMOS
- Maximum Resolution: 2560 × 1944 pixels
- Video Output: Switchable TVI, AHD, CVI and CVBS
- Frame Rate: 5MP at 20fps via TVI
- Lens: 2.7-13.5mm motorised varifocal lens
- Horizontal Field of View: 92.3° to 29.3°
- Minimum Illumination: 0.003 lux colour; 0 lux with IR
- Infrared Range: Up to 60m
- Wide Dynamic Range: 130dB true WDR
- Noise Reduction: 3D digital noise reduction
- Power Supply: 12V DC or 24V AC
- Maximum Power Consumption: 8W
- Protection Rating: IP67 weather resistance and IK10 impact resistance
- Housing Material: Metal
- Communication: Up-the-coax HIKVISION-C protocol
- Dimensions (H x L x W): 124.1mm x 145.2mm x 145.2mm
- Weight: 0.64 kg
Key Features
- 5MP high-definition analogue surveillance imaging
- Motorised varifocal lens for adjustable scene coverage and focus
- Supports TVI, AHD, CVI and CVBS video formats
- Up to 60m infrared night vision with Smart IR
- 130dB true WDR for challenging backlit scenes
- IP67-rated protection for outdoor installations
- IK10 vandal-resistant construction
- Four programmable privacy-mask areas and four motion-detection areas
- Three-axis adjustment for flexible mounting alignment
Professional Installation Requirements
- Installation should be performed by a suitably qualified security technician. Configure the camera with a compatible DVR or XVR, provide the specified 12V DC or 24V AC supply, and install the CCTV system in accordance with applicable Australian requirements and manufacturer instructions.
Applications
- Residential CCTV security systems
- Commercial and retail surveillance
- Warehouses, workshops and industrial premises
- Building entrances, loading areas and car parks
- Outdoor areas requiring vandal-resistant dome protection
Standards & Compliance
- Applicable to CCTV installations designed in accordance with AS/NZS 62676.1.1 for video surveillance systems used in security applications
- CCTV installation work may also be subject to state or territory licensing requirements and relevant electrical installation requirements
Environmental Benefits
- Maximum power consumption of 8W supports relatively low operating energy demand
- Metal housing materials can be recovered for recycling at end of service life
- Durable IP67 and IK10 construction can extend service life and reduce replacement waste
- Multi-format video output can support reuse of existing coaxial CCTV infrastructure
Warranty Information
Australian Hikvision distributors commonly specify a 3-year back-to-base manufacturer warranty for Hikvision CCTV cameras; confirm warranty eligibility and terms with the authorised seller at purchase.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional model availability.
