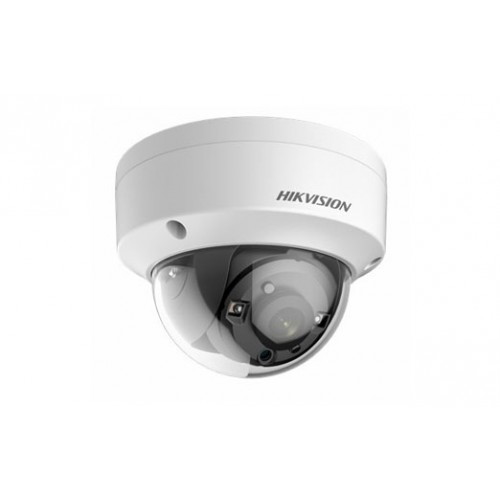

Dome Camera 5MP TVI IR 2.8mm Hikvision
Hikvision TVI IR dome camera features 5MP resolution and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 5MP Turbo HD Dome Camera, 5MP HD-TVI IR Dome, Ultra-Low-Light Vandal-Proof Dome Camera
Technical Specifications
- Model: DS-2CE57H8T-VPITF, 2.8mm variant
- Image Sensor: 5MP progressive scan CMOS
- Maximum Resolution: 2560 × 1944 pixels
- Lens: 2.8mm fixed focal length, M12 mount
- Horizontal Field of View: 98°
- Frame Rate: 5MP at 20fps via TVI
- Minimum Illumination: 0.003 lux in colour mode; 0 lux with IR
- Video Output: Switchable TVI/AHD/CVI/CVBS
- Infrared Range: Up to 30m with Smart IR
- Wide Dynamic Range: 130dB
- Power Supply: 12V DC ±25%
- Maximum Power Consumption: 5.8W
- Protection Rating: IP67 and IK10
- Operating Temperature: -40°C to 60°C
- Material: Metal
- Dimensions (H x L x W): 84.7mm x 110.8mm x 110.8mm
- Weight: 0.5 kg
Key Features
- 5MP surveillance resolution for detailed CCTV imaging
- 2.8mm wide-angle fixed lens for broad scene coverage
- EXIR infrared illumination with up to 30m range
- Smart IR helps control night-time overexposure
- 130dB wide dynamic range for high-contrast scenes
- Switchable TVI, AHD, CVI and CVBS analogue outputs
- Up-the-coax HIKVISION-C communication
- IP67 weather and dust protection
- IK10 impact-resistant vandal-proof housing
- Four programmable privacy masks and motion-detection areas
Professional Installation Requirements
- Installation should be carried out by a qualified security or CCTV technician. Use a suitable regulated 12V DC supply and configure the camera and recorder for the selected video format.
Applications
- Commercial CCTV installations
- Residential security systems
- Retail and hospitality surveillance
- Car parks, building entrances and perimeter monitoring
- Indoor and outdoor security locations requiring vandal resistance
- Analogue HD surveillance upgrades using existing coaxial cabling
Standards & Compliance
- Relevant CCTV system standard: AS/NZS 62676.1.1:2020 for video surveillance systems used in security applications; product-specific certification should be confirmed through the authorised Australian supplier.
Environmental Benefits
- 12V DC low-voltage operation with maximum power consumption of 5.8W helps limit operating energy use
- Metal vandal-resistant construction can extend service life and reduce replacement waste
- One camera supports four analogue video formats, assisting reuse of existing CCTV infrastructure and cabling
- IR-assisted night surveillance can reduce reliance on separate lighting in suitable installations
Warranty Information
Hikvision warranty support is subject to the Australian RMA policy and authorised-distribution terms. Hikvision's published five-year programme applies to listed premium project-oriented series and does not identify this standard TVI dome series; confirm the applicable warranty term with the supplying distributor.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to distributor stock and regional model availability.
