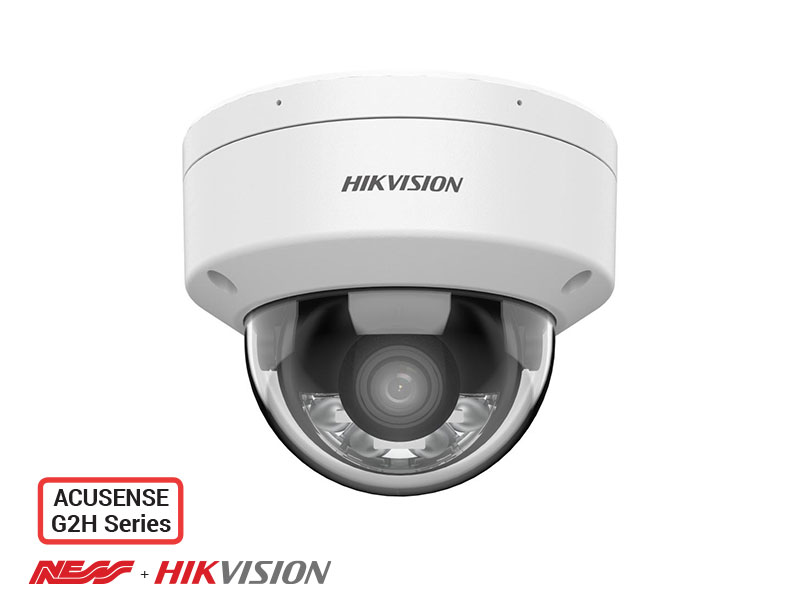

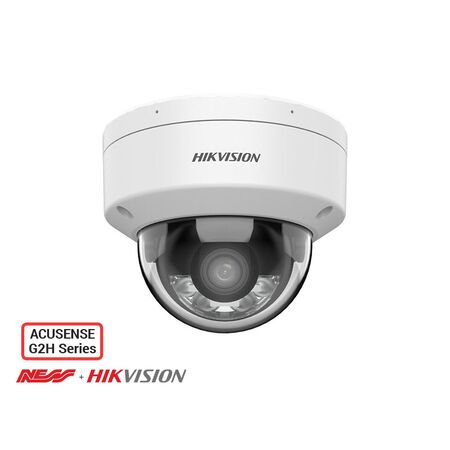

Dome Camera 6MP 2.8mm Hikvision
Hikvision dome camera features 6MP resolution and a 2.8mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 6MP CCTV Dome Camera, Hikvision IP Dome Camera, Hikvision 6MP IR Dome Camera
Technical Specifications
- Resolution: 6 MP, up to 3072 × 2048
- Lens: 2.8 mm fixed lens
- Field of View: 99° horizontal, 61° vertical, 128° diagonal
- Image Sensor: 1/2.4 inch progressive-scan CMOS
- Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
- Wide Dynamic Range: 120 dB
- Night Vision: Infrared illumination up to 30 m
- Network Interface: 10/100 Mbps RJ45 Ethernet
- Power Supply: 12 VDC or PoE, IEEE 802.3af
- Maximum Power Consumption: Approximately 7.5 W via PoE
- Ingress Protection: IP67
- Impact Protection: IK10
- Storage: microSD, SDHC or SDXC up to 128 GB
- Protocol Support: ONVIF Profile S and Profile G
- Dimensions (H x L x W): 82.4mm x 111mm x 111mm
- Weight: 0.5 kg
Key Features
- 6 MP high-resolution surveillance imaging
- 2.8 mm wide-angle lens for broad scene coverage
- 120 dB wide dynamic range for high-contrast scenes
- Infrared night vision up to 30 m
- H.265+ compression helps reduce bandwidth and storage requirements
- IP67 weather-resistant housing for indoor or outdoor installations
- IK10 vandal-resistant dome construction
- PoE support for combined power and network connectivity
- Three-axis camera adjustment for flexible positioning
- Compatible with Hik-Connect and compatible NVR systems
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or communications installer. Any mains-voltage power connection must comply with applicable electrical regulations and be completed by a licensed electrical worker where required. Configure and commission the camera in accordance with the manufacturer's instructions and the applicable AS/NZS 62676 series requirements.
Applications
- Residential CCTV and security systems
- Commercial premises and retail surveillance
- Warehouses, offices and industrial facilities
- Building entrances, corridors and car parks
- Outdoor perimeter and general-purpose monitoring
- IP video surveillance systems using PoE or 12 VDC power
Standards & Compliance
- Applicable video surveillance system standard: AS/NZS 62676.1.1:2020
- AS/NZS 3000:2018 applies to relevant electrical installation and wiring work
- Product-specific RCM or Australian conformity status should be confirmed for the exact Hikvision model and Australian distribution channel
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage demand compared with older compression formats
- Metal vandal-resistant housing and IP67 protection can extend service life and reduce replacement waste
- Power-over-Ethernet enables combined power and data delivery over a single network cable, reducing installation material requirements
Warranty Information
Hikvision network cameras supplied through authorised Australian channels are commonly covered by a 3-year manufacturer warranty, subject to the exact model, purchase channel and local warranty terms. Confirm coverage against the seller's invoice and product serial number.
Available Now
Available through Hikvision and authorised Australian security, electrical and communications distributors; availability depends on the exact model and Australian stock position.
