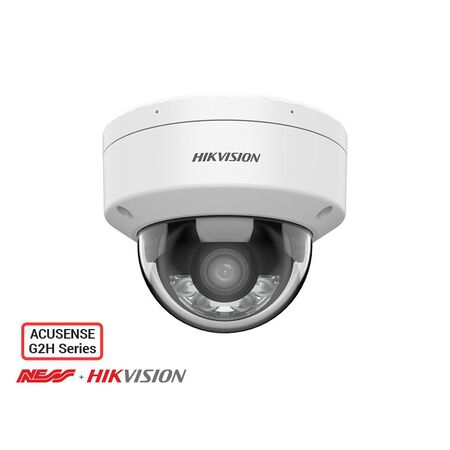

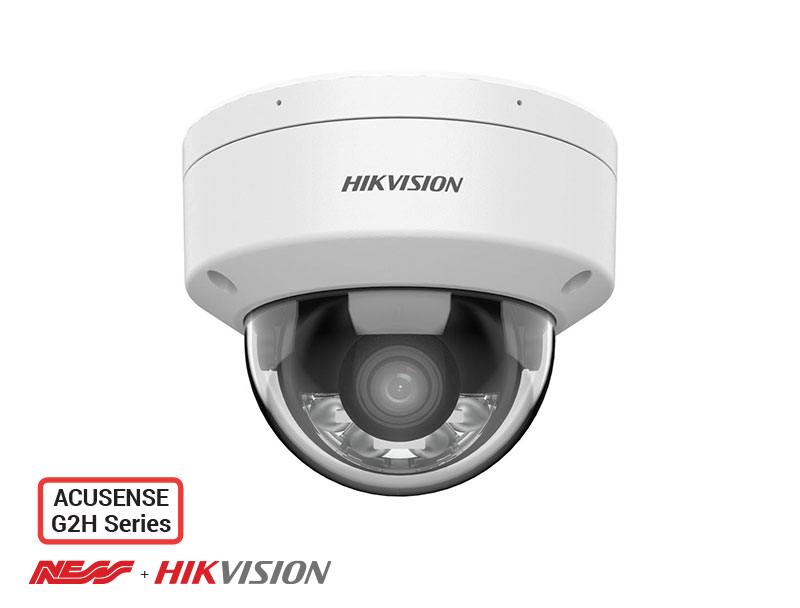

Dome Camera 6MP 4mm DS-2CD2166G2H-ISU Hikvision
Hikvision dome camera features 6MP resolution and a 4mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision DS-2CD2166G2H-ISU 4mm, 6MP IP Dome Camera, DarkFighter Fixed Dome CCTV Camera
Technical Specifications
- Model: DS-2CD2166G2H-ISU(4mm)
- Resolution: 6MP, 3200 × 1800
- Image Sensor: 1/2.4 inch progressive scan CMOS
- Lens: Fixed 4mm focal length, F1.0 aperture, M12 mount
- Field of View: 94° horizontal, 50.2° vertical, 112° diagonal
- Low-Light Performance: 0.001 lux colour at F1.0; 0 lux black-and-white with IR
- Infrared Range: Up to 30m, 850nm IR
- Wide Dynamic Range: 120 dB true WDR
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Frame Rate: Up to 25fps at 3200 × 1800 in 50Hz mode
- Network Interface: 10/100M self-adaptive RJ45 Ethernet
- Storage: Built-in microSD/microSDHC/microSDXC slot supporting up to 512GB
- Audio: Built-in microphone with audio noise filtering
- Power Supply: 12VDC ±25% or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 7.8W using 12VDC or 9.5W using PoE
- Ingress Protection: IP67
- Impact Protection: IK10
- Operating Temperature: -30°C to 60°C
- Material: Aluminium alloy base and cover
- Dimensions (H x L x W): 97.6mm x 121.5mm x 121.5mm
- Weight: 0.525 kg
Key Features
- 6MP image resolution for detailed surveillance footage
- 4mm fixed lens with 94° horizontal field of view
- Powered-by-DarkFighter technology for low-light performance
- 120 dB true WDR for challenging backlit scenes
- Smart IR illumination up to 30m with IR cut filter
- Human and vehicle classification using deep learning
- Line crossing, intrusion, region entrance and region exiting detection
- Built-in microphone for real-time audio security
- ONVIF Profile S, Profile G and Profile T support
- MicroSD recording support up to 512GB
- PoE connectivity for combined power and data over Ethernet
- IP67 weather resistance and IK10 vandal resistance
Professional Installation Requirements
- Installation should be carried out by a qualified CCTV or security technician, including secure mounting, network configuration, PoE or 12VDC connection and commissioning. Any 230V mains electrical work must be completed by a licensed electrician.
Applications
- Commercial CCTV surveillance
- Residential security systems
- Retail and shop surveillance
- Office and warehouse monitoring
- Entry, exit and perimeter monitoring
- Outdoor security installations in exposed locations
- Vehicle and pedestrian detection zones
Standards & Compliance
- Manufacturer-stated RCM EMC approval to AS/NZS CISPR 32:2015
- Relevant CCTV system requirements: AS/NZS 62676.1.1:2020
- Relevant CCTV camera image-quality standard: AS/NZS 62676.5:2020
Environmental Benefits
- RoHS compliance limits the use of restricted hazardous substances in the camera assembly
- Low-power operation with a maximum consumption of 9.5W over PoE
- PoE connectivity reduces the need for separate power cabling and associated materials
- Aluminium alloy construction supports material recovery and recycling
- IP67 and IK10 protection help extend service life and reduce replacement waste
Warranty Information
Hikvision’s standard warranty for surveillance products is 36 months, subject to purchase through an authorised channel and the applicable Hikvision warranty and RMA terms. Premium project-oriented series may have different warranty coverage.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
