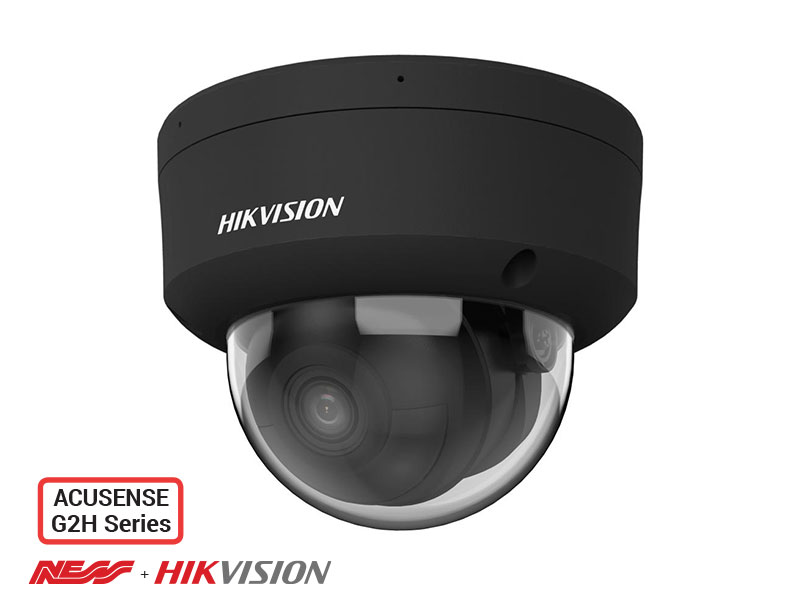

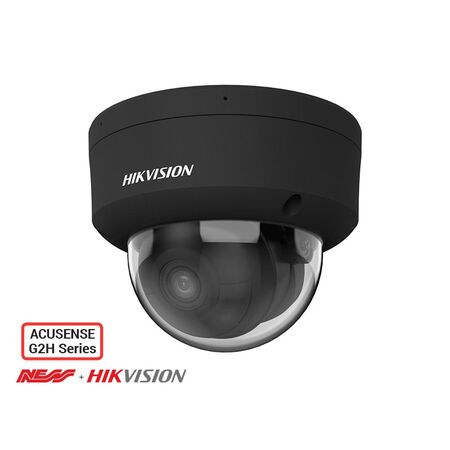

Dome Camera 8MP 2.8mm Black DS-2CD2186G2H-ISU Hikvision
Hikvision dome camera features 8MP resolution, a 2.8mm lens and a black finish. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP IP Dome Camera, Hikvision AcuSense DarkFighter Dome Camera, DS-2CD2186G2H-ISU(2.8mm)(eF)/BLACK
Technical Specifications
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Maximum Resolution: 3840 × 2160 pixels, 8MP
- Lens: 2.8mm fixed lens, F1.0 aperture
- Field of View: Horizontal 105.1°, vertical 54.8°, diagonal 128.2°
- Infrared Range: Up to 30m with Smart IR
- Wide Dynamic Range: 130dB WDR
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Audio: Built-in microphone with audio input and output interfaces
- Analytics: AcuSense human and vehicle classification, perimeter protection and face capture
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Network: 10/100Mbps RJ45 Ethernet, ONVIF Profiles S, G and T
- Power Supply: 12V DC or IEEE 802.3af PoE, Class 3
- Maximum Power Consumption: 8W via 12V DC or 9.5W via PoE
- Ingress Protection: IP67
- Impact Protection: IK10
- Housing Material: Aluminium alloy
- Operating Temperature: -30°C to 60°C
- Dimensions (H x L x W): 97.6mm x 121.5mm x 121.5mm
- Weight: 0.525 kg
Key Features
- 8MP 4K-resolution network dome camera
- Black finish for discreet security installations
- 2.8mm fixed lens for wide-angle coverage
- DarkFighter technology for improved low-light performance
- AcuSense deep-learning analytics for human and vehicle classification
- Smart IR night vision up to 30 metres
- Built-in microphone and two-way audio interfaces
- IP67 weather protection and IK10 vandal resistance
- PoE or 12V DC power options
- Local recording support via microSD card
- Compatible with Hik-Connect, iVMS-4200 and HikCentral platforms
Professional Installation Requirements
- Installation should be completed by a suitably qualified security installer in accordance with the manufacturer's instructions and applicable Australian CCTV requirements. Any fixed mains electrical work must be performed by a licensed electrician.
Applications
- Residential CCTV and security systems
- Commercial buildings, offices and retail premises
- Warehouses, workshops and industrial sites
- Perimeter, entrance and access-point monitoring
- Low-light and night-time surveillance
- Indoor or outdoor IP surveillance installations
Standards & Compliance
- Applicable to CCTV system design and performance requirements under AS/NZS 62676.1.1:2020
- Applicable CCTV application, planning, installation, commissioning and maintenance guidance under AS/NZS 62676.4:2020
- Camera image-quality and data-performance requirements are addressed by AS/NZS 62676.5:2020
Environmental Benefits
- Low-power operation through IEEE 802.3af Power over Ethernet, with maximum PoE consumption of approximately 9.5W
- Aluminium alloy housing is durable and recyclable at end of service life
- RoHS and WEEE environmental compliance declared for the product family
- Long service life and IP67/IK10 protection can reduce replacement frequency and electronic waste
Warranty Information
Warranty terms depend on the country of supply and authorised sales channel. Hikvision Australia advertises a five-year warranty only for specified premium project-oriented product series; coverage for this model should be confirmed with the authorised Australian distributor before purchase. Some regional distributors list a three-year warranty.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors, subject to regional product availability.
