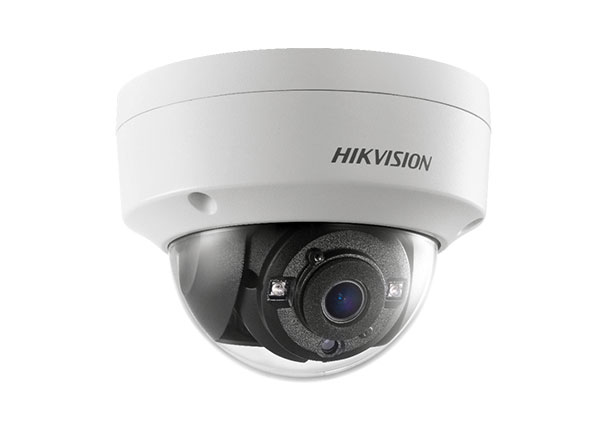

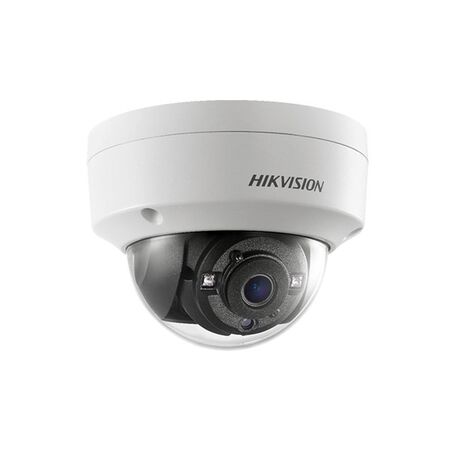

Dome Camera 8MP TVI IR 2.8mm DS-2CE57U7T-VPITF Hikvision
Hikvision TVI IR dome camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 8MP TurboHD Dome Camera, 4K Ultra Low Light Fixed Dome Camera, DS-2CE57U7T-VPITF 2.8mm
Technical Specifications
- Image Sensor: 8.29MP CMOS
- Maximum Resolution: 3840 × 2160 pixels
- Lens: 2.8mm fixed lens
- Horizontal Field of View: Approximately 102°
- Video Formats: TVI, AHD, CVI and CVBS switchable output
- TVI Frame Rate: 8MP at 12.5 or 15fps
- Minimum Illumination: 0.003 lux with AGC enabled; 0 lux with IR
- Wide Dynamic Range: True WDR, ≥130dB
- Infrared Range: Up to 30m
- Noise Reduction: 3D digital noise reduction
- Power Supply: 12VDC ±25%
- Maximum Power Consumption: 4.2W
- Operating Temperature: -40°C to 60°C
- Housing Material: Metal
- Ingress Protection: IP67
- Impact Protection: IK10
- Communication: HIKVISION-C over coax
- Dimensions (H x L x W): 84.7mm x 110.8mm x 110.8mm
- Weight: 0.48 kg
Key Features
- 8MP 4K resolution for detailed surveillance images
- 2.8mm fixed wide-angle lens for broad scene coverage
- Ultra-low-light imaging down to 0.003 lux
- EXIR 2.0 infrared illumination with up to 30m range
- 130dB true WDR for challenging backlit scenes
- 3D DNR for reduced image noise
- 4-in-1 analogue output supporting TVI, AHD, CVI and CVBS
- IP67 weather-resistant construction for outdoor installations
- IK10 vandal-resistant metal housing
- Three-axis adjustment with pan, tilt and rotation control
Professional Installation Requirements
- Installation should be carried out by a suitably qualified security or low-voltage installer. Use compatible 12VDC power equipment, correctly terminated coaxial cabling and a compatible DVR/XVR. Where required by local regulations, security cabling and equipment installation must be completed by appropriately licensed personnel.
Applications
- Residential CCTV surveillance
- Commercial and retail security systems
- Building entrances and exits
- Car parks, loading areas and driveways
- Warehouses and industrial premises
- Schools, offices and public facilities
- Outdoor areas requiring vandal-resistant camera protection
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance systems for security applications, general system requirements
- AS/NZS 62676.3:2020 – Analog and digital video interfaces
- AS/NZS 62676.5:2020 – Data specifications and image quality performance for camera devices
Environmental Benefits
- Low maximum power consumption of 4.2W helps reduce operating energy use
- Durable metal, IP67 and IK10 construction can extend service life and reduce replacement waste
- Designed for use with existing compatible coaxial CCTV infrastructure, which may reduce the need for complete system replacement
Warranty Information
Typically supplied with a limited 3-year manufacturer warranty through authorised distribution channels; confirm coverage, regional eligibility and purchase requirements with the Australian distributor.
Available Now
Available through Hikvision and authorised Australian security equipment distributors, subject to current model availability.
