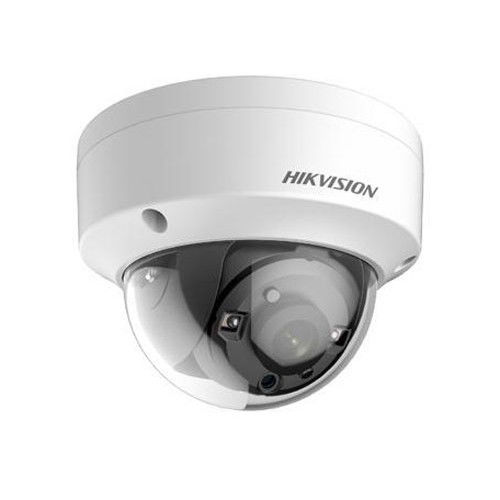

Dome Camera 8MP TVI IR 2.8mm DS-2CE57U8T-VPIT Hikvision
Hikvision TVI IR dome camera features 8MP resolution and a 2.8mm lens. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Turbo HD Dome Camera, 4K Analogue CCTV Dome Camera, TVI Security Dome Camera, Ultra-Low Light Dome Camera
Technical Specifications
- Image Resolution: 3840 × 2160 pixels
- Image Sensor: 8.29 megapixel progressive-scan CMOS
- Lens: 2.8mm fixed focal length, M12 mount
- Horizontal Field of View: 102.2°
- Video Standard: PAL/NTSC
- Frame Rate: 8MP at up to 12.5fps PAL or 15fps NTSC
- Minimum Illumination: 0.003 lux at F1.2, AGC on; 0 lux with IR
- Infrared Range: Up to 40m with EXIR 2.0 smart IR
- Wide Dynamic Range: 120dB true WDR
- Noise Reduction: 3D digital noise reduction
- Video Outputs: HD-TVI and CVBS via BNC
- Communication: Up-the-coax HIKVISION-C protocol
- Power Supply: 12V DC ±25%
- Maximum Power Consumption: 4.8W
- Operating Temperature: -40°C to 60°C
- Ingress Protection: IP67
- Impact Protection: IK10
- Housing Material: Metal
- Dimensions (H x L x W): 84.7mm x 110.8mm x 110.8mm
- Weight: 0.45 kg
Key Features
- 8MP 4K resolution for detailed surveillance images
- 2.8mm wide-angle lens with 102.2° horizontal field of view
- Ultra-low-light imaging for improved performance in dark environments
- Smart IR illumination up to 40m with automatic adjustment to reduce overexposure
- 120dB true WDR for scenes with strong backlighting
- 3D digital noise reduction for clearer video in low-light conditions
- Dual HD-TVI and CVBS video output options
- IP67 protection against dust and water ingress
- IK10-rated impact-resistant housing
- Adjustable pan, tilt and rotation for flexible positioning
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or low-voltage technician. Follow the manufacturer's installation instructions and applicable Australian requirements for CCTV system design, cabling, power supplies and local security licensing.
Applications
- Residential CCTV security systems
- Commercial premises and retail surveillance
- Warehouses, workshops and industrial sites
- Building entrances, driveways and perimeter monitoring
- Indoor and outdoor security installations requiring impact and weather resistance
- Upgrading compatible HD-TVI analogue CCTV systems
Standards & Compliance
- Applicable CCTV system requirements: AS/NZS 62676.1.1:2020
- Applicable video transmission requirements: AS/NZS 62676.1.2:2020
- Applicable analogue and digital video interface requirements: AS/NZS 62676.3:2020
- Applicable CCTV selection, planning and installation guidance: AS/NZS 62676.4:2020
- Applicable camera image-quality performance guidance: AS/NZS 62676.5:2020
Environmental Benefits
- Maximum power consumption of 4.8W helps reduce operating energy use compared with higher-power surveillance equipment
- IP67 and IK10 protection can help extend service life and reduce premature replacement waste
- Metal housing materials may be recoverable through appropriate metal recycling streams at end of life
Warranty Information
Warranty is subject to the applicable Australian distribution contract and proof of purchase. Hikvision's published RMA policy lists a 24-month default warranty for analogue cameras, while Australian authorised distributors commonly provide 3-year back-to-base coverage; confirm the selling distributor's terms.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to regional stock and product lifecycle status.
