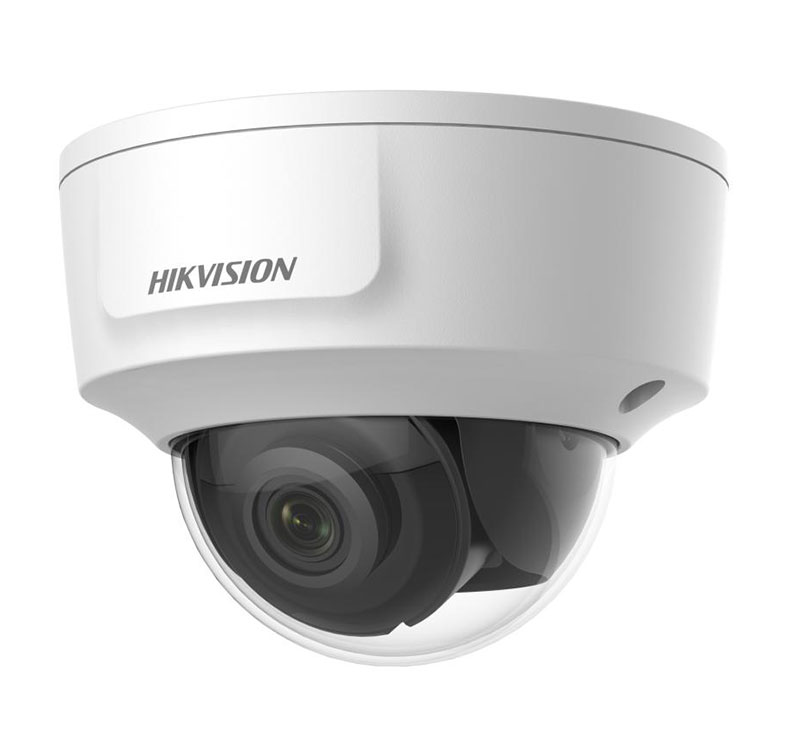

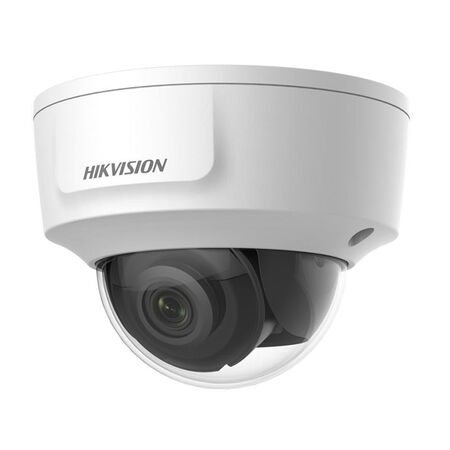

Dome Camera 8MP with HDMI 2.8mm Hikvision
Hikvision dome camera features 8MP resolution, HDMI output and a 2.8mm lens. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 4K HDMI Fixed Dome Network Camera, AcuSense 8MP Dome CCTV Camera, 8MP HDMI IP Dome Camera
Technical Specifications
- Resolution: 8MP, 3840 x 2160
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Fixed 2.8mm lens, F1.6 aperture
- Field of View: 108° horizontal, 58° vertical, 133° diagonal
- Video Compression: H.265, H.265+, H.264, H.264+ and MJPEG
- Frame Rate: Up to 25fps at 3840 x 2160 in 50Hz mode
- Wide Dynamic Range: 120dB true WDR
- Minimum Illumination: 0.003 lux in colour mode; 0 lux with IR
- Infrared Range: Up to 30m
- HDMI Output: Type D HDMI, up to 1080p local live view
- Storage: MicroSD, microSDHC or microSDXC up to 512GB
- Network Interface: 10/100 self-adaptive RJ45 Ethernet
- Power Supply: 12V DC or PoE IEEE 802.3af Class 3
- Maximum Power Consumption: 10W via PoE
- Audio: One audio input and one audio output
- Alarm I/O: One alarm input and one alarm output
- Protection Rating: IK10 vandal resistance
- Operating Conditions: -10°C to 40°C; up to 95% relative humidity, non-condensing
- Dimensions (H x L x W): 90mm x 119mm x 119mm
- Weight: 0.44 kg
Key Features
- 8MP 4K image resolution for detailed surveillance footage
- Direct HDMI output for local live viewing on a compatible monitor
- 2.8mm fixed wide-angle lens for broad-area coverage
- 120dB true WDR for scenes with strong backlighting
- Infrared night vision up to 30m with smart supplementary lighting
- H.265+ compression helps reduce bandwidth and storage requirements
- Human and vehicle target detection for motion events and perimeter protection
- Built-in microphone, audio input/output and alarm input/output
- MicroSD recording support up to 512GB
- Full-metal housing with IK10 vandal resistance
- Supports both 12V DC power and PoE networking
Professional Installation Requirements
- Installation should be performed by a suitably qualified security-system or electrical contractor. Configure PoE or 12V DC power, Ethernet cabling, HDMI equipment and any alarm connections in accordance with manufacturer instructions and applicable Australian wiring and installation requirements, including AS/NZS 3000 where mains-powered equipment is involved.
Applications
- Indoor CCTV surveillance
- Retail stores and commercial premises
- Office buildings and reception areas
- Entryways, corridors and access-control points
- Warehouses and light industrial facilities
- Local-monitoring installations requiring direct HDMI camera output
Standards & Compliance
- RCM approval references AS/NZS CISPR 32:2015 for electromagnetic compatibility
- AS/NZS 62676 series is applicable to video surveillance systems used for security applications; system-level compliance depends on the complete installation and commissioning
Environmental Benefits
- H.265+ compression can reduce network bandwidth and storage capacity requirements compared with less efficient codecs
- Metal construction and IK10 vandal resistance support a longer service life and may reduce replacement waste
- RoHS compliance information is specified by the manufacturer for the product range
- PoE operation can simplify cabling by carrying power and data over a single Ethernet connection
Warranty Information
Typically supplied in Australia with a 3-year warranty through authorised distributors; confirm coverage, regional firmware eligibility and warranty conditions with the supplying distributor. Hikvision's separate 5-year warranty programme applies only to listed premium project-oriented product series.
Available Now
Available through Hikvision and authorised Australian security, electrical and surveillance-equipment distributors.
