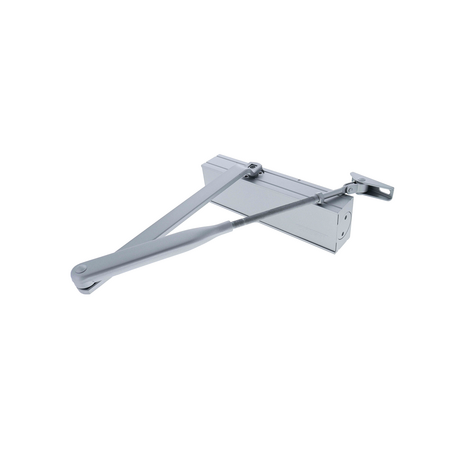

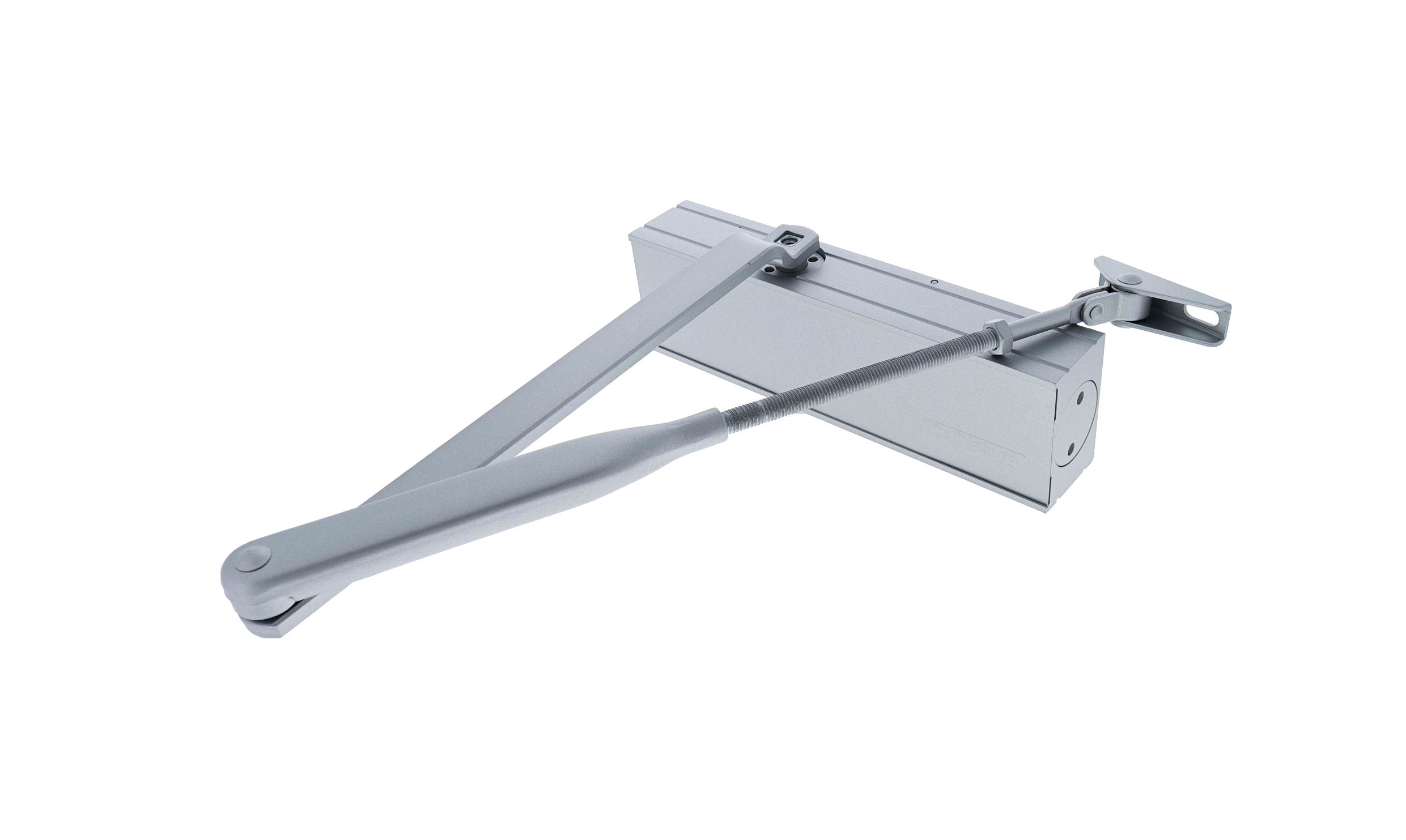

Door Closer CDC-5 Radius EN2-6 | 40kg-120kg Capacity | Adjustable Speed & Backcheck | Silver by Firebox
The CDC-5 Radius EN2-6 door closer is designed for doors weighing 40kg to 120kg, featuring adjustable closing speed and backcheck for controlled operation. Ideal for fire-rated and commercial applications, it ensures compliance with safety standards while providing durable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Door Closer CDC-5 Radius EN2-6 | 40kg-120kg Capacity | Adjustable Speed & Backcheck | Silver by Firebox
Brand: Firebox
SKU: CDC-5-S
Alternatively Known As: Firebox CDC-5 Door Closer, Carbine Radius Door Closer, EN2-6 Door Closer, Fire Rated Door Closer
Technical Specifications
- Fire rated for 2 hours
- Material: 6061 grade aluminium
- Tested to EN1154 standards
- Cycle tested to 500,000 cycles
- Standard arm 180 degree opening
- Parallel arm 130 degree opening
- Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)
- Hold open 130 degree opening (180 degree, hold open angle 70-150 degree CDC-5)
- Adjustable closing & latching speed
- Adjustable back check 70 to 90 degrees
- Thermo-constant valve
- Surface mount and transom mount on push side
- Rack & pinion mechanism
- Positional mounting for closer strength
- Supplied with standard and parallel arm fittings
- Single-action door compatibility
- Non-handed installation
- Supplied with timber and self-drilling metal screws
- Slide rail arms include hold open insert
- Adjustable power size 2-6
- Parallel bracket mount on size 3-5
- Max door width 1400mm
- Size 2 for door width 850mm and weight 40kg
- Size 3 for door width 950mm and weight 60kg
- Size 4 for door width 1100mm and weight 80kg
- Size 5 for door width 1250mm and weight 100kg
- Size 6 for door width 1400mm and weight 120kg
- Adjustable delayed action
- Body size 256.5mm x 60mm x 48mm
- Available in silver and matte black finish
- Dimensions (H x L x W): 60mm x 256.5mm x 48mm
- Weight: 1.5 kg
Key Features
- Fire rated for 2 hours
- Constructed from 6061 grade aluminium
- Tested to EN1154 standards
- Cycle tested to 500,000 cycles
- Adjustable closing and latching speed
- Adjustable back check from 70 to 90 degrees
- Thermo-constant valve for consistent performance
- Surface mount and transom mount on push side
- Rack and pinion mechanism
- Non-handed installation
- Supplied with standard and parallel arm fittings
- Adjustable power size 2-6
- Adjustable delayed action
Professional Installation Requirements
- Professional installation by a qualified technician or locksmith is recommended to ensure compliance with fire safety and operational standards.
Applications
- Commercial and residential doors requiring controlled closing
- Fire-rated doors needing compliance with safety standards
- Single-action doors with surface or transom mount installation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminium construction reduces need for frequent replacements
- Adjustable settings optimize door operation, reducing energy loss through doors
Warranty Information
Warranty details available upon request from the manufacturer or supplier.
Available Now
The Carbine CDC-5 Radius EN2-6 door closer is available for immediate purchase, ideal for fire-rated and commercial door applications.
