Door Closer EN2-4 40kg-80kg | Fire Rated 2 Hours | Adjustable Speed & Backcheck | Silver by Firebox

BRAND: Firebox
SKU: CDC-3-S
$178.60 List price: $216.20
+ −
30 Days Return Delivery Options

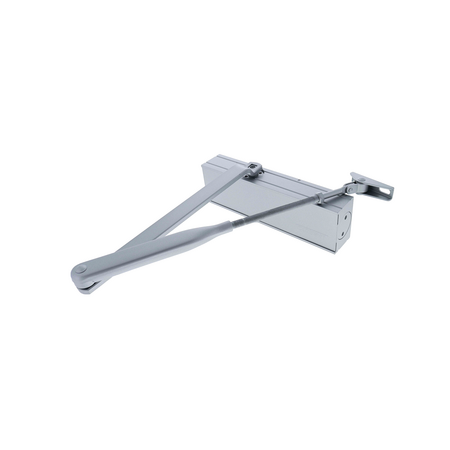

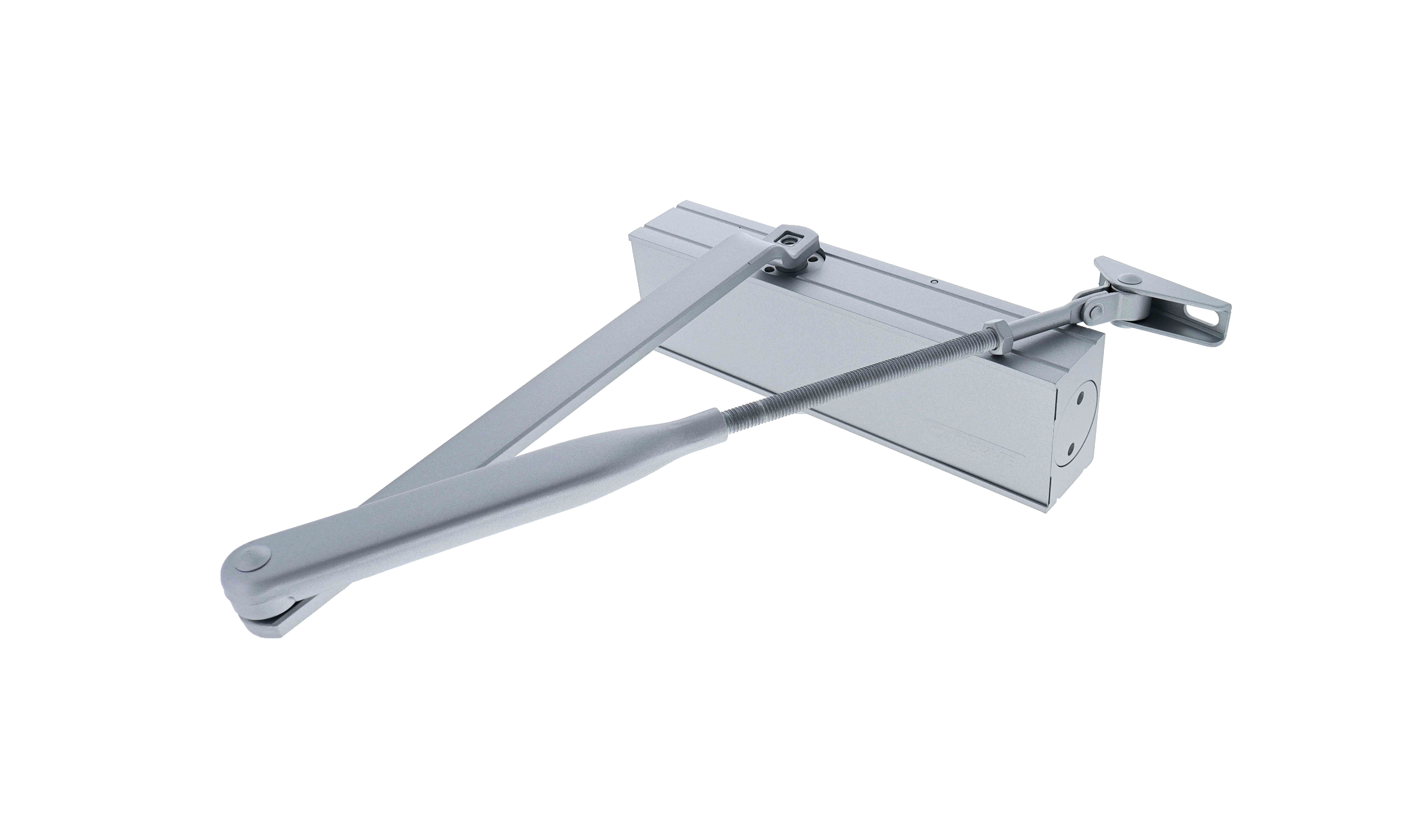

The Carbine CDC-3 Radius EN2-4 door closer is designed for doors weighing 40kg to 80kg, offering 2-hour fire protection and adjustable closing speed. Ideal for commercial and residential applications, it features a durable aluminium construction and is tested to EN1154 standards for reliable performance.

Product Name/Title: Door Closer EN2-4 40kg-80kg | Fire Rated 2 Hours | Adjustable Speed & Backcheck | Silver by Firebox

Brand: Firebox

SKU: CDC-3-S

Alternatively Known As: Door Closer, Fire Rated Door Closer, Aluminium Door Closer, EN2-4 Door Closer, Backcheck Door Closer

Technical Specifications
  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminium
  • Tested to EN1154 standards
  • Cycle tested to 500,000 cycles
  • Standard arm 180 degree opening
  • Parallel arm 130 degree opening
  • Sliding arm pull 180 degree, push 110 degree opening
  • Hold open 130 degree opening
  • Adjustable closing and latching speed
  • Adjustable back check 70 to 90 degrees
  • Thermo-constant valve
  • Surface mount and transom mount on push side
  • Rack and pinion mechanism
  • Positional mounting for closer strength
  • Supplied with timber and self-drilling metal screws
  • Non-handed installation
  • Adjustable power size 2-4
  • Max door width 1100mm
  • Dimensions (H x L x W): 60mm x 236mm x 39mm
  • Weight: 1.5 kg
Key Features
  • Fire rated for 2 hours
  • Constructed from 6061 grade aluminium
  • Tested to EN1154 standards
  • Cycle tested to 500,000 cycles
  • Adjustable closing and latching speed
  • Adjustable back check from 70 to 90 degrees
  • Thermo-constant valve for consistent performance
  • Surface mount and transom mount on push side
  • Rack and pinion mechanism
  • Non-handed installation
  • Supplied with standard and parallel arm fittings
  • Slide rail arms include hold open insert
  • Adjustable power size 2-4
Professional Installation Requirements
  • Professional installation by a qualified tradesperson is recommended to ensure compliance with fire safety and operational standards.
Applications
  • Commercial and residential doors requiring controlled closing
  • Fire-rated doors needing 2-hour fire protection
  • Single-action doors with widths up to 1100mm
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Thermo-constant valve ensures energy-efficient door operation
Warranty Information

Warranty details available upon request from the manufacturer or supplier.

Available Now

The Carbine CDC-3 Radius EN2-4 door closer is available for immediate purchase, ideal for fire-rated and commercial door applications.
