Door Coupling Rotary Handle | Lockable with Padlock | IP66 Protection | Black by Eaton
Enhance safety with the Eaton NZM1-XTVDV door coupling rotary handle, featuring a lockable design with padlock capability and IP66 protection. Ideal for industrial and commercial switchgear panels, it ensures secure operation of circuit breakers through closed doors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

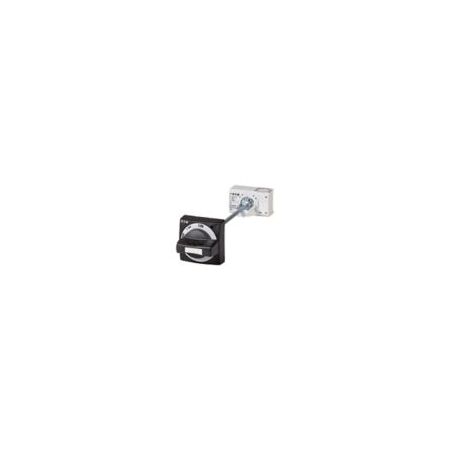

Product Name/Title: Door Coupling Rotary Handle | Lockable with Padlock | IP66 Protection | Black by Eaton
Brand: Eaton
SKU: Y7-260172
Alternatively Known As: Door coupling rotary handle, Molded case circuit breaker handle, NZM1 rotary handle, Lockable circuit breaker handle
Technical Specifications
- Product Name: Eaton Moeller series NZM operating element
- Catalog Number: 260172
- Color: Black
- Fitted with: Padlock
- Frame: NZM1
- Suitable for: Switch disconnector Power circuit breaker
- Cover/door type: Door interlock not defeated in locked OFF and ON positions; door can be opened in OFF position
- Lock number: Double lockable
- Locking facility: Modifiable on handle in I position with door interlock; lockable on the handle using up to 3 padlocks
- Type: Accessory Door coupling rotary handle
- Special features: External warning plate/designation label can be clipped on; complete including rotary drive and coupling parts; extension shaft additionally required
- Degree of protection / NEMA enclosure type: IP66, 4X, 12
- Compliance: IEC UL/CSA RoHS conform
- Certifications: CSA (File No. 22086), IEC60947, CE marking, UL listed, CSA-C22.2 No. 5-09, CSA certified, UL489, UL (File No. E140305), UL (Category Control Number DIHS), CSA (Class No. 1437-01)
- Dimensions (H x L x W): 190mm x 75mm x 90mm
- Weight: 0.638 kg
Key Features
- Lockable door coupling rotary handle for operating the switch through a closed control panel door
- Double lockable handle with facility for up to 3 padlocks
- Door interlock not defeated in locked OFF and ON positions
- External warning plate/designation label can be clipped on
- Complete including rotary drive and coupling parts; extension shaft additionally required
- IP66, NEMA 4X, 12 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration with switchgear.
Applications
- Used with NZM1(-4), PN1(-4), N(S)1(-4) switch disconnectors and power circuit breakers
- Suitable for industrial and commercial electrical switchgear panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables secure and safe operation of electrical switchgear, reducing risk of electrical faults and associated environmental hazards
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton NZM1-XTVDV door coupling rotary handle is available for immediate purchase, ideal for enhancing safety and operability of molded case circuit breakers in industrial and commercial electrical panels.
