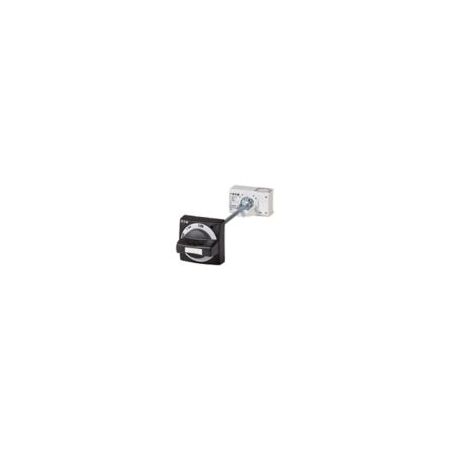

Door Coupling Rotary Handle for NZM2 Circuit Breaker | Lockable with Padlocks | IP66 Protection | Black by Eaton
Enhance your switchgear operation with the door coupling rotary handle for NZM2 circuit breakers, featuring lockable functionality with up to 3 padlocks and IP66 protection. Ideal for control panels, this accessory ensures secure operation and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Door Coupling Rotary Handle for NZM2 Circuit Breaker | Lockable with Padlocks | IP66 Protection | Black by Eaton
Brand: Eaton
SKU: Y7-260174
Alternatively Known As: Door coupling rotary handle for NZM2 circuit breaker, Molded case circuit breaker handle, Lockable rotary handle switch accessory
Technical Specifications
- Product Name: Eaton Moeller series NZM operating element
- Catalog Number: 260174
- Compliances: IEC UL/CSA RoHS conform
- Color: Black
- Fitted with: Padlock
- Frame: NZM2
- Suitable for: Switch disconnector Power circuit breaker
- Cover/door type: Door interlock can be modified in the unlocked ON position; Door interlock not defeated in locked OFF and ON positions; Door can be opened in OFF position; Door interlock can be modified to be defeated from outside using a screwdriver
- Lock number: Double lockable
- Locking facility: Modifiable on handle in I position; With door interlock; Lockable on the handle using up to 3 padlocks
- Type: Accessory Door coupling rotary handle
- Special features: Includes rotary drive and coupling parts; Extension shaft additionally required
- Degree of protection / NEMA enclosure type: IP66 4X. 12
- Product Length/Depth: 75 mm
- Product Height: 190 mm
- Product Width: 90 mm
- Product Weight: 0.793 kg
- Dimensions (H x L x W): 190mm x 75mm x 90mm
- Weight: 0.793 kg
Key Features
- Door coupling rotary handle for operating the switch through a closed control panel door
- Lockable on the handle with up to 3 padlocks
- Double lockable with modifiable locking facility on handle in ON (I) position
- Door interlock can be modified to be defeated from outside using a screwdriver
- External warning plate/designation label can be clipped on
- Complete including rotary drive and coupling parts; extension shaft additionally required
- Black color
- Degree of protection: IP66 4X. 12
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration with switchgear.
Applications
- Used with NZM2(-4), PN2(-4), N(S)2(-4) switch disconnectors and power circuit breakers
- Suitable for control panels requiring door coupling rotary handle operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables secure and safe operation of electrical switchgear, reducing risk of electrical faults and improving system reliability
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton NZM2-XTVDV door coupling rotary handle is available for immediate purchase, ideal for use in industrial and commercial electrical switchgear applications.
