Double Cable Pillar Kit | 150 sq mm Copper Lugs | Weather-Sealed Insulation | Three-Phase Compatibility by Cabac

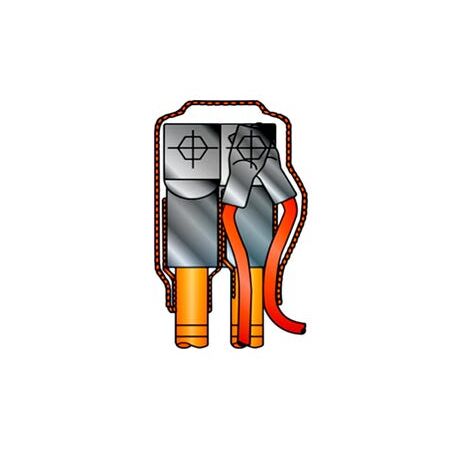

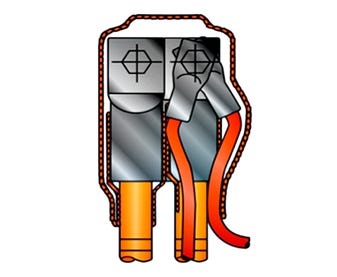

The Cabac Double Cable Pillar Kit with 150 sq mm copper lugs is a comprehensive termination kit designed for three-phase mains cables and neutral in electrical pillars, providing insulated, weather-sealed connections with all necessary components included.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Cable Pillar Kit with Cu 150sq mm Lugs
Brand: Cabac
SKU: CMP2-150
Alternatively Known As: Double Cable Pillar Termination Kit, 150mm2 Copper Lug Pillar Kit, Three Phase Cable Termination Kit, Electrical Pillar Cable Kit
Technical Specifications
- Copper crimp-type lugs for 150 sq mm mains cables and service cables
- Lugs fastened to busbar with stainless steel bolts
- Heatshrink sleeves and end caps for insulation and weather sealing
- Suitable for three-phase mains cables plus neutral
- Configurations: single, two, or three mains cables per phase
- Includes all necessary components for mains and T-off connections
- Optional URD terminal blocks for service cable connections
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 2 kg
Key Features
- Standard 150 sq. mm copper crimp lugs for mains and service cables
- Lugs crimped to cables and fastened to busbar with stainless steel bolts
- Heatshrink sleeves and end caps provide insulated and weather-sealed terminations
- Suitable for one pillar with mains cables for three phases and neutral
- Available in configurations for single, two, or three mains cables per phase
- Includes all items needed for mains and T-off connections
- Optional Cabac URD terminal blocks available for service cable connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper termination.
Applications
- Electrical pillar terminations for three-phase mains cables with neutral
- Suitable for use in electrical power connectivity installations
- Ideal for outdoor pillar cable connections requiring weather-sealed terminations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and weather-sealed design reduce maintenance and replacement frequency
- Efficient electrical connections minimize energy loss
- Heatshrink insulation improves safety and longevity, reducing waste
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Cabac Double Cable Pillar Kit with Cu 150sq mm Lugs is available for immediate purchase, ideal for electrical pillar terminations in residential, commercial, and industrial power distribution.
