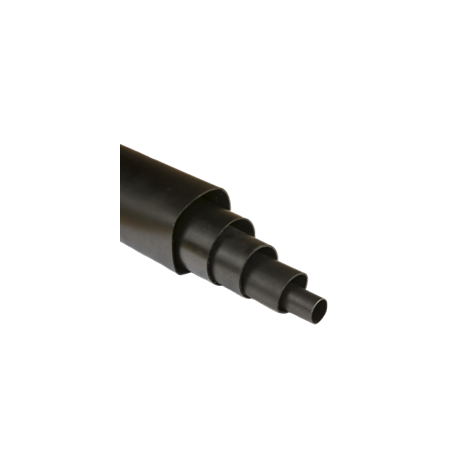

Double Glue Lined Medium Wall Tubing | 3:1 Shrink Ratio | -55°C to +125°C | UV Stabilised by United Manufacturers Australia
Double glue lined medium wall tubing with a 3:1 shrink ratio and operating temperature range of -55°C to +125°C—ideal for electrical insulation and waterproofing. Built for harsh environments, it offers the highest level of waterproofing protection and is UV stabilised for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Glue Lined Medium Wall Tubing | 3:1 Shrink Ratio | -55°C to +125°C | UV Stabilised by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGUL120M
Alternatively Known As: Heat Shrink Tubing, Double Wall Heat Shrink, Glue Lined Heat Shrink Tubing, Medium Wall Heat Shrink Tubing
Technical Specifications
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +125°C
- Flame Retardant: 125°C degree cross-linked
- Length per pack: 1.2 meters
- Size range: 120.0mm to 36.0mm diameter
- UV Stabilised
- Double Glue Lined for enhanced waterproofing
- Dimensions (H x L x W): 120mm x 1200mm x 120mm
- Weight: 0.05 kg
Key Features
- Highest level of waterproofing protection
- 3:1 Shrink Ratio
- UV stabilised
- Operating temperature range from -55°C to +125°C
- 125°C degree flame retardant cross-linked
- Flexible and quick to shrink
- Environmentally friendly and low smoke
- Double Glue Lined for enhanced sealing
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with heat shrink tubing application to ensure proper sealing and protection.
Applications
- Electrical insulation and waterproofing
- Protection of wiring and cable joints
- Environmental sealing in harsh conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Environmentally friendly material with low smoke emission
- Durable and long-lasting protection reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for details.
Available Now
The Double Glue Lined Medium Wall Tubing Length by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical insulation and waterproofing applications.
