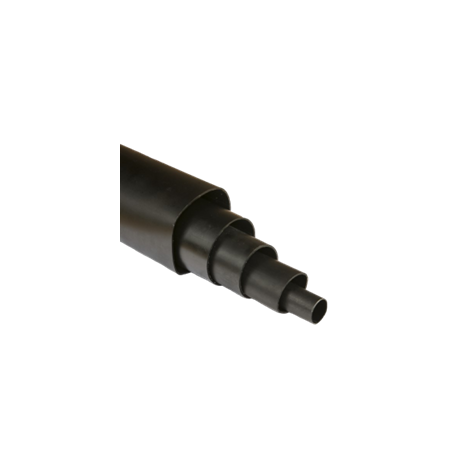

Double Glue Lined Medium Wall Tubing | 3:1 Shrink Ratio | Waterproof & UV Stabilised | 27mm by United Manufacturers Australia
Double glue lined medium wall tubing with a 3:1 shrink ratio and waterproof features—ideal for electrical insulation and cable protection in harsh environments. Built for automotive and marine applications, this tubing offers enhanced sealing and UV stability for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Glue Lined Medium Wall Tubing | 3:1 Shrink Ratio | Waterproof & UV Stabilised | 27mm by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGUL27M
Alternatively Known As: Heat Shrink Tubing, Double Glue Lined Heatshrink, Medium Wall Heat Shrink Tubing, Waterproof Heat Shrink Sleeve
Technical Specifications
- Size range: 27.0mm to 9.0mm after shrink
- Pack quantity: 1.2 meters per length
- Operating temperature: -55°C to +125°C
- Flame retardant up to 125°C
- 3:1 shrink ratio
- UV stabilised
- Double glue lined for enhanced waterproofing
- Cross-linked polyethylene material
- Dimensions (H x L x W): 27mm x 1200mm x 27mm
- Weight: 0.05 kg
Key Features
- Highest level of waterproofing protection
- 3:1 Shrink Ratio
- UV stabilised for outdoor use
- Operating temperature range from -55°C to +125°C
- 125°C flame retardant cross-linked material
- Flexible and quick to shrink
- Environmentally friendly and low smoke
- Double Glue Lined for enhanced sealing
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper shrinkage and sealing.
Applications
- Electrical insulation and waterproofing
- Cable protection in harsh environments
- Automotive wiring harness protection
- Marine and outdoor electrical applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Environmentally friendly material with low smoke emission
- Durable and long-lasting, reducing replacement waste
Warranty Information
Warranty against manufacturing defects as per United Manufacturers Australia standard policy.
Available Now
The Double Glue Lined Medium Wall Tubing Length is available for immediate purchase, ideal for electrical insulation and waterproofing applications.
