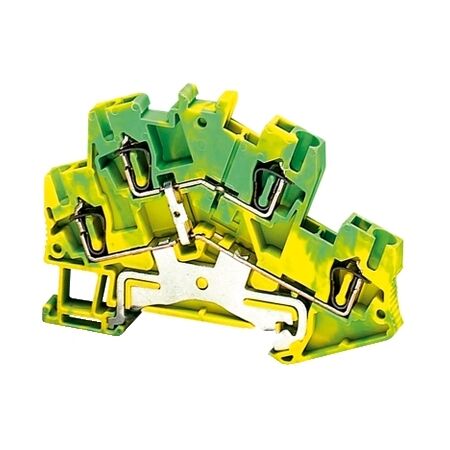

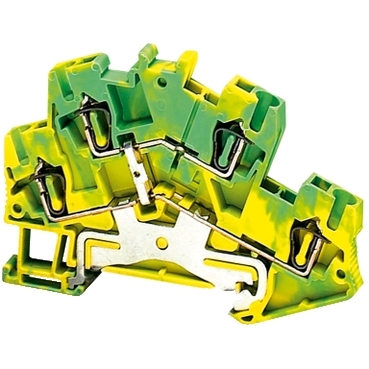

Double Level Spring Terminal Block | 4 Connection Points | Green-Yellow Color | by Clipsal
The Double Level Spring Terminal Block is designed for efficient wiring with 4 connection points and a protective earth (PE) function, featuring a green-yellow color coding. Ideal for industrial control panels and electrical distribution boards, this terminal block ensures secure, maintenance-free connections with its spring clamp technology, making it perfect for automation systems and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Level Spring Terminal Block | 4 Connection Points | Green-Yellow Color | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRR24DPE
Alternatively Known As: Double Level Spring Terminal Block, Linergy TR Terminal Block, Clipsal Spring Terminal, SCHNSYTRR24DPE, PE Terminal Block, Green-Yellow Terminal Block
Technical Specifications
- Type: Double level spring terminal block
- Function: Protective earth (PE)
- Number of levels: 2
- Number of connection points: 4
- Conductor size: 2.5mm²
- Color: Green-yellow
- Mounting: DIN rail
- Material: Polyamide 6.6 (PA66), halogen-free
- Rated voltage: 500V
- Rated current: 24A
- Operating temperature: -40°C to +120°C
- Dimensions (H x L x W): 46mm x 56mm x 6mm
- Weight: 0.1 kg
Key Features
- Double level spring terminal block for efficient wiring
- Protective earth (PE) function with green-yellow color coding
- 4 connection points for versatile wiring options
- 2.5mm² conductor capacity per terminal
- Spring clamp technology for secure, maintenance-free connections
- Compact design for space-saving installation
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with Australian electrical standards and safe operation.
Applications
- Industrial control panels
- Electrical distribution boards
- Automation systems
- Switchboards
- Machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Maintenance-free spring technology minimizes resource use over product life
- Compact design reduces material usage and installation footprint
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Linergy TR Double Level Spring Terminal Block SCHNSYTRR24DPE is available for immediate purchase. Ideal for industrial control panels, switchboards, and electrical distribution systems.
