Linergy, Screw Terminal, Double Level, 4 Points, 4mm² , Grey

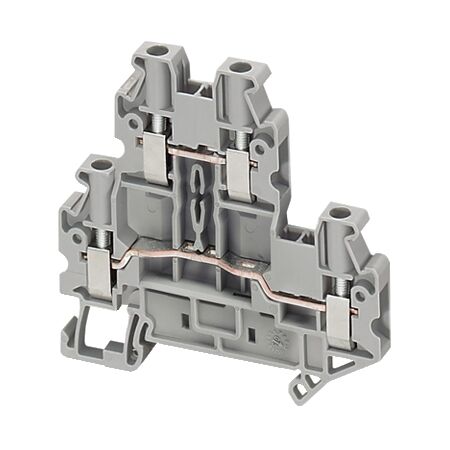

Double Level Terminal Block 4 Points | 4mm² | Grey by Clipsal

BRAND: Clipsal

SKU: NSYTRV44D

$9.20 List price: $11.50

+ −

30 Days Return Delivery Options

Double level terminal block with 4 points and 4mm² capacity—ideal for industrial electrical installations. Built for efficient wiring, compatible with PrismaSeT enclosures, and rated for 600V and 30A.

Description
Attachments

Product Name/Title: Linergy, Screw Terminal, Double Level, 4 Points, 4mm² , Grey

Brand: Clipsal

SKU: NSYTRV44D

Alternatively Known As: Double Level Terminal Block, Linergy Terminal Block, Screw Terminal Block

Technical Specifications

Terminal block type: passthrough
Nominal cross section: 4 mm²
Connections: 1 x screw terminal upstream (M3), 1 x screw terminal downstream (M3)
Wire stripping length: 9 mm
Tightening torque: 0.6...0.8 N.m
Dielectric strength: 1000 V conforming to IEC 60243-1
Flame retardance: V0, thickness 0.8 mm conforming to UL 94
Dimensions (H x L x W): 65mm x 69.9mm x 62mm
Weight: 0.1 kg

Key Features

Double level design with 4 points for efficient wiring.
Compatible with various PrismaSeT enclosures.
Rated operational voltage of 600V and current of 30A.

Professional Installation Requirements

Professional installation is recommended for optimal safety and performance.

Applications

Industrial: Suitable for use in various electrical installations and enclosures.

Standards & Compliance

Complies with EN/IEC 60947-7-1 for safety and performance standards.

Environmental Benefits

Green Premium product status indicates reduced environmental impact.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Screw Terminal Double Level Terminal Block is available now for immediate purchase. Ideal for industrial electrical installations.

NSYTRV44D (NSYTRV44D, 275 Kb) [Download]
