Linergy, Screw Terminal, Double Level, 4 Points, 2,5mm² , Grey

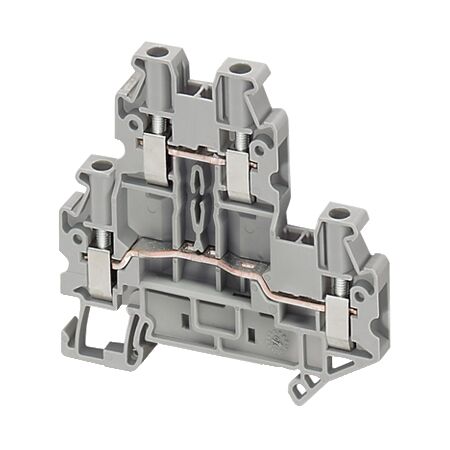

Double Level Terminal Block | 4 Points | Screw Terminal | Grey by Clipsal

BRAND: Clipsal

SKU: NSYTRV24D

$4.50 List price: $5.60

+ −

30 Days Return Delivery Options

Double level terminal block with 4 points and screw terminal connections—ideal for industrial electrical installations. Built for secure and reliable performance, compatible with various Spacial enclosures.

Description
Attachments

Product Name/Title: Linergy, Screw Terminal, Double Level, 4 Points, 2,5mm² , Grey

Brand: Clipsal

SKU: NSYTRV24D

Alternatively Known As: Double Level Terminal Block, Screw Terminal Block, Linergy Terminal Block

Technical Specifications

Rated operational voltage: 600 V CSA, 500 V conforming to EN/IEC 60947-7-1
Rated current: 24 A conforming to EN/IEC 60947-7-1
Material: Polyamide 6/6 insulating case, copper alloy connectors
Ambient air temperature for operation: -40...130 °C
Dielectric strength: 1000 V conforming to IEC 60243-1
Flame retardance: V0, thickness 0.8 mm conforming to UL 94
Dimensions (H x L x W): 65mm x 69.9mm x 5.2mm
Weight: 0.1 kg

Key Features

Double level design with 4 points for efficient wiring.
Screw terminal connections for secure and reliable performance.
Compatible with various Spacial enclosures.

Professional Installation Requirements

Professional installation is recommended for optimal safety and performance.

Applications

Industrial: Suitable for use in various electrical installations and enclosures.

Standards & Compliance

Complies with relevant IEC standards for safety and performance.

Environmental Benefits

Green Premium product status indicates a commitment to sustainability.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Screw Terminal Double Level Terminal Block is available now for immediate purchase. Ideal for industrial electrical installations.

NSYTRV24D (NSYTRV24D, 275 Kb) [Download]
