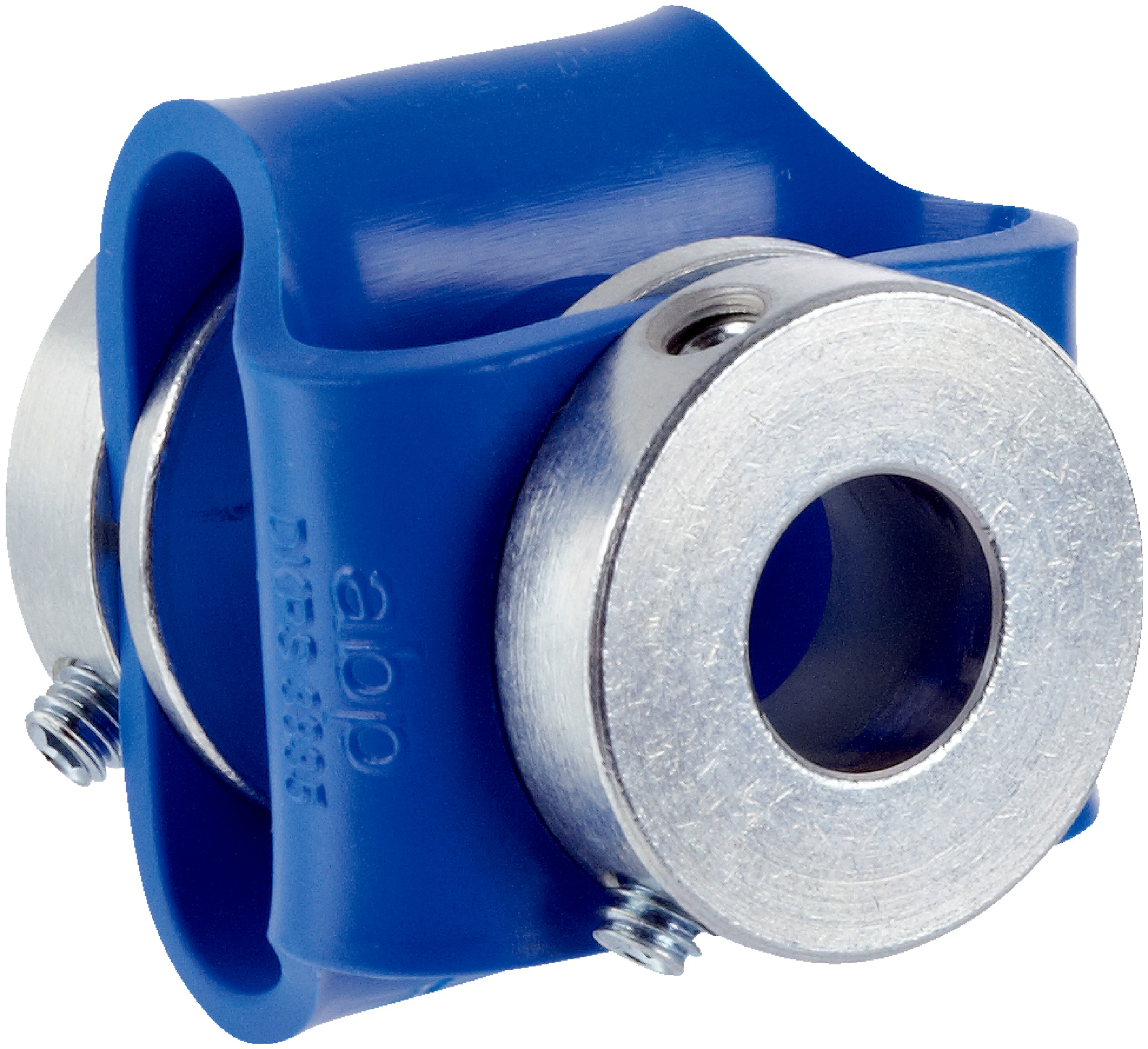

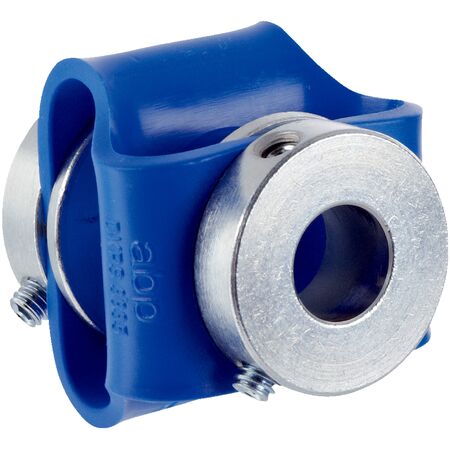

Double-Loop Shaft Coupling KUP-0606-D | 6 mm Diameter | Max Speed 3000 RPM | Max Torque 1.5 Nm | by SICK
The KUP-0606-D Double-Loop Shaft Coupling is designed for efficient mechanical power transmission, featuring a 6 mm shaft diameter and a maximum speed of 3000 RPM. Ideal for industrial machinery and automation applications, it accommodates radial, axial, and angular offsets, ensuring reliable performance in demanding environments. Built with durable polyurethane and galvanized steel, this coupling supports energy efficiency and reduces maintenance needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 6 mm
- Maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°
- Maximum speed: 3,000 rpm
- Operating temperature: –30 °C to +80 °C
- Maximum torque: 1.5 Nm
- Material: polyurethane, galvanized steel flange
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Double-loop coupling design
- Shaft diameter 6 mm / 6 mm
- Maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°
- Maximum speed 3,000 rpm
- Operating temperature range: –30 °C to +80 °C
- Maximum torque 1.5 Nm
- Material: polyurethane with galvanized steel flange
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper alignment and secure fitting.
Applications
- Mechanical power transmission systems
- Shaft adaptation in industrial machinery
- Automation and robotics equipment
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Supports efficient mechanical power transmission reducing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-0606-D Double-Loop Shaft Coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
