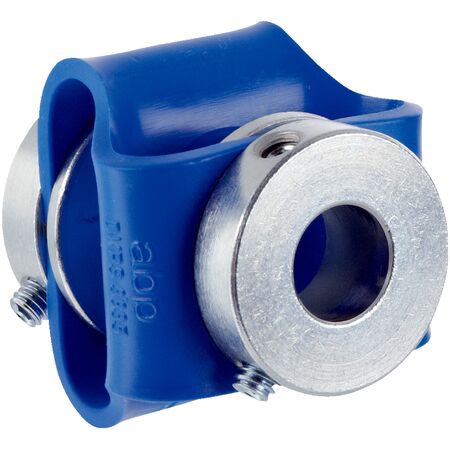

Double-Loop Shaft Coupling KUP-0606-D 6 mm Diameter Max Speed 3000 RPM SICK

BRAND: SICK
SKU: 5340152
$89.90 List price: $113.00
+ −
30 Days Return Electricians Unlock Trade Access
The KUP-0606-D Double-Loop Shaft Coupling is designed for efficient mechanical power transmission, featuring a 6 mm shaft diameter and a maximum speed of 3000 RPM.
Technical Specifications
  • Shaft diameter: 6 mm / 6 mm
  • Maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°
  • Maximum speed: 3,000 rpm
  • Operating temperature: –30 °C to +80 °C
  • Maximum torque: 1.5 Nm
  • Material: polyurethane, galvanized steel flange
  • Dimensions (H x L x W): 40mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • Double-loop coupling design
  • Shaft diameter 6 mm / 6 mm
  • Maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°
  • Maximum speed 3,000 rpm
  • Operating temperature range: –30 °C to +80 °C
  • Maximum torque 1.5 Nm
  • Material: polyurethane with galvanized steel flange
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper alignment and secure fitting.
Applications
  • Mechanical power transmission systems
  • Shaft adaptation in industrial machinery
  • Automation and robotics equipment
Standards & Compliance
  • AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Supports efficient mechanical power transmission reducing energy loss
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.

Available Now

The SICK KUP-0606-D Double-Loop Shaft Coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
