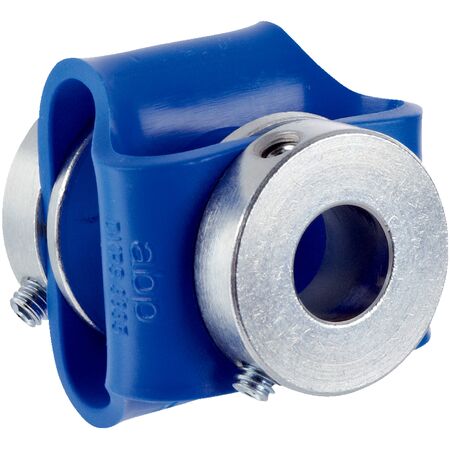

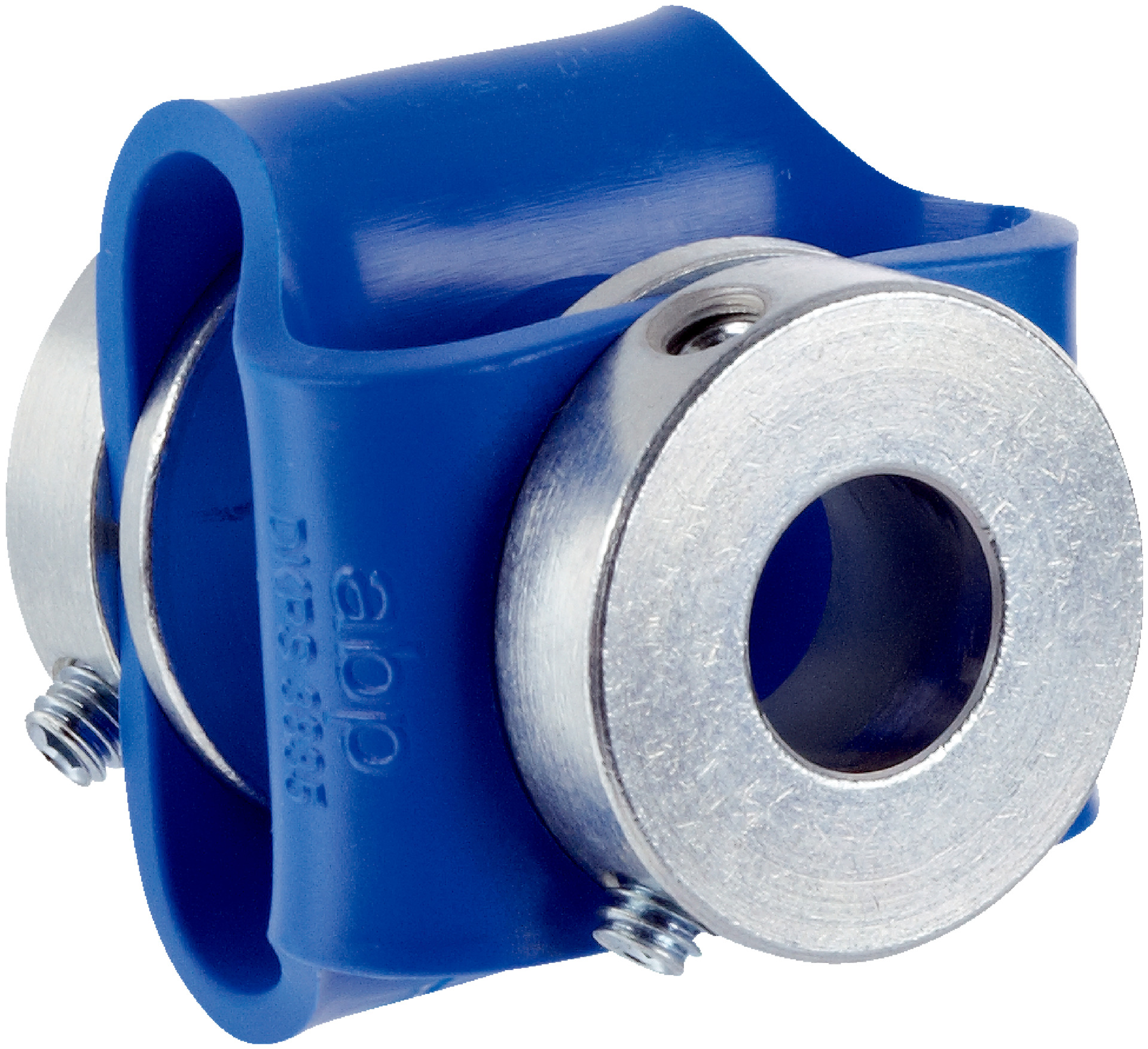

Double Loop Shaft Coupling KUP-0610-D | 6mm & 10mm Compatibility | Max Speed 3000 RPM | by SICK
The Double Loop Shaft Coupling KUP-0610-D is designed for efficient mechanical power transmission, accommodating shaft diameters of 6 mm and 10 mm. With a maximum speed of 3,000 rpm and a robust operating temperature range of -30°C to +80°C, this coupling is perfect for industrial machinery and applications requiring shaft adaptation and misalignment compensation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 6 mm / 10 mm
- Max shaft offset: radial ±2.5 mm, axial ±3 mm, angular ±10°
- Max speed: 3,000 rpm
- Operating temperature: -30°C to +80°C
- Torsional spring stiffness: 25 Nm/rad
- Max torque: 1.5 Nm
- Material: polyurethane, galvanized steel flange
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Double loop coupling design
- Shaft diameter compatibility: 6 mm and 10 mm
- Maximum shaft offset: radial ±2.5 mm, axial ±3 mm, angular ±10°
- Maximum speed: 3,000 rpm
- Operating temperature range: -30°C to +80°C
- Torsional spring stiffness: 25 Nm/rad
- Maximum torque: 1.5 Nm
- Material: polyurethane with galvanized steel flange
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper alignment and secure fitting.
Applications
- Mechanical power transmission systems
- Industrial machinery requiring shaft adaptation
- Equipment needing compensation for shaft misalignment
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
- Efficient torque transmission reduces energy losses in mechanical systems.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-0610-D Double Loop Shaft Coupling is available for immediate purchase, ideal for industrial and mechanical shaft adaptation applications.
