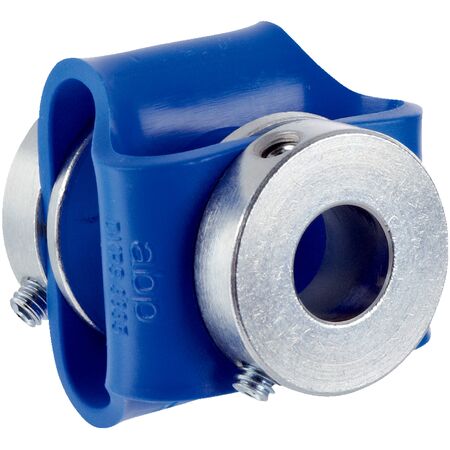

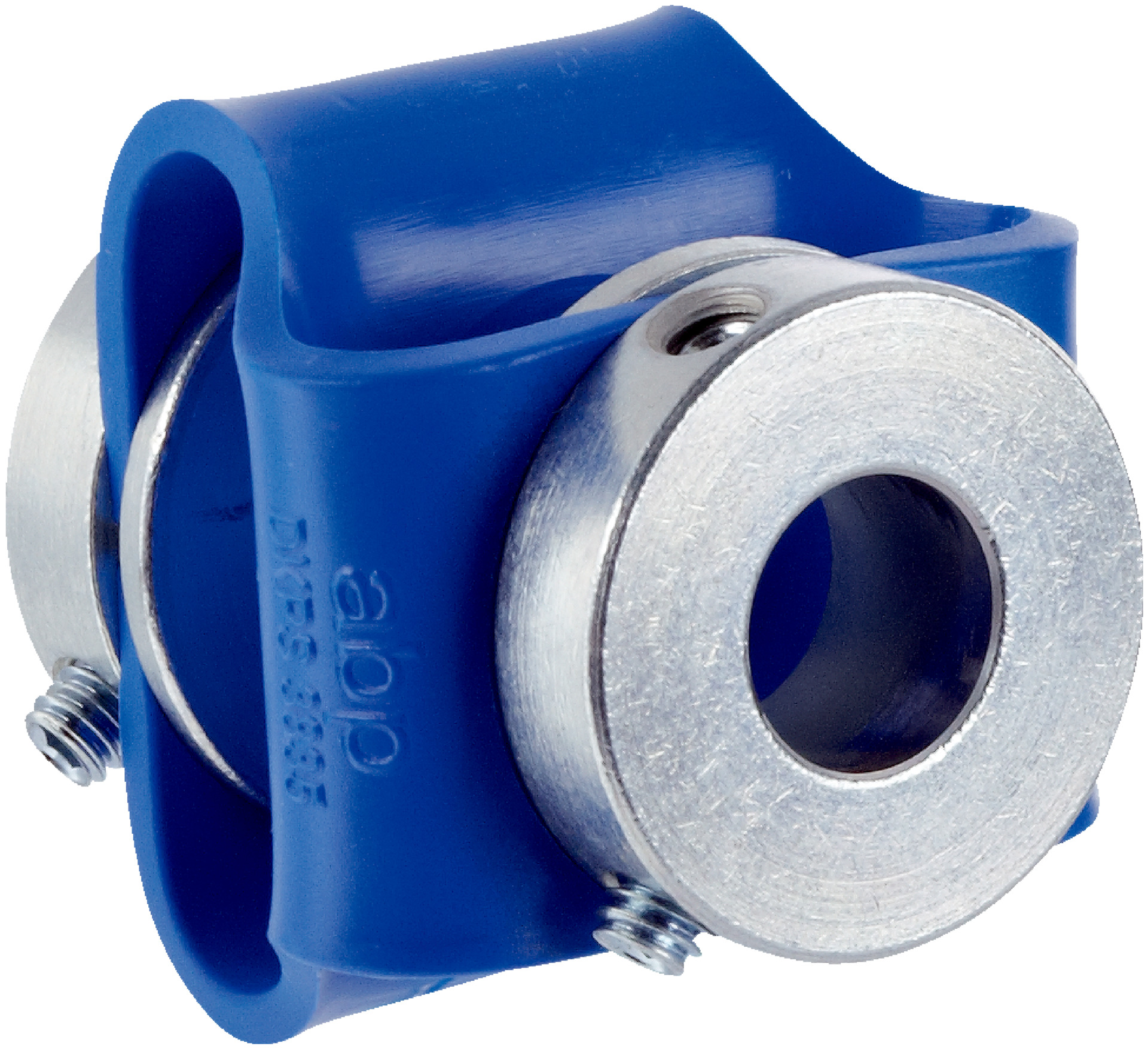

Double Loop Shaft Coupling KUP-0810-D | 8mm & 10mm Compatibility | Max Speed 10,000 RPM | by SICK
The Double Loop Shaft Coupling KUP-0810-D is designed for seamless industrial machinery shaft adaptation, featuring compatibility with 8 mm and 10 mm shaft diameters. With a maximum speed of 10,000 RPM and a robust polyurethane construction, it ensures efficient power transmission and minimal energy loss, making it ideal for mechanical applications requiring precise alignment and torque settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 8 mm / 10 mm
- Max shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angle +/- 4 degrees
- Max speed: 10,000 rpm
- Operating temperature: -30°C to +120°C
- Torsional spring stiffness: 150 Nm/rad
- Max torque: 1.5 Nm
- Material: polyurethane, galvanized steel flange
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Double loop coupling design
- Shaft diameter compatibility: 8 mm and 10 mm
- Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°
- Maximum speed: 3,000 rpm
- Temperature range: -30°C to +80°C
- Torsional spring stiffness: 150 Nm/rad
- Material: polyurethane with galvanized steel flange
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper alignment and torque settings.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission
- Rotational equipment requiring shaft coupling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Efficient torque transmission reduces energy loss
Warranty Information
Standard manufacturer warranty applies, typically 12 months against defects.
Available Now
The SICK KUP-0810-D Double Loop Shaft Coupling is available for immediate purchase, ideal for industrial shaft adaptation and mechanical power transmission applications.
