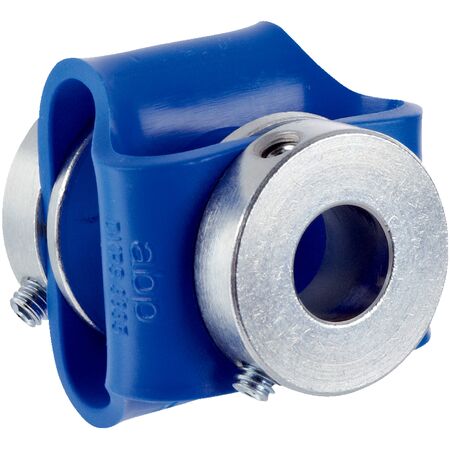

Double Loop Shaft Coupling KUP-0810-D 8mm & 10mm Compatibility Max Speed 10,000 RPM SICK

BRAND: SICK
SKU: 5326704
$89.90 List price: $113.00
+ −
30 Days Return Electricians Unlock Trade Access
The Double Loop Shaft Coupling KUP-0810-D is designed for seamless industrial machinery shaft adaptation
Technical Specifications
  • Shaft diameter: 8 mm / 10 mm
  • Max shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angle +/- 4 degrees
  • Max speed: 10,000 rpm
  • Operating temperature: -30°C to +120°C
  • Torsional spring stiffness: 150 Nm/rad
  • Max torque: 1.5 Nm
  • Material: polyurethane, galvanized steel flange
  • Dimensions (H x L x W): 50mm x 50mm x 50mm
  • Weight: 0.1 kg
Key Features
  • Double loop coupling design
  • Shaft diameter compatibility: 8 mm and 10 mm
  • Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°
  • Maximum speed: 3,000 rpm
  • Temperature range: -30°C to +80°C
  • Torsional spring stiffness: 150 Nm/rad
  • Material: polyurethane with galvanized steel flange
Professional Installation Requirements
  • Installation by qualified mechanical technician recommended to ensure proper alignment and torque settings.
Applications
  • Industrial machinery shaft adaptation
  • Mechanical power transmission
  • Rotational equipment requiring shaft coupling
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable materials reduce replacement frequency and waste
  • Efficient torque transmission reduces energy loss
Warranty Information

Standard manufacturer warranty applies, typically 12 months against defects.

Available Now

The SICK KUP-0810-D Double Loop Shaft Coupling is available for immediate purchase, ideal for industrial shaft adaptation and mechanical power transmission applications.
