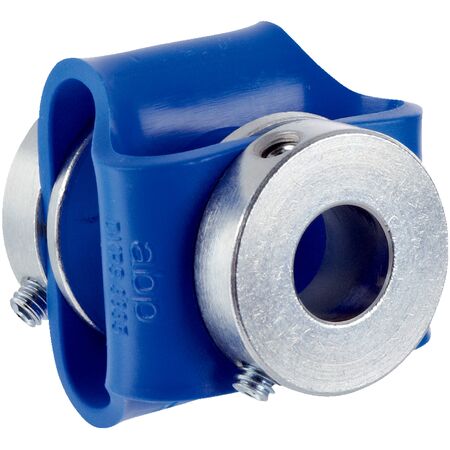

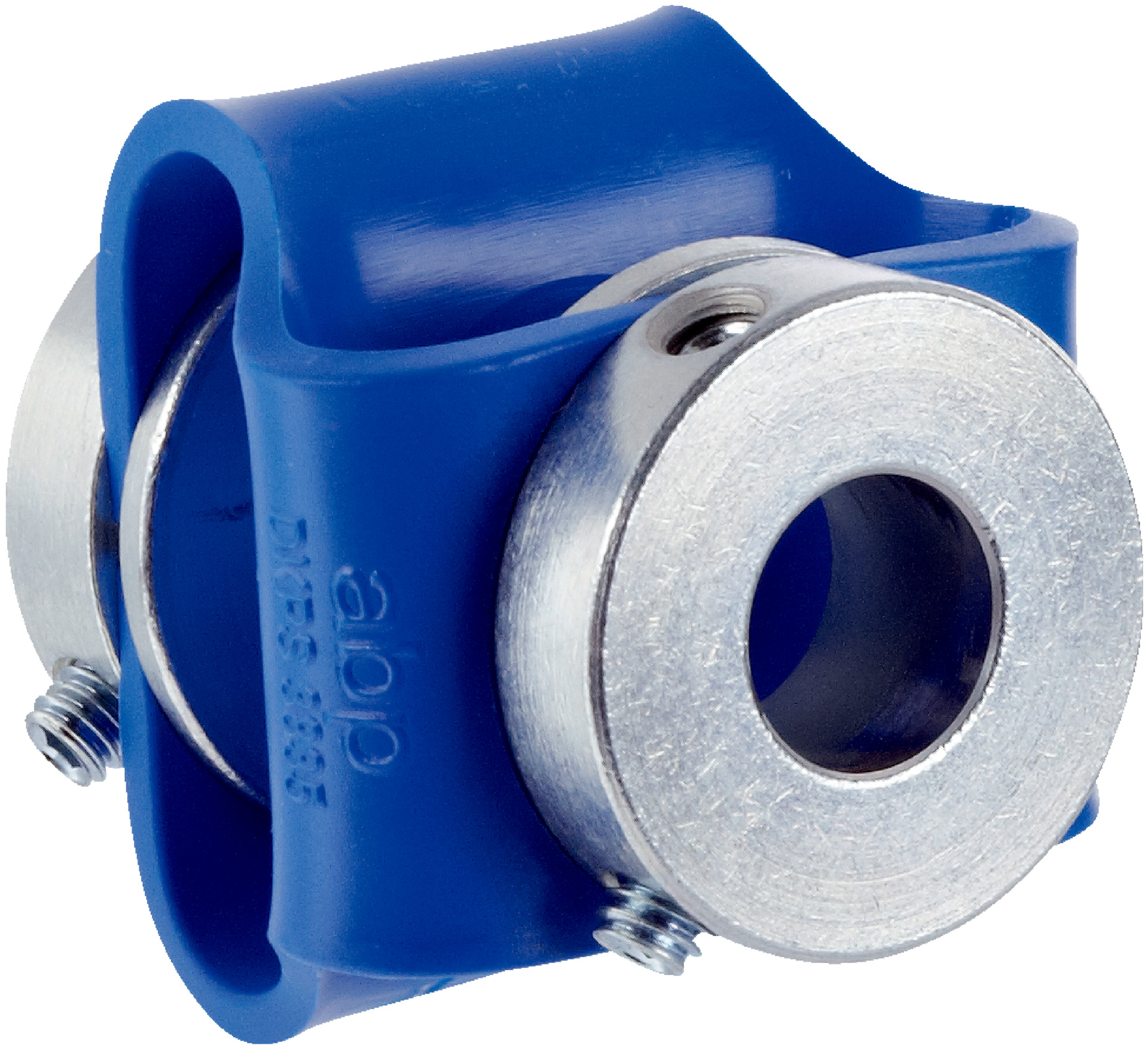

Double Loop Shaft Coupling KUP-1010-D | 10 mm Diameter | Max Speed 3000 RPM | Max Torque 1.5 Nm | by SICK
The KUP-1010-D Double Loop Shaft Coupling is designed for efficient shaft adaptation in industrial machinery and automation systems. With a 10 mm diameter and capable of handling maximum speeds of 3000 RPM, it ensures reliable performance with a maximum torque of 1.5 Nm. Built from durable polyurethane and galvanized steel, this coupling is perfect for applications requiring precise shaft alignment and secure coupling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 10 mm
- Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°
- Maximum speed: 3,000 rpm
- Operating temperature: –30° to +80 °C
- Maximum torque: 1.5 Nm
- Material: polyurethane, galvanized steel flange
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Double loop coupling design
- Shaft diameter 10 mm / 10 mm
- Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°
- Maximum speed 3,000 rpm
- Operating temperature range –30° to +80 °C
- Maximum torque 1.5 Nm
- Material: polyurethane with galvanized steel flange
Professional Installation Requirements
- Installation by qualified mechanical technician recommended to ensure proper shaft alignment and secure coupling.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission systems
- Automation equipment requiring shaft coupling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Efficient torque transmission reduces energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KUP-1010-D Double Loop Shaft Coupling is available for immediate purchase, ideal for industrial and automation shaft adaptation applications.
