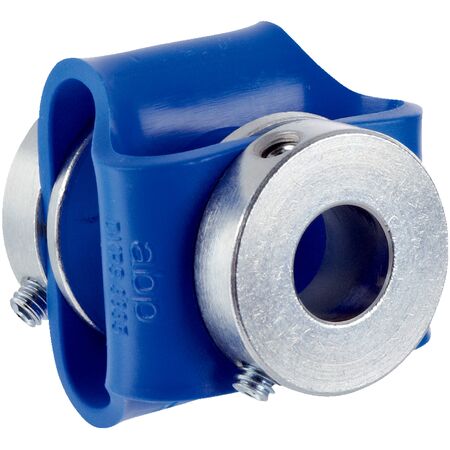

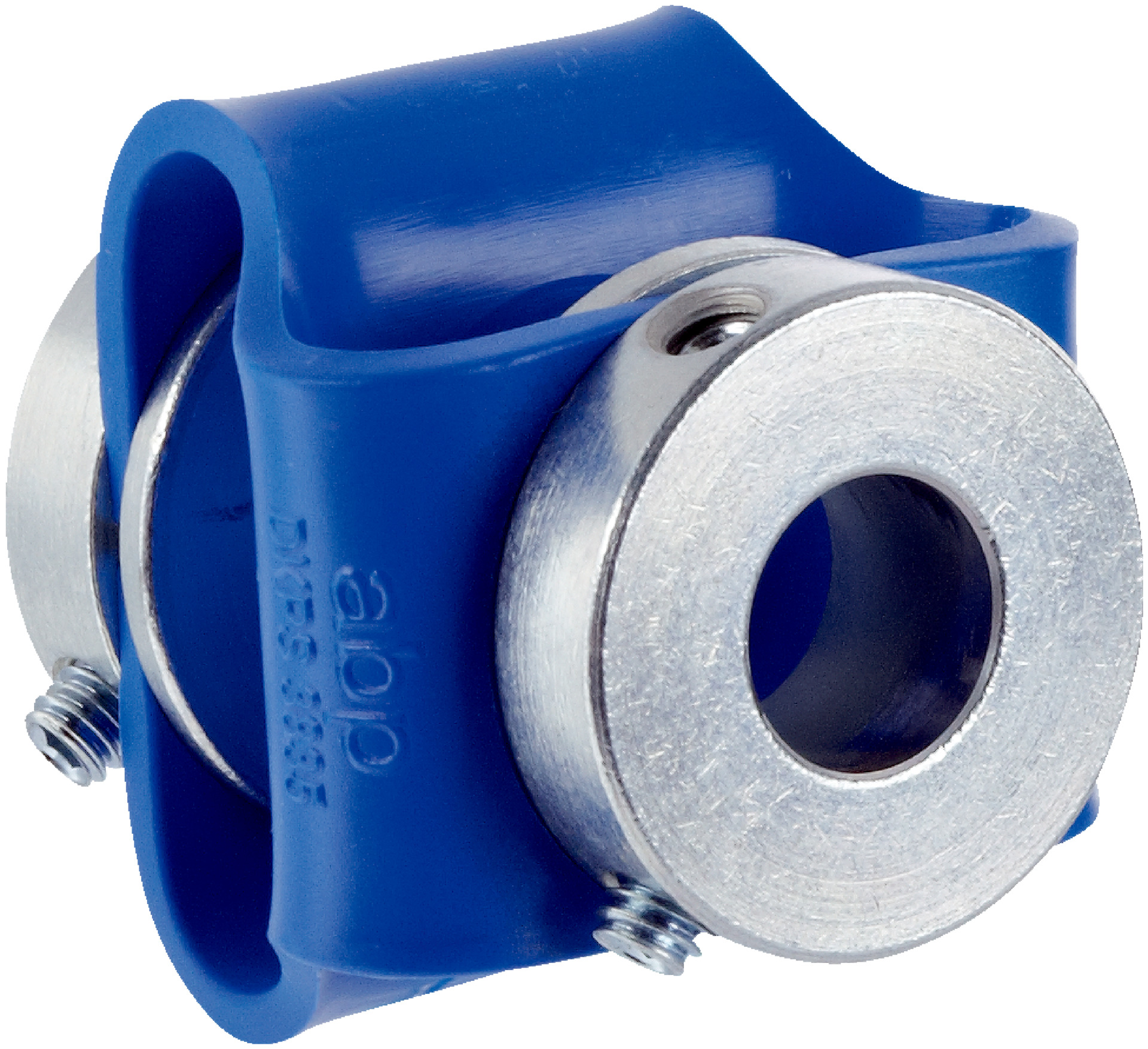

Double Loop Shaft Coupling KUP-1012-D | 10mm/12mm Compatibility | 3000 RPM Max Speed | by SICK
The Double Loop Shaft Coupling KUP-1012-D is designed for effective shaft adaptation in industrial machinery, accommodating shaft diameters of 10 mm and 12 mm. With a maximum speed of 3,000 rpm and a robust polyurethane construction, it ensures reliable performance even under challenging conditions. Ideal for mechanical power transmission systems, this coupling compensates for shaft misalignment, making it a perfect choice for engineers and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Shaft diameter: 10 mm / 12 mm
- Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°
- Maximum speed: 3,000 rpm
- Operating temperature: –30° to +80 °C
- Maximum torque: 1.5 Nm
- Material: polyurethane, galvanized steel flange
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Double loop coupling design
- Shaft diameter compatibility: 10 mm / 12 mm
- Maximum shaft offset: radial +/- 2.5 mm, axial +/- 3 mm, angular +/- 10°
- Maximum speed: 3,000 rpm
- Operating temperature range: –30° to +80 °C
- Maximum torque: 1.5 Nm
- Material: polyurethane with galvanized steel flange
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper shaft alignment and coupling performance.
Applications
- Industrial machinery shaft adaptation
- Mechanical power transmission systems
- Equipment requiring shaft misalignment compensation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Efficient torque transmission minimizes energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK KUP-1012-D Double Loop Shaft Coupling is available for immediate purchase, ideal for industrial and mechanical shaft adaptation applications.
