Double Maglock Monitored 12/24VDC | 500kg Holding Force | Fail-Safe Design | by Dicker Data

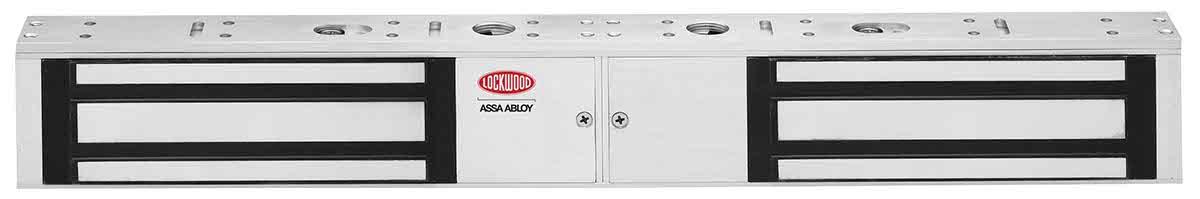

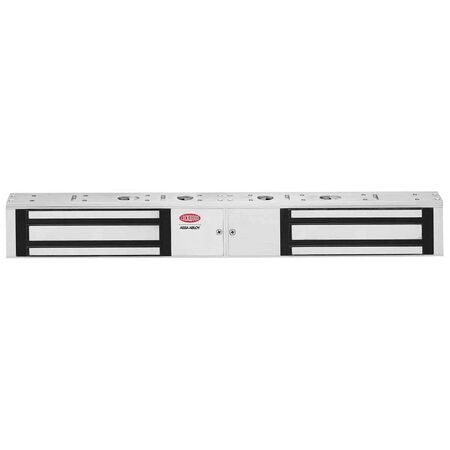

The LOCKWOOD EMZ4-DM Double Maglock is a monitored electromagnetic lock designed for both commercial and residential access control. With a robust holding force of 500kg to 560kg and dual voltage options of 12Vdc or 24Vdc, it ensures reliable security. Ideal for aluminum and double swing doors, this fail-safe lock features easy installation and silent operation, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Maglock Monitored 12/24VDC | 500kg Holding Force | Fail-Safe Design | by Dicker Data
Brand: Dicker Data
SKU: 770300-112
Alternatively Known As: Double Electromagnetic Lock, Double Maglock, Monitored Maglock, Access Control Maglock
Technical Specifications
- Holding Force: 500kg - 560kg
- Voltage: 12Vdc/24Vdc ±10%
- Current: 900mA @ 12Vdc, 450mA @ 24Vdc
- Monitoring: Hall-Effect/Bond sensing Reed Switch
- Operating Temperature: -10 to 55 Degrees Celsius
- Operating Humidity: 0 - 95%
- Fire Rating: Successfully fire rated up to 4hrs on fire door assemblies per AS1905.1. 2005

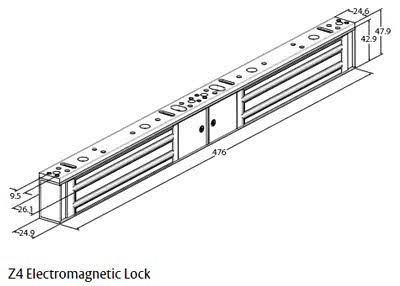

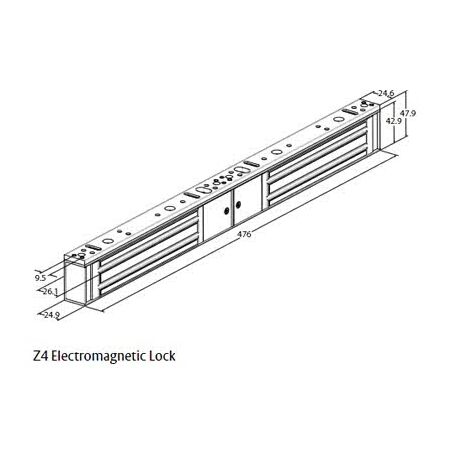

- Dimensions (H x L x W): 48mm x 27mm x 476mm
- Weight: 3.5 kg
Key Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- High holding force: 500kg - 560kg
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Monitoring: Hall-Effect and Reed Switch monitoring on all models
- Instantaneous release: Smart electronics eliminate residual magnetism
Professional Installation Requirements
- Professional installation by a qualified locksmith or security system installer is recommended to ensure proper mounting, wiring, and compliance with fire safety standards.
Applications
- Aluminium doors
- Double swing doors
- Access control
- Surface mount for inswing and outswing doors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Fire rating compliance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
Environmental Benefits
- Energy-efficient electromagnetic locking reduces power consumption during operation
- Durable design minimizes replacement frequency and waste
Warranty Information
5 year warranty provided by the manufacturer.
Available Now
The LOCKWOOD EMZ4-DM Double Maglock is available for immediate purchase, ideal for commercial and residential access control applications requiring monitored electromagnetic locking.
