Trade Discount 33%
Double Pole Switch 1-Way | 250V 10AX | Pro Series by Clipsal
Double pole switch with 1-way mechanism and 250V 10AX rating—ideal for commercial buildings. Built for efficient circuit control, with seamless integration into the Pro Series Grid.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

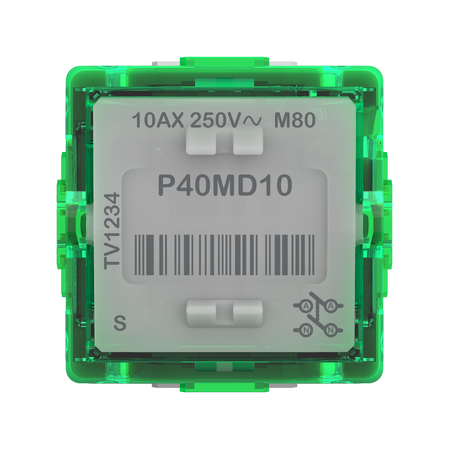

Product Name/Title: Pro Series Switch Mechanism 1-Way, Double Pole, 250V, 10AX
Brand: Clipsal
SKU: P40MD10
Alternatively Known As: Double Pole Switch, 1-Way Switch, 10AX Switch
Technical Specifications
- Switch Mechanism: 1-Way, Double Pole
- Rated Current: 10A
- Rated Voltage: 250V
- Material: PC (polycarbonate), PA66, ABS
- Control Type: Rocker
- Clamping Connection Capacity: 1 x 1.5...4 x 1.5 mm² for rigid or stranded cables
- Ambient Air Temperature for Operation: 0...45 °C
- Relative Humidity: 10...95%
- Dimensions (H x L x W): 23mm x 33mm x 23mm
- Weight: 0.016 kg
Key Features
- Controls two circuits with one switch.
- Seamless design fits into the Pro Series Grid.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Suitable for use in commercial buildings requiring efficient circuit control.
Standards & Compliance
- Complies with RCM certification.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Pro Series Double Pole Switch is available now for immediate purchase. Ideal for commercial applications requiring efficient circuit control.
