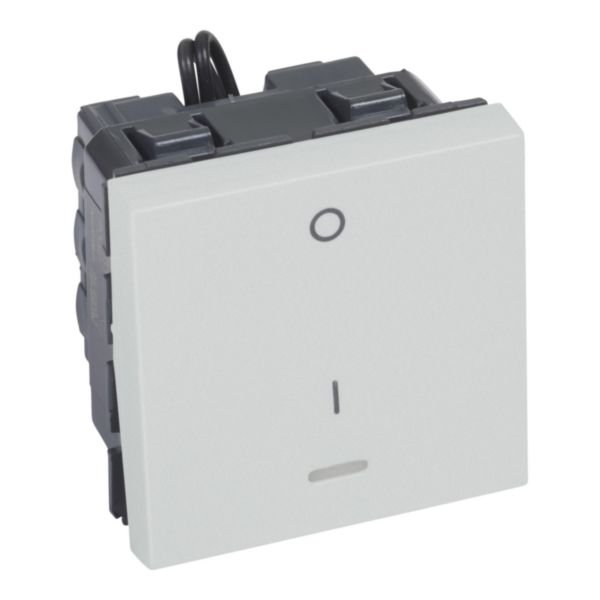

1-Way Double Pole Switch with Indicator | 20 AX 250 V~ | Soft Aluminium Finish | @EA of 1 | by Legrand
The 1-way double pole switch with indicator is perfect for controlling electrical circuits in residential and commercial settings. Rated for 20 AX and 250 V~, this switch features a stylish soft aluminium finish and an illuminated LED indicator for easy visibility. Built with halogen-free thermoplastic, it ensures safety and durability, making it an ideal choice for any electrical installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-Way Double Pole Switch with Indicator | 20 AX 250 V~ | Soft Aluminium Finish | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572188
Alternatively Known As: Double Pole Light Switch with Indicator, 20A Double Pole Switch, Legrand Arteor Switch, Illuminated Double Pole Switch
Technical Specifications
- Switch type: 1-way double pole
- Rated current: 20 A
- Rated voltage: 250 V AC
- Switching current for fluorescent lamps: 20 AX
- Material: Halogen free thermoplastic
- Surface finish: Matt aluminium
- Protection rating: IP40
- Impact resistance: IK04
- Connection type: Screwed terminal
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Cable section compatibility: 6-6 mm²
- Mounting: Modular device with snap fastening
- Lighting: LED exchangeable indicator
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 1-way double pole switch with indicator LED
- Rated for 20 AX, 250 V~
- Square design with soft aluminium finish
- 2 modules wide
- Illuminated on/off indicator with exchangeable LED
- Halogen free thermoplastic material
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Screw terminal connection for secure wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Home electrical wiring and lighting control
- Commercial: Office and retail electrical installations
- Industrial: Control of electrical circuits requiring double pole switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- LED indicator consumes low power, enhancing energy efficiency
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 1-way double pole switch with indicator is available for immediate purchase, ideal for residential and commercial electrical wiring applications.
