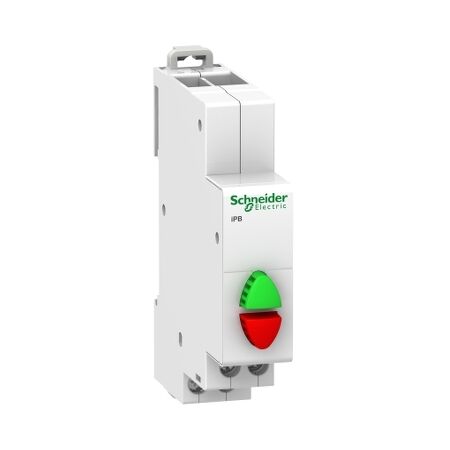

Double Push Button Switch 1NO-1NC | 20A 250V | Green/Red by Clipsal
Double push button switch with 1NO-1NC contacts and 20A, 250V rating—ideal for small commercial and residential electrical circuits. Built for easy installation with staggered terminals and modular design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Double push-button, 1NO-1NC green/red
Brand: Clipsal
SKU: A9E18034
Alternatively Known As: Acti9 Push Button, Double Push Button Switch, Modular Push Button
Technical Specifications
- Rated operational current: 20 A
- Rated operational voltage: 250 V AC
- Electrical durability: AC-22: 30000 cycles AC 50/60 Hz
- Wire stripping length: 9 mm
- Relative humidity: 95 % at 55 °C
- Ambient air temperature for operation: -35...70 °C
- Ambient air temperature for storage: -40...80 °C
- Dimensions (H x L x W): 82mm x 71.5mm x 18mm
- Weight: 0.046 kg
Key Features
- Modular push-button design with one normally open and one normally closed contact.
- Staggered terminals for simplified connection.
- Tightening torque of connection is 1N.m.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Small commercial and residential electrical circuits control.
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Complies with IEC 60947-5-1 and IEC 60669-1 standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Acti9 Double Push-Button Switch Green/Red is available now for immediate purchase. Ideal for small commercial and residential electrical circuit control.
