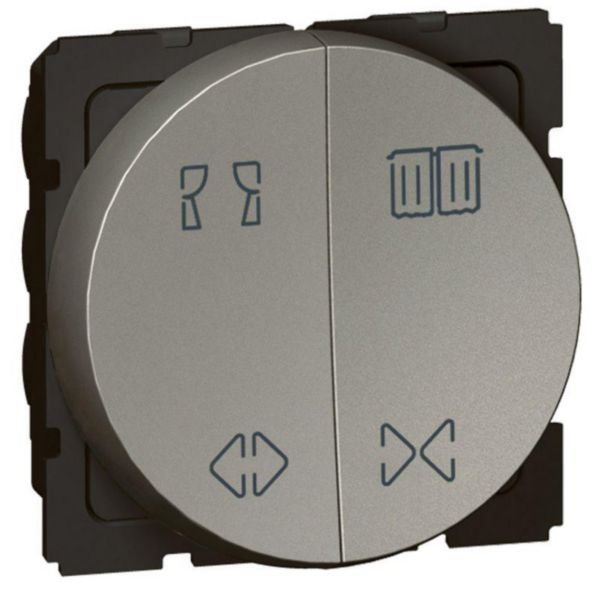

Double Switch for Curtain Control | 10 A Rated Current | 2 Round Modules | Glossy Magnesium Finish | @Each of 1 | by Legrand
The Double Switch for Curtain Control is designed for seamless operation of curtain motors, featuring a rated current of 10 A and a nominal voltage of 250 V. Ideal for both residential and commercial applications, this switch integrates easily into home automation systems, providing a stylish and functional solution for controlling curtains with its glossy magnesium finish and secure screwed terminal connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Switch for Curtain Control | 10 A Rated Current | 2 Round Modules | Glossy Magnesium Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 573735
Alternatively Known As: Curtain Control Switch, Double Curtain Switch, Motorized Curtain Switch, Legrand Curtain Switch
Technical Specifications
- Rated current: 10 A
- Nominal voltage: 250 V
- Number of buttons: 2
- Mounting method: Module frame
- Material: Thermoplastic
- Colour: Magnesium (Grey RAL 7016)
- Degree of protection: IP20
- Impact strength: IK04
- Operating temperature: -20°C to 40°C
- Connection type: Screwed terminal
- Halogen free: Yes
- Surface finishing: Glossy
- Assembly arrangement: Basic element
- Model: 1-pole switch
- Method of operation: Rocker
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- Double switch for direct control of curtain motors with fixed positions
- Rated current of 10 A and nominal voltage of 250 V
- 2 round modules with rocker operation
- Made with thermoplastic material, magnesium color with glossy finish
- Screwed terminal connection type for secure wiring
- IP20 degree of protection suitable for indoor use
- Halogen free and untreated surface protection
- Label space available for identification
- Impact resistance rating IK04
- Operating temperature range from -20°C to 40°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with curtain motor systems.
Applications
- Residential: Curtain motor control in homes
- Commercial: Curtain control in offices, hotels, and public buildings
- Home automation systems integration
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact during disposal
- Durable thermoplastic construction extends product lifespan
- Energy-efficient control reduces unnecessary power consumption
Warranty Information
Legrand offers a standard warranty of 2 years against manufacturing defects for this product.
Available Now
The Legrand Arteor Double Switch for Curtain Control is available for immediate purchase, ideal for residential and commercial curtain motor control applications.
