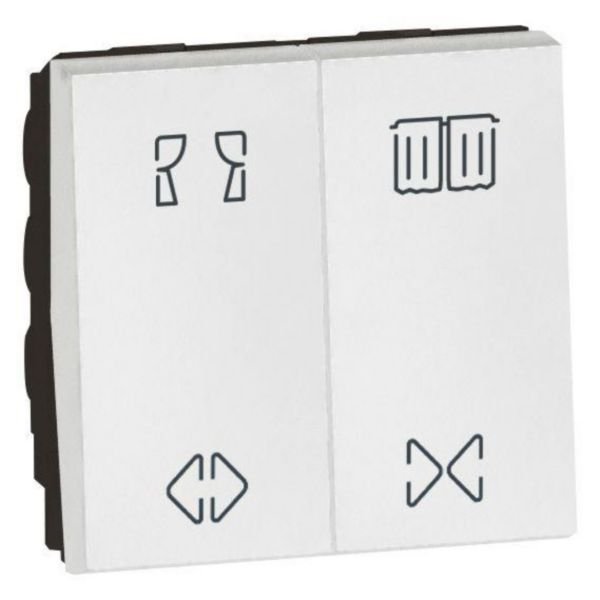

Double Switch for Curtain Control | 10 A Rated Current | IP20 & IK04 Protection | Glossy White | @Each of 1 | by Legrand
The Double Switch for Curtain Control is designed for seamless operation of curtain motors, featuring a rated current of 10 A and a nominal voltage of 250 V. Ideal for residential and commercial applications, this switch is made from halogen-free thermoplastic and offers IP20 protection, ensuring durability and safety. With its sleek glossy white finish, it integrates perfectly into any decor while providing reliable control for your curtains.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Double Switch for Curtain Control | 10 A Rated Current | IP20 & IK04 Protection | Glossy White | @Each of 1 | by Legrand
Brand: Legrand
SKU: 573234
Alternatively Known As: Curtain Control Switch, Double Curtain Switch, Motorized Curtain Switch, Legrand Curtain Switch
Technical Specifications
- Rated current: 10 A
- Nominal voltage: 250 V
- Number of buttons: 2
- Material: Thermoplastic, halogen free
- Degree of protection: IP20
- Impact strength: IK04
- Operating temperature range: -20 to 40 °C
- Connection type: Screwed terminal
- Mounting method: Module frame
- Device dimensions: 45 mm width x 45 mm height x 42 mm depth
- Dimensions (H x L x W): 45mm x 42mm x 45mm
- Weight: 0.1 kg
Key Features
- Double switch for direct control of curtain motors with fixed positions
- Rated current of 10 A and nominal voltage of 250 V
- Rocker operation with 2 buttons
- Glossy white thermoplastic material, halogen free
- IP20 degree of protection and IK04 impact strength
- Screwed terminal connection for secure wiring
- Compatible with standard module frame mounting
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper motor control functionality.
Applications
- Curtain motor control in residential homes
- Curtain control in hotels and commercial buildings
- Integration in home automation systems (non-smart compatible)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product lifespan
Warranty Information
Legrand offers a standard 3-year warranty covering manufacturing defects.
Available Now
The Legrand Arteor Double Switch for Curtain Control 10A 2 Modules White is available for immediate purchase, ideal for residential and commercial curtain motor control applications.
