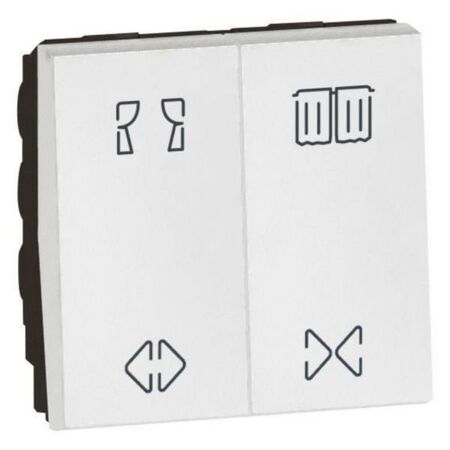

Double Switch for Curtain Control 10 A Rated Current IP20 & IK04 Protection Legrand

BRAND: Legrand
SKU: 573234
$60.60 List price: $75.50
1 EA ($60.60 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Double Switch for Curtain Control is designed for seamless operation of curtain motors, featuring a rated current of 10 A and a nominal voltage of 250 V.
Technical Specifications
  • Rated current: 10 A
  • Nominal voltage: 250 V
  • Number of buttons: 2
  • Material: Thermoplastic, halogen free
  • Degree of protection: IP20
  • Impact strength: IK04
  • Operating temperature range: -20 to 40 °C
  • Connection type: Screwed terminal
  • Mounting method: Module frame
  • Device dimensions: 45 mm width x 45 mm height x 42 mm depth
  • Dimensions (H x L x W): 45mm x 42mm x 45mm
  • Weight: 0.1 kg
Key Features
  • Double switch for direct control of curtain motors with fixed positions
  • Rated current of 10 A and nominal voltage of 250 V
  • Rocker operation with 2 buttons
  • Glossy white thermoplastic material, halogen free
  • IP20 degree of protection and IK04 impact strength
  • Screwed terminal connection for secure wiring
  • Compatible with standard module frame mounting
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper motor control functionality.
Applications
  • Curtain motor control in residential homes
  • Curtain control in hotels and commercial buildings
  • Integration in home automation systems (non-smart compatible)
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free materials reduce environmental impact
  • Durable thermoplastic construction extends product lifespan
Warranty Information

Legrand offers a standard 3-year warranty covering manufacturing defects.

Available Now

The Legrand Arteor Double Switch for Curtain Control 10A 2 Modules White is available for immediate purchase, ideal for residential and commercial curtain motor control applications.

F00742EN-04 (F00742EN-04.pdf, 335 Kb) [Download]

LE01560AB (LE01560AB.pdf, 293 Kb) [Download]

ex223001_0590 (ex223001_0590.pdf, 148 Kb) [Download]
