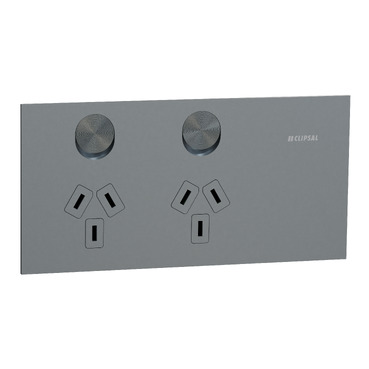

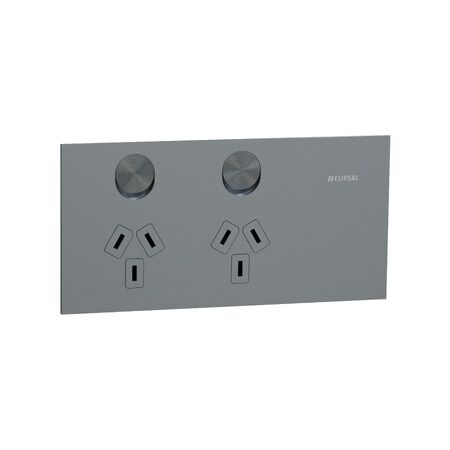

Double Switch Power Point | Horizontal Mount | 10A Rated | Shuttered Safety | @Each of 1 | by Clipsal
The Double Switch Power Point from the Clipsal Solis T Series features a horizontal mount and a rated current of 10A, making it ideal for residential and commercial applications. With shuttered socket outlets for enhanced safety and a polished white ceramic finish, this power point is perfect for homes, offices, and light industrial environments. Ensure compliance with AS/NZS 3112 standards for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product type: switched socket
- Number of power socket outlets: 2 x 2P + E (Australian/New Zealand standard)
- Control type: rocker switch
- Rated operational voltage: 230/240 V AC
- Rated current: 10 A
- Connections: 4 x 2.5 mm² and 3 x 4 mm² screw terminals
- Mounting: flush, horizontal position
- Embedding depth: 23.5 mm
- Device certifications: RCM
- Ambient operating temperature: 0 to 45 °C
- Relative humidity: 10 to 95%
- Cut-out dimensions: 93 x 50 mm
- Surface finish: polished white ceramic
- Shuttered socket for safety
- Dimensions (H x L x W): 74mm x 27.4mm x 148mm
- Weight: 0.2 kg
Key Features
- Double switched socket with rocker control
- Flush mounting with horizontal orientation
- Shuttered socket outlets for enhanced safety
- Polished white ceramic surface finish with painted treatment
- Rated operational voltage of 230/240 V AC and current of 10 A
- Compliant with AS/NZS 3112 standards
- RCM certified
- Suitable for ambient temperatures from 0 to 45 °C and relative humidity 10-95%
Professional Installation Requirements
- Installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail stores, hospitality venues, office buildings
- Industrial: Light industrial environments requiring standard power outlets
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- RoHS compliant with no toxic heavy metals or mercury
- Packaging made with recycled cardboard
- Designed for long service life reducing waste
Warranty Information
Standard Clipsal warranty applies; typically 2 years against manufacturing defects.
Available Now
The Clipsal Solis T Series Double Switch Power Point in Platinum is available for immediate purchase, ideal for residential, commercial, and light industrial electrical installations.
