DPlus-M Main Board Only Ness

BRAND: Ness
SKU: 110-974
$228.60 List price: $304.80
+ −
30 Days Return Electricians Unlock Trade Access

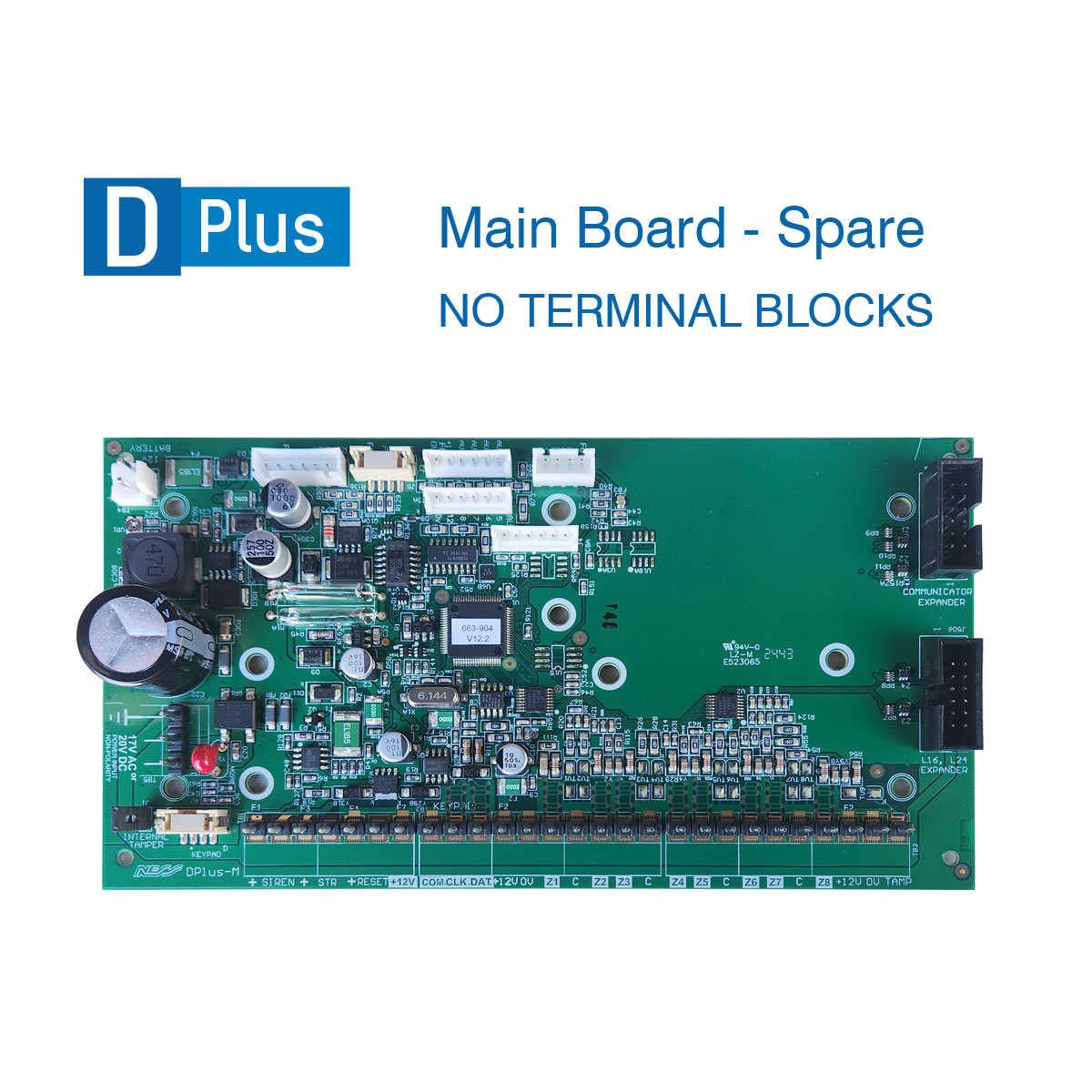

Ness DPlus-M main board supplied as a board only. Ideal for DPlus alarm systems.

Alternatively Known As: Ness DPlus replacement main board, DPlus alarm control board, DPlus-M PCB

Technical Specifications
  • Product Type: Replacement alarm control main board
  • Compatibility: Ness DPlus alarm systems
  • Hardwired Zones: 8
  • Wireless Zones: Up to 32 with optional Ness radio interface
  • Power Input: 17 VAC or 20 VDC, non-polarity
  • Backup Battery: 12 V sealed lead-acid battery, up to 7 Ah
  • Expansion: Supports optional local zone expander and communicator modules
  • Communications: RS232 serial port and optional 4G communicator connection
  • Terminal Blocks: Not included
  • Manufacture: Made in Australia by Ness
  • Dimensions (H x L x W): 20mm x 180mm x 120mm
  • Weight: 0.25 kg
Key Features
  • Replacement DPlus main board for swap-over installations
  • Supplied as board only without removable terminal blocks
  • Provides eight hardwired alarm zones
  • Supports up to 32 wireless zones with an optional Ness radio interface
  • Compatible with optional DPlus zone expanders and communication modules
  • Designed for use with existing DPlus alarm system housings and accessories
Professional Installation Requirements
  • Replacement and commissioning should be performed by a suitably qualified security alarm technician. Isolate all power before replacing the board and follow the Ness DPlus installation manual. Any associated mains-voltage wiring must be completed in accordance with applicable electrical regulations.
Applications
  • Replacement of a faulty or damaged Ness DPlus alarm control board
  • Service and refurbishment of existing Ness DPlus intrusion alarm systems
  • Domestic and commercial security alarm installations using the Ness DPlus platform
Standards & Compliance
  • AS/NZS 2201.1 – applicable to the design, installation, commissioning and maintenance of intruder alarm systems at client premises; Ness does not state product-specific certification for this replacement board
Environmental Benefits
  • Extends the service life of an existing DPlus alarm system and reduces replacement of the complete control panel
  • Replacement-board format can reduce electronic waste compared with replacing the full alarm enclosure and associated accessories
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness Corporation warranty terms and exclusions.

Available Now

Available through Ness and authorised Australian security and electrical distributors.
