DPlus-R16 Remote Expander with Magnet Standoffs Ness

BRAND: Ness
SKU: 106-984-MAG
$226.90 List price: $302.50
+ −
30 Days Return Electricians Unlock Trade Access
Ness DPlus-R16 remote expander features magnet standoffs for mounting. Ideal for expanding DPlus alarm systems.

Alternatively Known As: Ness DPlus R16 Remote Expander, DPlus 16-Zone Remote Expander, Ness Alarm Zone Expander

Technical Specifications
  • Expansion Capacity: 16 additional hardwired zones
  • System Capacity: Up to 32 hardwired zones when used with a DPlus base panel and L16 expander
  • Connection: 4-wire bus via Cat5/6 cabling
  • Maximum Bus Distance: Up to 100 m from the main panel
  • Power Input: 20 V DC plug pack recommended at the remote location
  • Backup Power: 12 V 7 Ah sealed lead-acid battery

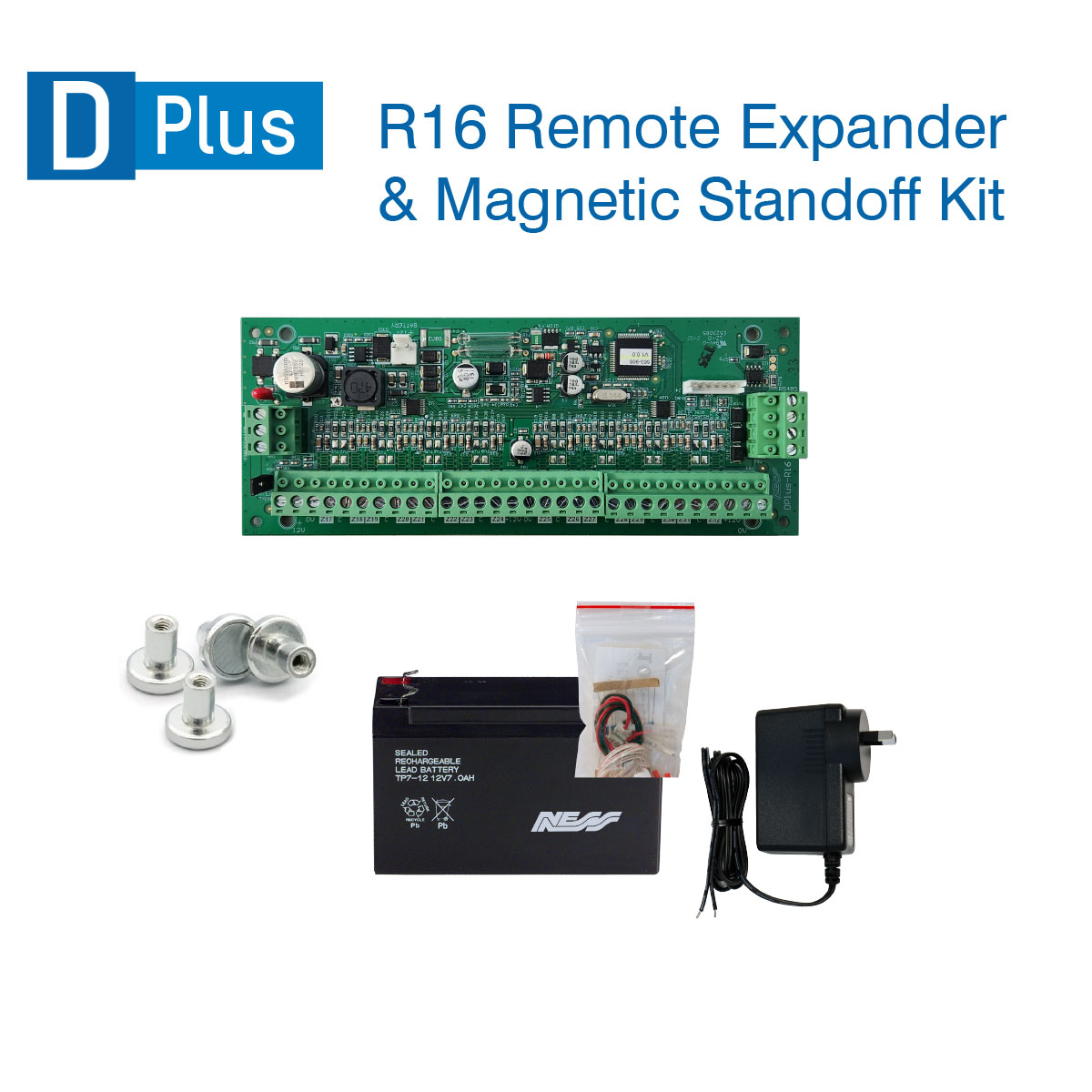

  • Included Accessories: Plug pack, backup battery and magnetic standoffs
  • Housing: No housing included; suitable for Ness 14-inch or 28-inch metal housings and other metal enclosures
  • Product Code: 106-984-MAG
  • Dimensions (H x L x W): 300mm x 235mm x 90mm
  • Weight: 3 kg
Key Features
  • Adds 16 hardwired alarm zones to a compatible Ness DPlus system
  • Supports decentralised zone expansion up to 100 m from the main panel
  • Connects to the DPlus base panel through a 4-wire bus
  • Magnetic standoffs simplify mounting inside suitable metal enclosures
  • Includes plug pack and 12 V 7 Ah backup battery
  • Designed for use with Ness 14-inch or 28-inch metal housings
  • Can operate from the bus where the available system power budget permits
Professional Installation Requirements
  • Installation, wiring and programming should be performed by a suitably qualified security-alarm technician in accordance with the manufacturer's installation instructions and applicable Australian requirements, including AS/NZS 2201.1 where relevant.
Applications
  • Expanding Ness DPlus intrusion alarm systems
  • Adding remote hardwired zones in larger residential properties
  • Commercial and light-industrial alarm installations
  • Distributed alarm-system layouts where sensors are located away from the main panel
  • Retrofitting DPlus expanders into compatible metal enclosures
Standards & Compliance
  • AS/NZS 2201.1:2007 – applicable system design, installation, commissioning and maintenance context for intruder alarm systems; product-specific conformity is not stated
  • Ness publishes RoHS compliance documentation for its products
Environmental Benefits
  • RoHS documentation supports reduced use of restricted hazardous substances
  • Distributed zone expansion can reduce the need to route all sensor wiring back to a single central panel
  • Replaceable modular electronics and a backup battery can extend system service life and reduce replacement waste
Warranty Information

Ness manufactured or supplied products are covered by Ness Corporation's standard 3-year warranty from the date of purchase, unless otherwise specified. Australian Consumer Law rights also apply.

Available Now

Available through Ness Corporation and authorised Australian security-system distributors.
