DPlus-R16 Remote Expander with Plastic Standoffs Ness
Ness DPlus-R16 remote expander features plastic standoffs for mounting. Ideal for expanding DPlus alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness DPlus R16 Remote Expander, DPlus 16 Zone Remote Expander, Ness 106-984-MET
Technical Specifications
- Product Type: 16-zone hardwired remote expander
- System Compatibility: Ness DPlus alarm control panel platform
- Zone Capacity: Additional 16 hardwired zones, zones 17–32
- Communication: 4-wire bus connection via Cat5/6 cable
- Maximum Bus Distance: Up to 100 m from the base panel
- Power Input: 20 V DC plug pack recommended
- Backup Battery: 12 V 7 Ah sealed lead-acid battery supported

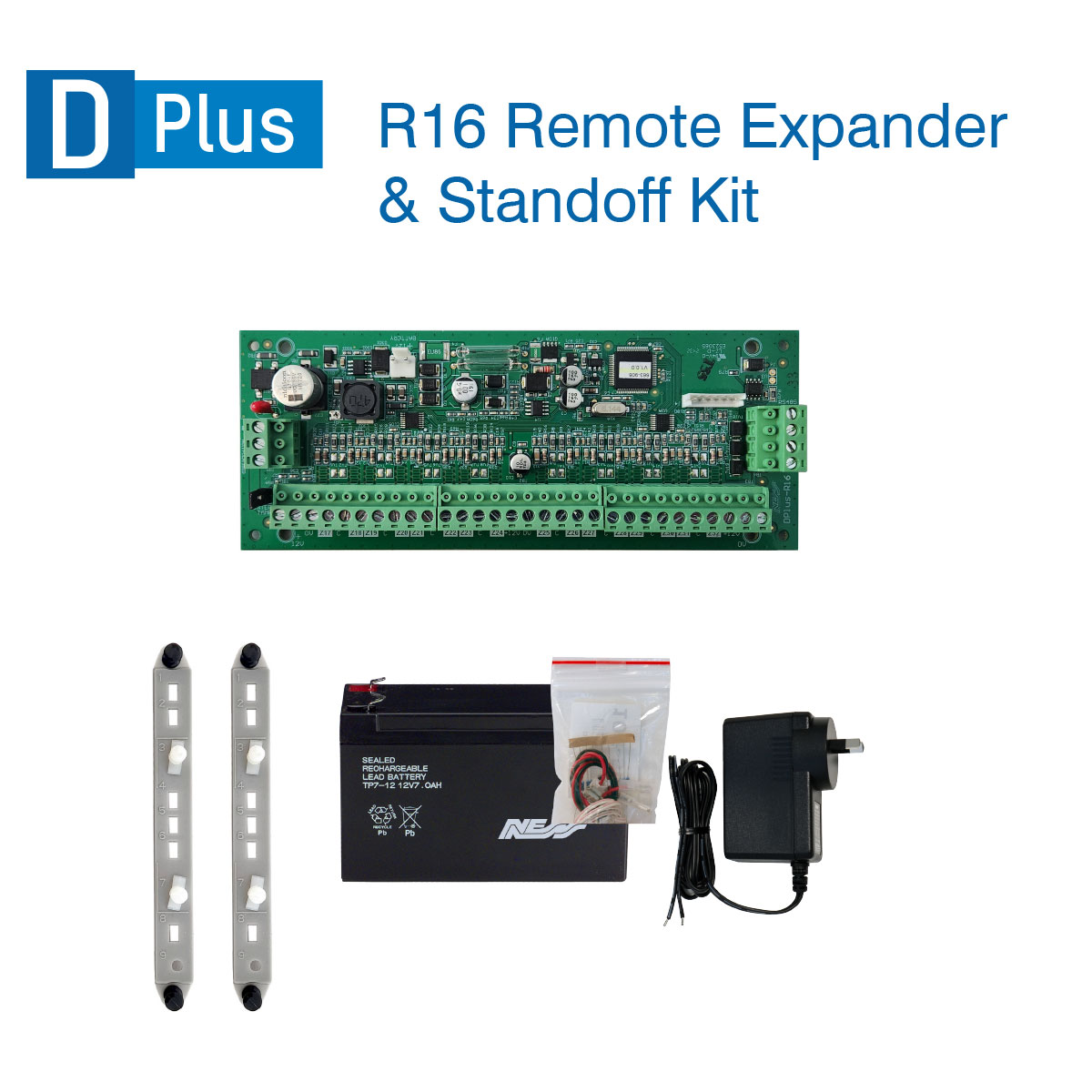

- Included Accessories: Plastic standoffs, plug pack and 12 V 7 Ah battery
- Housing Compatibility: Ness 14-inch or 28-inch metal housings
- Manufacture: Made in Australia
- Dimensions (H x L x W): 300mm x 235mm x 20mm
- Weight: 2.5 kg
Key Features
- Adds 16 hardwired zones to a compatible Ness DPlus system
- Supports decentralised alarm system layouts without routing all zone wiring to the main panel
- Connects to the DPlus base panel using a 4-wire Cat5/6 bus
- Suitable for remote installation up to 100 m from the base panel
- Plastic standoffs allow installation inside compatible metal enclosures
- Includes plug pack and backup battery for remote-site operation
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security alarm technician. Follow the Ness DPlus installation instructions and applicable electrical and security installation requirements, including correct connection of the low-voltage power supply, battery and 4-wire bus.
Applications
- Expanding Ness DPlus residential alarm systems
- Expanding commercial and small-business intruder alarm systems
- Remote hardwired zone installations
- Decentralised security alarm panel layouts
- Installation in Ness 14-inch or 28-inch metal housings
Standards & Compliance
- Applicable system installation standard: AS/NZS 2201.1:2007, Intruder alarm systems—Client’s premises—Design, installation, commissioning and maintenance
Environmental Benefits
- RoHS compliance is supported by Ness product compliance documentation, helping restrict hazardous substances in electronic components
- Low-voltage operation can support efficient standby operation within an alarm system
- Replaceable modular electronics and battery can extend system service life and reduce unnecessary equipment replacement
- Plastic and electronic components should be separated and recycled through appropriate e-waste channels at end of life
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian security equipment distributors.
