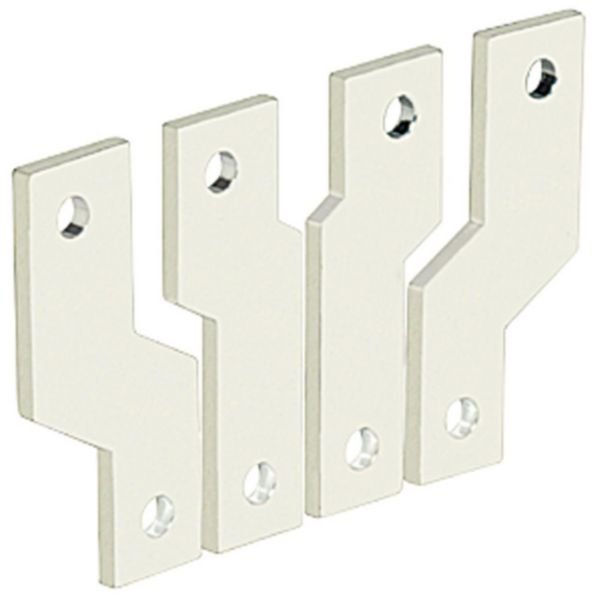

DPX/DPX-IS 630 Spreaders | 4 Poles Configuration | On-Load Circuit Breaking | Integrated Padlock | @Each of 1 | by Legrand
DPX/DPX-IS 630 Spreaders are designed for isolating switches rated 400 to 630 A, featuring a 4 poles configuration and supporting on-load circuit breaking with visible isolation. Ideal for electrical switchboards and modular circuit breaker installations, these spreaders enhance safety with an integrated padlock in the handle and come with terminal shields and cage terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DPX/DPX-IS 630 Spreaders | 4 Poles Configuration | On-Load Circuit Breaking | Integrated Padlock | @Each of 1 | by Legrand
Brand: Legrand
SKU: 026249
Alternatively Known As: DPX 630 Spreaders, DPX-IS 630 Rear Terminal Spreaders, 4P Electrical Spreaders, Legrand DPX Spreaders
Technical Specifications
- Suitable for DPX - IS 630 isolating switches rated 400 to 630 A
- 4 poles configuration
- Supports on-load circuit breaking with visible isolation
- Integrated padlock in handle for secure operation
- Includes terminal shields and cage terminals
- Category of use AC 23 A
- Conforms to IEC 60947-3
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Designed for DPX - IS 630 isolating switches with 400 to 630 A rating
- Supports on-load circuit breaking with visible isolation and positive contact action
- Integrated padlock in the handle for safety
- Supplied with terminal shields and cage terminals
- Conforms to IEC 60947-3 standards
- Category of use AC 23 A
- Accepts electrical auxiliaries
- Can be mounted on plate in XL³ enclosures
- Set of 4 poles for incoming or outgoing spreaders
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with switchboard and circuit breaker systems to ensure compliance with safety standards.
Applications
- Electrical switchboards and power cabinets
- Modular switches and circuit breakers installations
- Industrial and commercial electrical distribution systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical system safety reducing risk of faults and energy loss
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand Spreaders for DPX/DPX-IS 630 rear terminals 4P are available for immediate purchase, ideal for electrical switchboards and modular circuit breaker applications.
