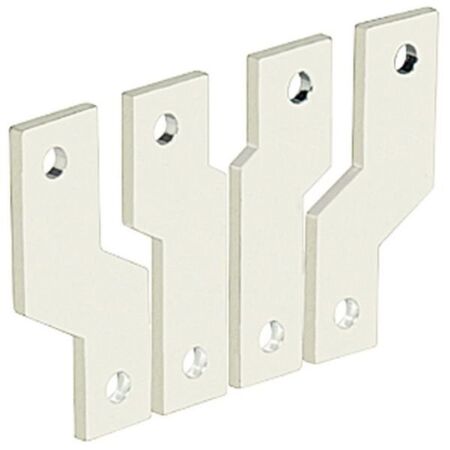

DPX DPX-IS 630 Spreaders 4 Poles Configuration On-Load Circuit Breaking Legrand

BRAND: Legrand
SKU: 26249
$450.70 List price: $561.70
1 EA ($450.70 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
DPX DPX-IS 630 Spreaders are designed for isolating switches rated 400 to 630 A, featuring a 4 poles configuration and supporting on-load circuit breaking with
Technical Specifications
  • Suitable for DPX - IS 630 isolating switches rated 400 to 630 A
  • 4 poles configuration
  • Supports on-load circuit breaking with visible isolation
  • Integrated padlock in handle for secure operation
  • Includes terminal shields and cage terminals
  • Category of use AC 23 A
  • Conforms to IEC 60947-3
  • Dimensions (H x L x W): 100mm x 200mm x 150mm
  • Weight: 1.5 kg
Key Features
  • Designed for DPX - IS 630 isolating switches with 400 to 630 A rating
  • Supports on-load circuit breaking with visible isolation and positive contact action
  • Integrated padlock in the handle for safety
  • Supplied with terminal shields and cage terminals
  • Conforms to IEC 60947-3 standards
  • Category of use AC 23 A
  • Accepts electrical auxiliaries
  • Can be mounted on plate in XL³ enclosures
  • Set of 4 poles for incoming or outgoing spreaders
Professional Installation Requirements
  • Installation should be performed by a qualified electrician familiar with switchboard and circuit breaker systems to ensure compliance with safety standards.
Applications
  • Electrical switchboards and power cabinets
  • Modular switches and circuit breakers installations
  • Industrial and commercial electrical distribution systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical system safety reducing risk of faults and energy loss
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand Spreaders for DPX/DPX-IS 630 rear terminals 4P are available for immediate purchase, ideal for electrical switchboards and modular circuit breaker applications.

LE04940AB (LE04940AB.pdf, 1,933 Kb) [Download]

Technical Guide: Coordination between protection devices (EXB15015_TG_Coordination_EN.pdf, 25,131 Kb) [Download]

ex223001_0254 (ex223001_0254.pdf, 34 Kb) [Download]

ex223001_0135 (ex223001_0135.pdf, 96 Kb) [Download]

ex223001_0180 (ex223001_0180.pdf, 75 Kb) [Download]

ex223001_0251 (ex223001_0251.pdf, 51 Kb) [Download]

ex223001_0250 (ex223001_0250.pdf, 70 Kb) [Download]
